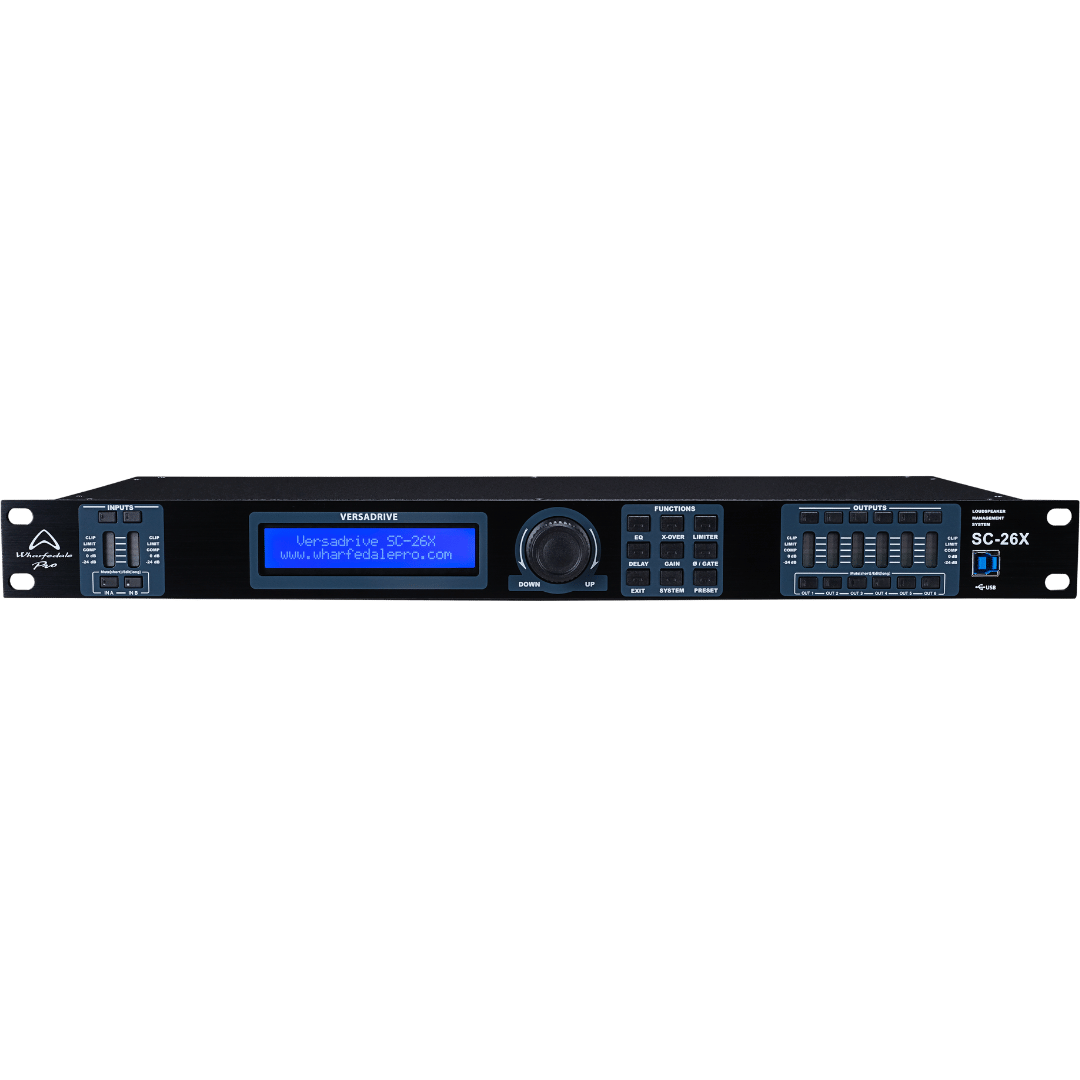

VERSADRIVE SC-26X is a 2-in / 6-out signal processor from our VERSADRIVE Series, delivering advanced system control, protection and tuning for live sound and installed audio systems.
Building on the legacy of the long-serving SC-26, the SC-26X introduces key upgrades that enhance performance and usability while maintaining its role as the compact entry point into the VERSADRIVE platform. Equipped with 24-bit / 96 kHz AD/DA converters, it ensures pristine signal integrity and precise processing throughout the entire signal chain.
Each input channel features dual-band Dynamic EQ alongside flexible routing options, while the output section now includes RMS compressors and peak limiters — providing both long-term system protection and fast transient control. This ensures balanced tonal shaping and reliable safeguarding of loudspeakers in demanding environments.
SC-26X offers full remote control via PC using USB, Ethernet and RS485 connections, enabling seamless integration into both portable and fixed installations. Intuitive software provides deep editing capabilities for crossover alignment, EQ, delay, compression and limiting.
With enhanced protection, high-resolution processing and versatile connectivity, VERSADRIVE SC-26X is built to optimise, manage and protect your sound system with confidence.
| Specification | Value |
|---|---|
| Inputs | 2 |
| Outputs | 6 |
| Input Type | Analog |
| Input Connections | XLR |
| Output Connections | XLR |
| Input Impedance | Balanced : 20 KΩ |
| Output Impedance | Balanced : 100 KΩ |
| Input Effects | Gain, Mute, Link, High-pass filter, Low-pass filter, Noise Gate, 8-band parametric EQ, 31 band graphic EQ, Phase, Delay |
| Output Effects | Crossover, 5-band parametric EQ, Gain, Mute, Compressor / Limiter, Phase, Delay , Linking |
| Input Range | ≤ +16.3 dBu |
| Frequency Response | 19.7 Hz – 20 KHz (+/- 0.5 dB) |
| PC Port | Yes |
| CMRR | >70 dB (1 KHz) |
| SNR | >104 dB |
| THD+N | < 0.01% (Output = 0 dBu / 1 KHz) |
| Channel Separation | > 100 dB (1 KHz) |
| Processor | 32-bit |
| AD/DA Converter | 24-bit, 96 KHz |
| Software Included | Yes |
| Ethernet | Yes |
| Impedance | Balanced : 100 KΩ |
| Display Type | 2 x 24 LCD backlight display. 5-band LED display. Mute / Editing status |
| Password Protected | Yes |
| Main Power | AC 110 V / 220 V 50 / 60 Hz |
| Included Accessory | Power Cable, User Manual |
| Unpacked - Height (mm) | 44 |
| Unpacked - Width Front (mm) | 482 |
| Unpacked - Width Rear (mm) | 482 |
| Unpacked - Depth (mm) | 190 |
| Packed - Height (mm) | 98 |
| Packed - Width Front (mm) | 562 |
| Packed - Width Rear (mm) | 562 |
| Packed - Depth (mm) | 296 |
| Weight - Nett (kg) | 3.6 |
| Weight - Gross (kg) | 4.5 |
