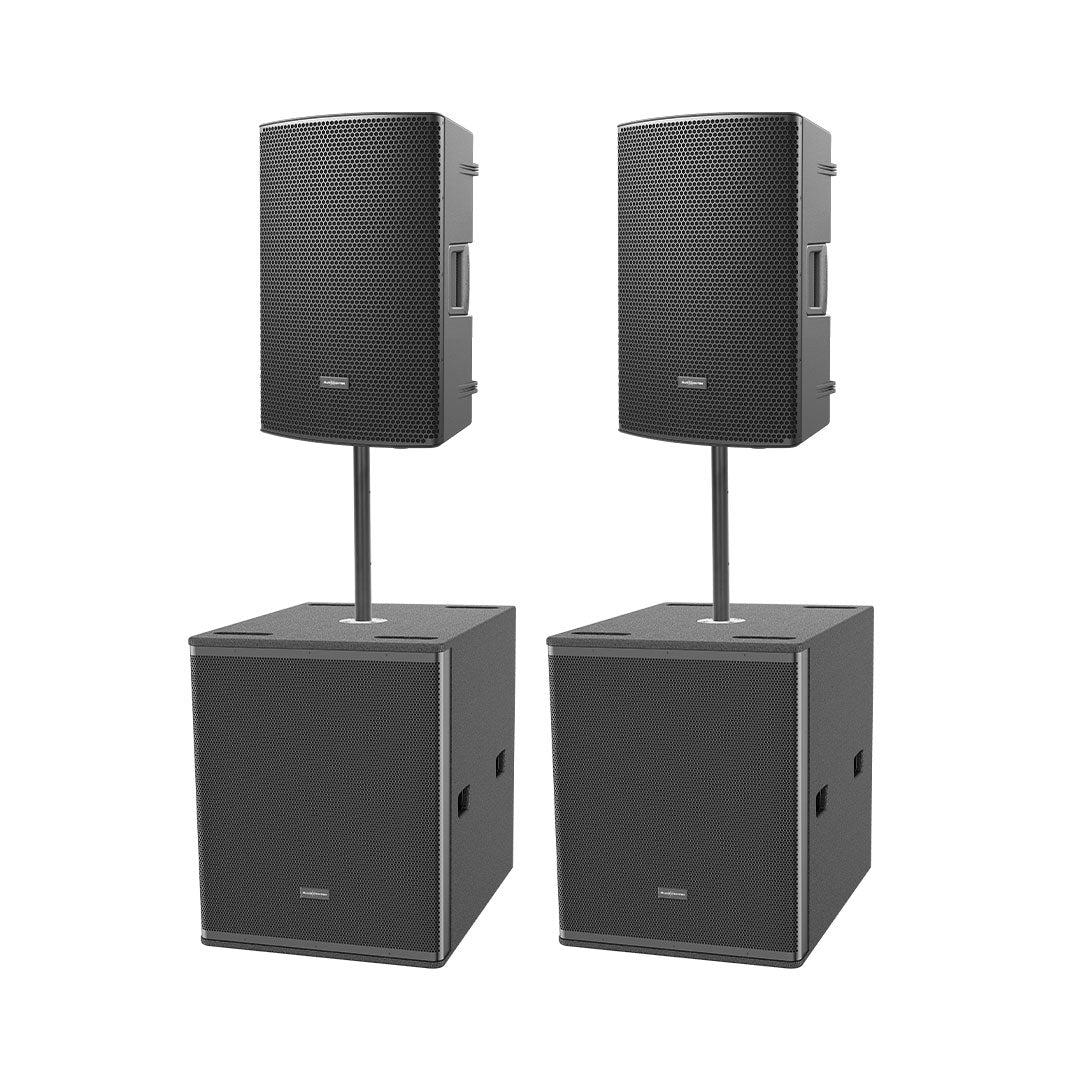

The system consists of
CA Jam Pack 12
• 2 X 12” High-Performance Portable Active Speakers
• 2 X Speaker Tripod Stands (Converts To A Single Pole, With M20 Thread)
High-Performance Portable Active Speaker Combo
The 12” High-Performance Portable Active Speaker combos are equipped with Bluetooth and TWS (True Wireless Stereo) technology, an integrated Class D amplifier, and a DSP module, improving the audio performance of the system significantly. This provides users with the convenience of wireless connectivity.
Simple setup
With a stylish and attractive design, the CA Jam Pack 12 can blend seamlessly with various decorative styles and is suitable for use in multi-purpose rooms.
THEATRES
BARS
RESTAURANTS
CONFERENCE ROOM
AUDITORIUMS
The CA Jam Pack 12 and CA Jam Pack 15 are compatible with each other.
AUDIOCENTER CA Jam Pack 12
| Type | Single 12” Full Range DSP-Controlled |
| Frequency Response (-10dB) | 55 Hz - 20 kHz |
| Horizontal Coverage (Symmetrical | 90 ° |
| Vertical Coverage | 60 ° |
| Maximum Calculated SPL/1m | |
| Continuous | 122 dB |
| Program | 125 dB |
| Peak | 128 dB |
| Drivers | |
| HF | Customised Ferrite Driver, 1.4" Voice Coil, 1.0" Exit |
| LF | 12" Woofer, 2.0" Voice Coil |
| DSP | |
| Processor | 48 kHz Signal Sampling Frequency |
| Presets | Music; Flat; Speech |
| Amplifier | |
| Amplifier | Class D |
| Power (RMS Standard) | 800 W |
| Peak Power | 1600 W |
| Frequency Response (1 W 8, 2 ch) | 20 Hz - 20 kHz (± 0.5 dB) |
| Intermodulation Distortion | ≤0.05% |
| Total harmonic distortion | ≤0.05% |
| Cooling | Cooling with fan |
| Protection | |
| Short Circuit Protection | Yes |
| Output Overload Protection | - |
| Soft Startup Protection | Yes |
| Over-Temperature Protection | Yes |
| Undervoltage Protection | - |
| Signal Input Connector | 2 X Female XLR (Mono Jack 6.35); 1 X AUX Input; 1 X Wireless Bluetooth |
| Signal Output Connector | Male XLR Line / MIX Output |
| Power Input | IEC Power Connector |
| Working Voltage | 220-240 V ~ (±0%, 50/60 Hz) |
| Power Consumption (1/8 Output Power) | 55 W |
| Cabinet | |
| Material | New PP Composite Material |
| Painting | Plastic Cabinet |
| Colour | Black |
| Grille | Iron Mesh |
| Handle | 1 X Top; 1 X Side |
| Monitor Angle | Symmetrical 45 ° Monitor Angle |
| Hanging Hardware | M8 Screw |
| Pole Mount | Bass Hole 35 mm (Diameter) |
| Selectable Accessory | Wall Mount Bracket; Protective Bag; Adjustable Coupling Bar |
| Speaker Dimensions (W X H X D) | 381 X 582 X 343 mm |
| Carton Dimensions (W X H X D) | 426 X 665 X 401 mm |
| Net Weight | 14 kg |
| Gross Weight | 17 kg |
Package includes
2 x 12″ High-Performance Portable Active Speakers
2 x Speaker TRIPOD Stand, that converts into a single pole with M20 thread for Bass Bin.
2 X Ma118
18″ Compact Subwoofer, 2000w Bass
NEW – AUDIOCENTER MA118 The MA118 is a powered DSP controlled 18” compact subwoofer, ideal for mobile and installation purposes with an m20 threaded top hat for sturdy mid high mounting. There are three presets for low pass filtering for the user to choose from 80Hz, 100Hz and 120Hz. Balanced XLR in and output will insure clean signal. Built in limiting and soft start for protection. Specifications Type: Active DSP-controlled Compact Sub-woofer Frequency Response (-6dB anechoic chamber): 32Hz-150Hz Maximum Calculated: SPL/1M(Continuous/Peak) 128dB/134dB LF Driver: Customized driver, 4”voice coil Amplifier Amplifier Circuitry: Class D Power (Peak): 2000W Frequency Response(1W 8Ω 2 ch): 20Hz-20KHz(±1dB) Intermodulation Distortion: <0.05% Total Harmonic Distortion: <0.05% Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection Cooling System: Cooling with fans, air convection DSP Processor 96KHz signal sampling frequency, 24bit precision Presets 80Hz, 100Hz, 120Hz Crossover Controlled by DSP Output/Input Signal Input: 1× female XLR Signal Output: 1× male XLR Power Input: 3 pin plug AC Power Operating Range: 100V~130V or 220V~240V (±10%，50/60Hz） Cabinet Cabinet Material: CNC made of excellent wood Cabinet Colour: Black is standard and default colour. Consult with Audiocenter sales team for other customized colours Pole Mount: M20 base Φ35mm Dimensions (W×H×D): 510x632x695mm Net Weight: 45.0Kg Pairs perfectly with MA12+ and MA15+
3-way Active Combo System
