High-Performance Portable Active Speaker Combo
The 15” High-Performance Portable Active Speaker combos are equipped with Bluetooth and TWS (True Wireless Stereo) technology, an integrated Class D amplifier, and a DSP module, improving the audio performance of the system significantly. This provides users with the convenience of wireless connectivity.
Simple setup
With a stylish and attractive design, the CA Jam Pack 15 can blend seamlessly with various decorative styles and is suitable for use in multi-purpose rooms.
THEARTRES
BARS
RESTAURANTS
CONFERENCE ROOM
AUDITORIUMS
The CA Jam Pack 12 and CA Jam Pack 15 are compatible with each other.

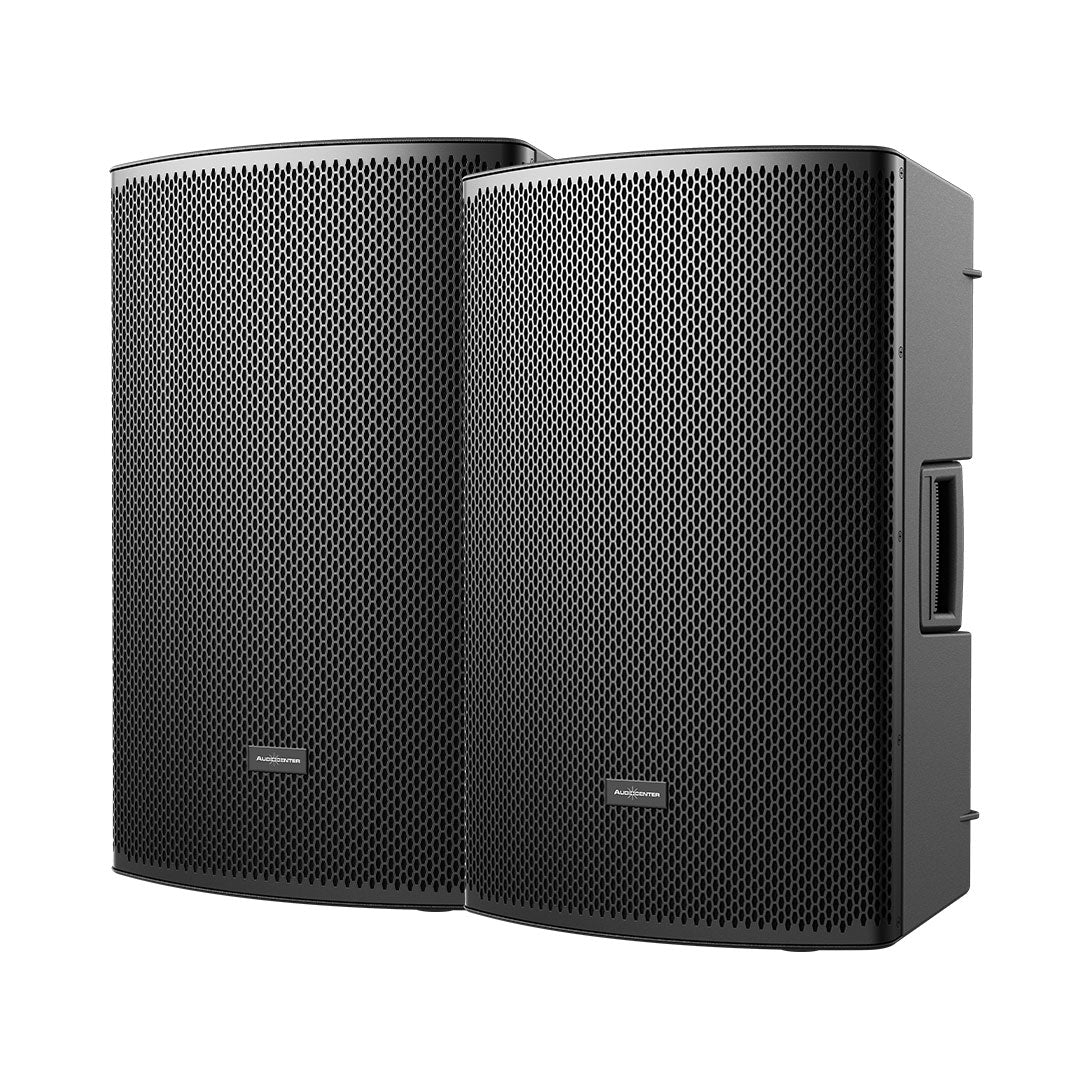

AUDIOCENTER CA Jam Pack 15
Package includes
2 x 15″ High-Performance Portable Active Speakers
2 x Speaker TRIPOD Stand, that converts into a single pole with M20 thread for Bass Bin.
| Type |
Single 15” Full Range DSP-Controlled |
| Frequency Response (-10dB) |
50 Hz - 20 kHz |
| Horizontal Coverage (Symmetrical |
90 ° |
| Vertical Coverage |
60 ° |
| Maximum Calculated SPL/1m |
|
| Continuous |
124 dB |
| Program |
127 dB |
| Peak |
130 dB |
| Drivers |
|
| HF |
Customised Ferrite Driver, 1.4" Voice Coil, 1.0" Exit |
| LF |
15" Woofer, 2.0" Voice Coil |
| DSP |
|
| Processor |
48 kHz Signal Sampling Frequency |
| Presets |
Music; Flat; Speech |
| Amplifier |
|
| Amplifier |
Class D |
| Power (RMS Standard) |
800 W |
| Peak Power |
1600 W |
| Frequency Response (1 W 8, 2 ch) |
20 Hz - 20 kHz (± 0.5 dB) |
| Intermodulation Distortion |
≤0.05% |
| Total harmonic distortion |
≤0.05% |
| Cooling |
Cooling with fan |
| Protection |
|
| Short Circuit Protection |
Yes |
| Output Overload Protection |
- |
| Soft Startup Protection |
Yes |
| Over-Temperature Protection |
Yes |
| Undervoltage Protection |
- |
| Signal Input Connector |
2 X Female XLR (Mono Jack 6.35); 1 X AUX Input; 1 X Wireless Bluetooth |
| Signal Output Connector |
Male XLR Line / MIX Output |
| Power Input |
IEC Power Connector |
| Working Voltage |
220-240 V ~ (±0%, 50/60 Hz) |
| Power Consumption (1/8 Output Power) |
64 W |
| Cabinet |
|
| Material |
New PP Composite Material |
| Painting |
Plastic Cabinet |
| Colour |
Black |
| Grille |
Iron Mesh |
| Handle |
1 X Top; 1 X Side |
| Monitor Angle |
Symmetrical 45 ° Monitor Angle |
| Hanging Hardware |
M8 Screw |
| Pole Mount |
Bass Hole 35 mm (Diameter) |
| Selectable Accessory |
Wall Mount Bracket; Protective Bag; Adjustable Coupling Bar |
| Speaker Dimensions (W X H X D) |
432 X 661 X 387 mm |
| Carton Dimensions (W X H X D) |
476 X 743 X 445 mm |
| Net Weight |
17 kg |
| Gross Weight |
22 kg |
