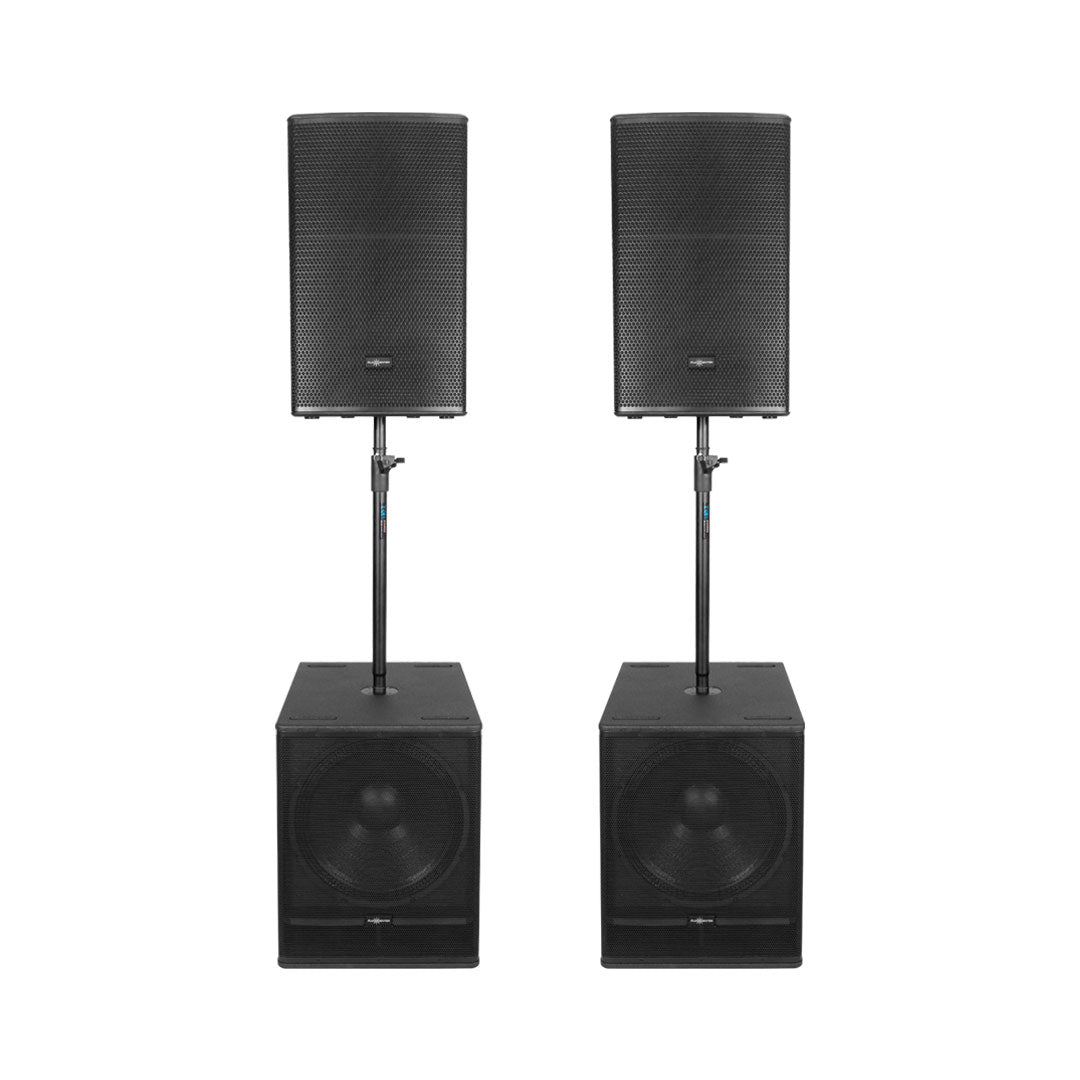

2300W RMS, 3-way active combo system
Easy set-up & strike-down
Compact, ideal for all mobile applications
Indoor audience of 300 people
This Bundle Includes:
2 x SA315+ – Full-range 450W
2 x MA118 – Single 18″, 700W Sub-bass
Cabling and poles included
Audiocenter SA315+
The SA315+ speaker is a versatile all-in-one solution, supporting both XLR and 6.35mm jack inputs for microphone and line-level balanced signals, as well as featuring an AUX input and wireless Bluetooth connectivity for easy hookup with various portable audio sources. Independent gain control and master volume adjustment allow users to tweak the sound quality with ease. The internal mixing and balanced output design are perfect for setting up multi-speaker systems.
SA315+ offers flexible installation options, with both ceiling suspension and pole mount, adapting to various environments. With its exceptional sound quality and user-friendly operations, the SA315+ meets the demands of both professional and home users for a high-quality audio experience.
Specifications
| Type | Active DSP-controlled full range loudspeaker |
| Frequency Response (-10dB) |
36Hz-20kHz |
| Horizontal Coverage | 80° |
| Vertical Coverage | 50° |
| Maximum Calculated SPL/1M (Continuous/Peak) |
128dB/134dB |
| HF Driver | Customized driver, 1.75” voice coil and 1.0”exit |
| LF Driver | Customized 15” driver, 3.0” voice coil |
| DSP | Processor: 48kHz signal sampling frequency |
| Presets: MUSIC, FLAT, SPEECH, W/SUB | |
| Amplifier | Amplifier Circuitry: Class D |
| Power (RMS standards): 1000W | |
| Peak power: 2000W | |
| Frequency Response (1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Cooling System | Air convection |
| Protection | DC protection |
| Short circuit protection | |
| Overheat protection | |
| Input overload protection | |
| Output overload protection | |
| Input overload protection | |
| Overvoltage protection | |
| Undervoltage protection | |
| Signal Input | Female XLR(Mono jack 6.35), 3.5mm Jack Input, Wireless bluetooth |
| Signal Output | Male XLR Balanced Output |
| Power Input | IEC power connector |
| Working Voltage | 100-240V~ (±10%,50/60Hz） |
| Power consumption (1/8 output power) |
64W |
| Cabinet | Material: CNC machined plywood |
| Coating: Durable Polyurea Coating | |
| Colour: Black is the default colour. Contact Audiocenter for customisation |
|
| Grille | Iron mesh |
| Handles | 2 side |
| Monitor Angle | Symmetrical 45° monitoring Angle |
| Hanging Hardwares | M8 screw |
| Pole Mount | Base hole Φ35 mm |
| Speaker Dimension (W×H×D) |
446x738x458 mm |
| Carton Dimension (W×H×D) |
518×805×531 mm |
| Net Weight | 24.0 kg |
| Shipping Weight | 27.5 kg |
