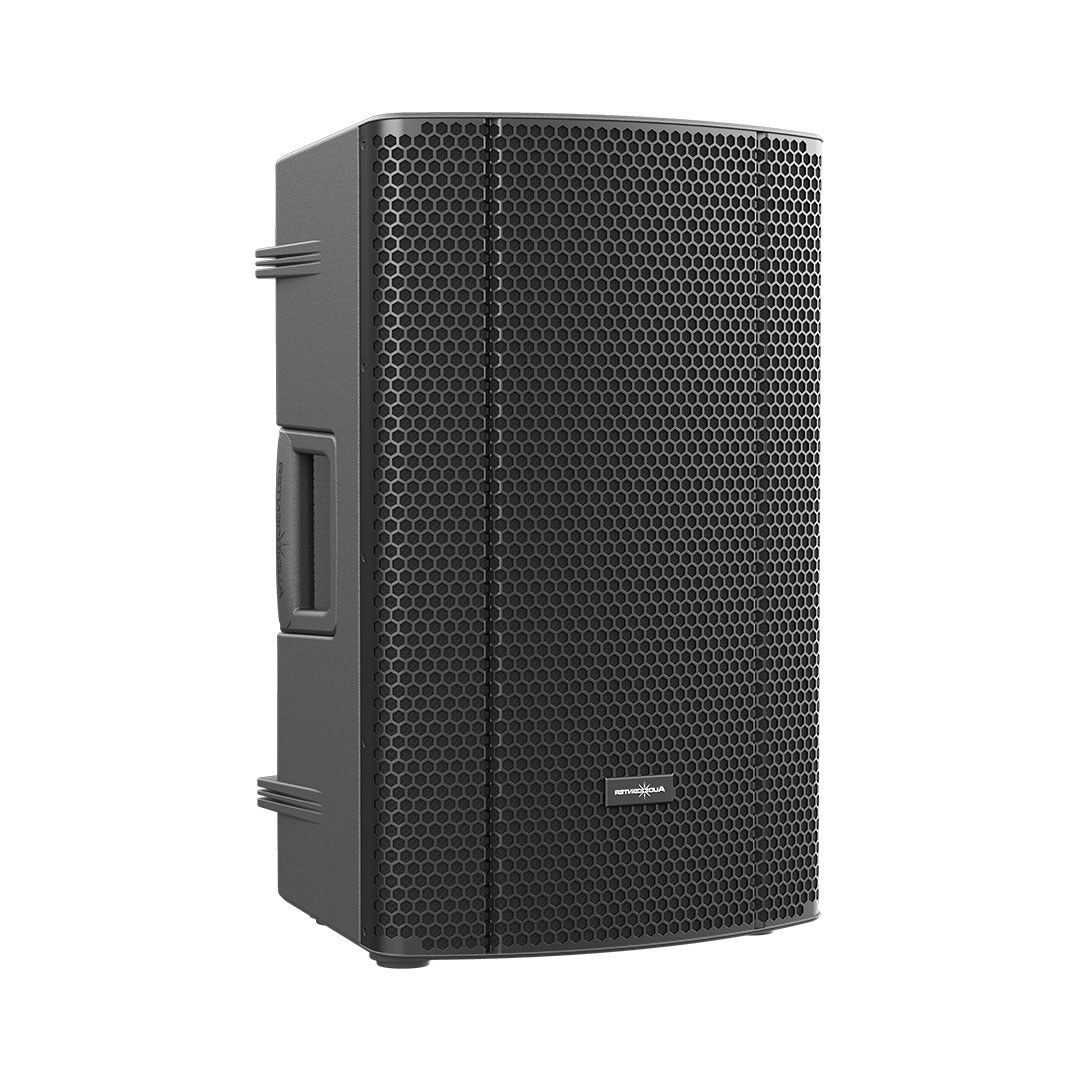

Portable Active DSP-controlled Loudspeaker
The MA12+ is crafted from a newly developed polypropylene composite material, custom-molded to deliver a stylish appearance, superior performance, and lightweight usability.
Overview
The MA12+ is crafted from a newly developed polypropylene composite material, custom-molded to deliver a stylish appearance, superior performance, and lightweight usability. Integrated with BrainCore™ technology, the MA12+ achieves high integration of the input signal, power amplifier, and DSP module. This optimizes audio energy for maximum efficiency, ensuring the product is both stable and reliable.
Equipped with Bluetooth and TWS (True Wireless Stereo) technology, the MA12+ enables convenient stereo wireless pairing, allowing users to enjoy stable, high – quality sound anytime, anywhere.
The MA12+ can be mounted on a tripod or suspended for use as a main PA speaker and is also suitable for stage monitoring.
Specifications
|
Type |
Portable Active DSP-controlled Loudspeaker |
|
Frequency Response(-10dB) |
50Hz-20kHz |
|
Horizontal Coverage |
90° |
|
Vertical Coverage |
60° |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
125dB/ 131dB |
|
HF Driver |
Customized driver, 1.75” voice coil and 1.0”exit |
|
LF Driver |
Customized 12” driver, 2.5” voice coil |
|
DSP |
|
|
Processor |
48kHz signal sampling frequency |
|
Presets |
MUSIC，FLAT，SPEECH，W/SUB |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power (RMS standards) |
800W |
|
Peak Power |
1600W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Cooling System |
Cooling with fans, air convection |
|
Protection |
DC protection, short circuit protection,overheat protection, input overload protection, output overload protection,soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input |
Female XLR(Mono jack 6.35),3.5mm Jack Input, Wireless bluetooth |
|
Signal Output |
Male XLR mixed output or balanced output |
|
Power Input |
IEC power connector |
|
Working Voltage |
100-240V~ (±10%，50/60Hz） |
|
Power consumption (1/8 output power) |
55W |
|
CABINET |
|
|
Cabinet Material |
New polypropylene composite material |
|
Cabinet Color |
Black is the default color |
|
Grille |
Iron mesh |
|
Handles |
1 side,1 top |
|
Monitor Angle |
Symmetrical 45° monitor angle |
|
Hanging Hardwares |
M8 screw |
|
Pole Mount |
Base hole Φ35mm |
|
Speaker Dimension (W×H×D) |
381×582×343mm |
|
Carton Dimension (W×H×D) |
426x665x401mm |
|
Net Weight |
16.0kg |
|
Shipping Weight |
19.0kg |
Overview
The MA12+ is crafted from a newly developed polypropylene composite material, custom-molded to deliver a stylish appearance, superior performance, and lightweight usability. Integrated with BrainCore™ technology, the MA12+ achieves high integration of the input signal, power amplifier, and DSP module. This optimizes audio energy for maximum efficiency, ensuring the product is both stable and reliable.
Equipped with Bluetooth and TWS (True Wireless Stereo) technology, the MA12+ enables convenient stereo wireless pairing, allowing users to enjoy stable, high – quality sound anytime, anywhere.
The MA12+ can be mounted on a tripod or suspended for use as a main PA speaker and is also suitable for stage monitoring.
Specifications
|
Type |
Portable Active DSP-controlled Loudspeaker |
|
Frequency Response(-10dB) |
50Hz-20kHz |
|
Horizontal Coverage |
90° |
|
Vertical Coverage |
60° |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
125dB/ 131dB |
|
HF Driver |
Customized driver, 1.75” voice coil and 1.0”exit |
|
LF Driver |
Customized 12” driver, 2.5” voice coil |
|
DSP |
|
|
Processor |
48kHz signal sampling frequency |
|
Presets |
MUSIC，FLAT，SPEECH，W/SUB |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power (RMS standards) |
800W |
|
Peak Power |
1600W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Cooling System |
Cooling with fans, air convection |
|
Protection |
DC protection, short circuit protection,overheat protection, input overload protection, output overload protection,soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input |
Female XLR(Mono jack 6.35),3.5mm Jack Input, Wireless bluetooth |
|
Signal Output |
Male XLR mixed output or balanced output |
|
Power Input |
IEC power connector |
|
Working Voltage |
100-240V~ (±10%，50/60Hz） |
|
Power consumption (1/8 output power) |
55W |
|
CABINET |
|
|
Cabinet Material |
New polypropylene composite material |
|
Cabinet Color |
Black is the default color |
|
Grille |
Iron mesh |
|
Handles |
1 side,1 top |
|
Monitor Angle |
Symmetrical 45° monitor angle |
|
Hanging Hardwares |
M8 screw |
|
Pole Mount |
Base hole Φ35mm |
|
Speaker Dimension (W×H×D) |
381×582×343mm |
|
Carton Dimension (W×H×D) |
426x665x401mm |
|
Net Weight |
16.0kg |
|
Shipping Weight |
19.0kg |
