Ultra-Low Noise Design 32-Input 4-Bus Studio/Live Mixer with XENYX Mic Preamplifiers, British EQ and Dual Multi-FX Processor
Product Features

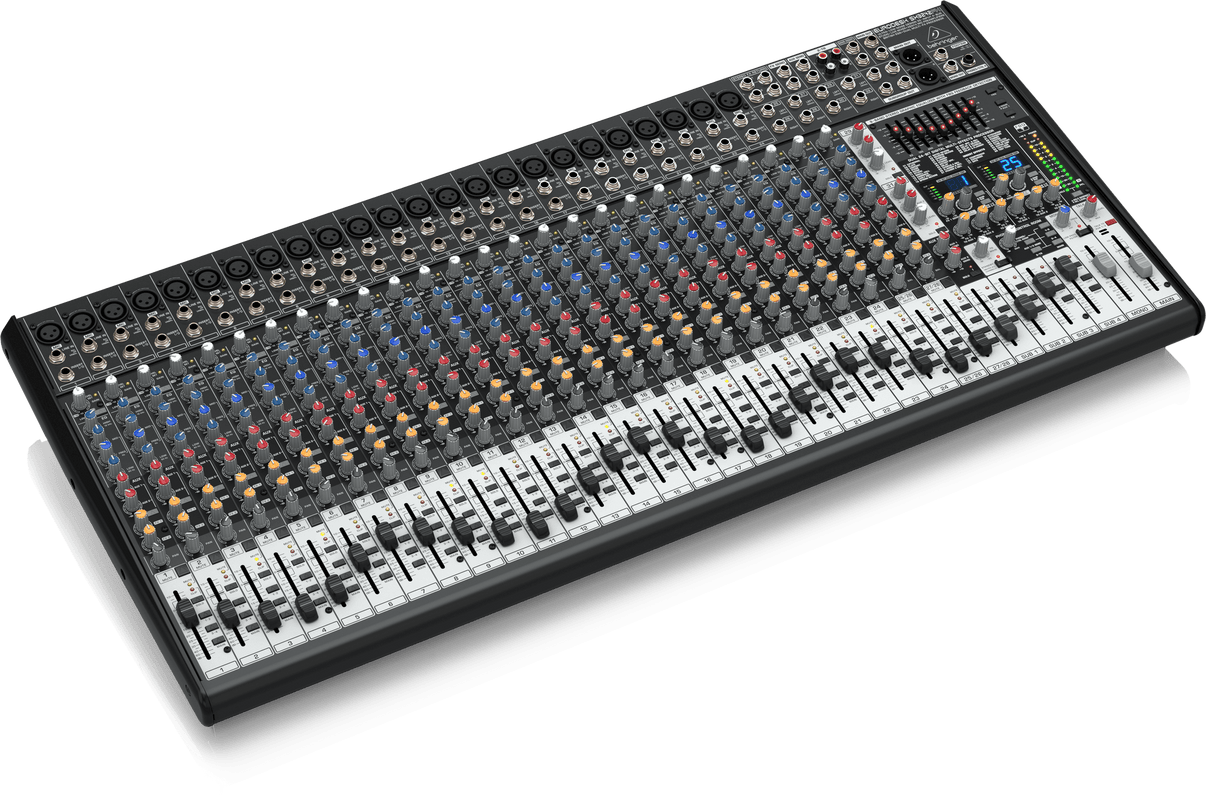

EURODESK SX3242FX
The 32-Input, 4-Bus EURODESK SX3242FX allows you to effortlessly achieve premium-quality sound, thanks to 24 of our studio-grade XENYX Mic Preamps, 2 full stereo channels with 4-band EQ, plus 2 additional sets of stereo inputs channels with Level and Aux controls.
All mono channels feature our ultra-musical, 3-band “British” channel EQs, complete with a semi-parametric mid band for the ultimate in sound sculpting. Add to this not one, but two of our 24-bit dual-engine stereo FX processors with 99 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects – and the SX3242FX becomes an incredibly versatile mixer for your recording projects and live performances.
Sonically Superior Mic Preamps
The SX3242FX features our legendary, high headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology – and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the SX3242FX provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren’t looking.
Sublimely Musical British EQ
The British consoles of the 1960s and ‘70s changed the sound of rock and roll – without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our XENYX mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.
Specification
Mono Inputs
| Microphone inputs (XENYX Mic preamp) | |
| Type |
XLR connector, electronically balanced, discrete input circuit |
| Mic E.I.N. (20 Hz - 20 kHz) | |
| @ 0 Ω source resistance |
-134 dB / 135.7 dB A-weighted |
| @ 50 Ω source resistance |
-131 dB / 133.3 dB A-weighted |
| @ 150 Ω source resistance |
-129 dB / 130.5 dB A-weighted |
Frequency Response
| <10 Hz - 160 kHz |
-1 dB |
| <10 Hz - 200 kHz |
-3 dB |
| Gain range |
+10 dB to +60 dB |
| Max. input level |
+12 dBu @ +10 dB GAIN |
| Impedance |
approx. 2.6 kΩ balanced |
| Signal-to-noise ratio |
110 dB / 112 dB A-weighted (0 dBu In @ +22 dB GAIN) |
| Distortion (THD + N) |
0.005 % / 0.004 % A-weighted |
Line Input
| Type |
¼" TRS jack, electronically balanced |
| Impedance |
approx. 20 kΩ balanced, approx. 10 kΩ unbalanced |
| Gain range |
-10 dB to +40 dB |
| Max. input level |
+22 dBu @ 0 dB GAIN |
| Fade-Out Attenuation (Crosstalk Attenuation) | |
| Main fader closed |
90 dB |
| Channel muted |
84 dB |
| Channel fader muted |
85 dB |
| Frequency response (Mic In ➝ Main Out) | |
| <10 Hz - 90 kHz |
+0 dB / -1 dB |
| <10 Hz - 160 kHz |
+0 dB / -3 dB |
Stereo Inputs
| Type |
2 x ¼" TRS jack, balanced |
| Impedance |
approx. 20 kΩ balanced, approx. 10 kΩ unbalanced |
| Gain range |
-20 dB to +20 dB |
| Max. input level |
+22 dBu @ 0 dB GAIN |
CD/Tape In
| Type |
RCA connector |
| Impedance |
approx. 10 kΩ |
| Max. input level |
+22 dBu |
Equalizer
| EQ Mono Channels | |
| LOW |
80 Hz / ±15 dB |
| MID |
100 Hz to 8 kHz / ±15 dB |
| HIGH |
12 kHz / ±15 dB |
| LOW CUT |
80 Hz, 18 dB/oct. |
| EQ Stereo Channels | |
| LOW |
80 Hz / ±15 dB |
| LOW MID |
500 Hz / ±15 dB |
| HIGH MID |
3 kHz / ±15 dB |
| HIGH |
12 kHz / ±15 dB |
Main Outputs (XLR)
| Type |
XLR connector, electronically balanced |
| Impedance |
approx. 240 Ω balanced, approx. 120 Ω unbalanced |
| Max. output level |
+28 dBu |
Main Outputs (¼")
| Type |
¼" TRS jack, electronically balanced |
| Impedance |
approx. 240 Ω balanced, approx. 120 Ω unbalanced |
| Max. output level |
+28 dBu |
Main Inserts
| Type |
¼" TRS jack, unbalanced |
| Max. input level |
+22 dBu |
Mono Output
| Type |
¼" mono jack, unbalanced |
| Impedance |
approx. 120 Ω |
| Max. output level |
+22 dBu |
| Low pass |
variable, 30 Hz to 200 Hz, 18 dB/oct. |
Phones/CTRL Room Output
| Type |
¼" TRS jack, unbalanced |
| Max. output level |
+19 dBu / 150 Ω (+25 dBm) |
CD/Tape Out
| Type |
RCA connector |
| Impedance |
approx. 1 kΩ |
| Max. output level |
+22 dBu |
DSP
| Type |
Texas Instruments |
| Converter |
24-bit delta-sigma, 64/128-times oversampling |
| Sampling rate |
46 kHz |
Main Mix System Data (Noise)
| Main mix @ -∞, channel fader @ -∞ |
-100 dB / -102.5 dB A-weighted |
| Main mix @ 0 dB, channel fader @ -∞ |
-82 dB / -85 dB A-weighted |
| Main mix @ 0 dB, channel fader @ 0 dB |
-72 dB / -75 dB A-weighted |
Power Supply
| Power consumption |
50 W |
| Fuse (100 - 240 V~, 50/60 Hz) |
T 2,0 A H 250 V |
| Mains connector |
Standard IEC receptacle |
Physical/Weight
| Dimensions (H x W x D) |
100 x 896 x 410 mm (3.9 x 35.3 x 16.1") |
| Weight (net) |
11.0 kg (24.3 lbs) |
