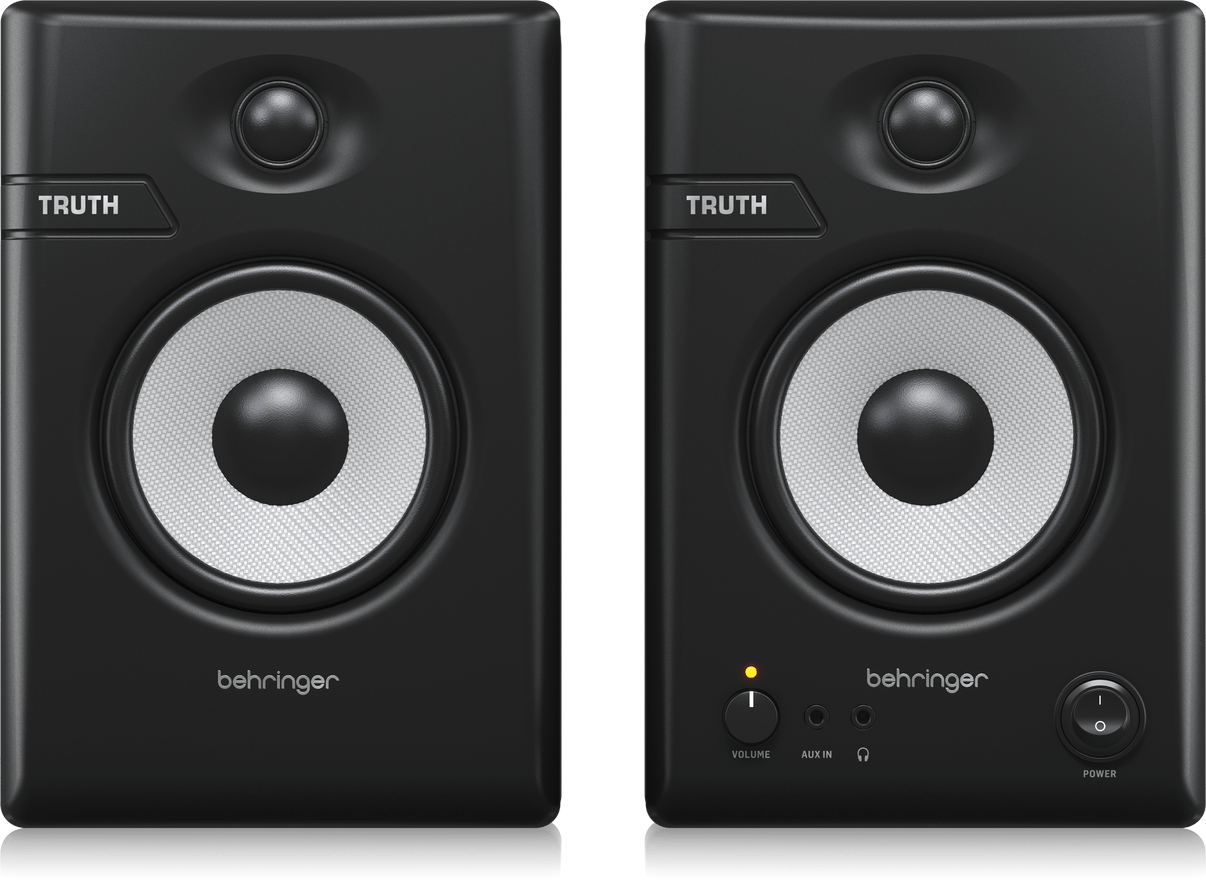

Audiophile 4.5" Studio Monitors with Advanced Waveguide Technology
Features
-
Ultra-linear 64-Watt reference-class studio monitors
-
Acclaimed TRUTH series monitors are well-received by the most demanding studios, but also ideal for home recordings, gaming, and multimedia workstations
-
Advanced Waveguide technology creates ultimate acoustic dispersion and extremely large "sweet zone"
-
Ultra-high resolution 1" silk dome tweeters for ultimate sound reproduction
-
Long-throw 4.5" woofers with deformation-resistant glass fiber cone
-
Two stereo analog inputs featuring TRS and RCA connectors can be used simultaneously or mixed with a digital stereo source
-
Front panel volume control, aux input and headphone connector for convenient access
-
Low and high frequency controls for acoustic tuning
-
High-density composite enclosure for ultra-low diffraction and reduced low frequency distortion
Specification
Amplifier
| Maximum output power |
32 W x 2 |
| Type |
Class-D |
| Protection |
Short circuit, open circuit, thermal |
Audio Connections
| Inputs (rear panel) |
2 x 6.3 mm balanced TRS, 2.5 kΩ 2 x RCA, 5kΩ, unbalanced |
| Aux in (front panel) |
1 x 3. 5 mm stereo, 5 kΩ, unbalanced |
| Headphone Output |
1 x 3.5 mm stereo, 32 Ω, unbalanced |
| Output to speaker |
2 x spring clips |
Loudspeaker / System Data
| Woofer |
4.5" (114 mm) LF driver |
| Tweeter |
1" (25.4 mm) silk dome tweeter |
| Frequency response |
60Hz – 20 kHz (±3 dB) |
| Maximum SPL |
99 dB @ 1 m |
| Crossover |
2-way, active |
| Crossover frequency |
2.8 kHz |
Controls
| Front panel |
Volume, power on/off |
| Acoustic tuning |
High: ±6 dB @ 12 kHz, shelving Low: ±6 dB @ 70 Hz, shelving
|
