Beyma CD-151FE/PK 8OHM

Throat diameter
Rated impedance
Minimum impedance
D.C. resistance
Power capacity 1
Program power 2
Sensitivity 3
25,4 mm 1 in
8 Ω
5,3 Ω
4,5 Ω
70 WAES above 1,8 kHz
140 W above 1,8 kHz
110 dB 1W / 1m @ ZN
coupled to TD-164

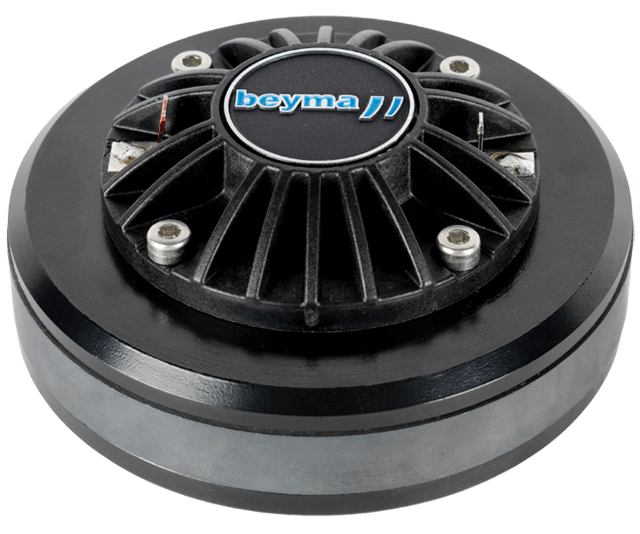

CD-151Fe/PK
COMPRESSION DRIVER
● Next generation high performance 1” (25,4 mm) exit
compression driver
● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling
● 1,5” (38,1 mm) Copper Clad Aluminum voice coil with
Kapton former
● 140 W program power above 1,8 kHz
● Sensitivity: 110 dB (1W / 1m)
KEY FEATURES
Acústica Beyma SL - P.I. Moncada II, C/ Pont Sec, 1C - 46113 Moncada, Valencia (Spain) - Tel. +34 96 130 13 75 - beyma@beyma.com
● VPEQ® Patent Pending Technology for linear frequency
response
● Exclusive High Temperature Polymer annular ring desing
optimized with F.E.M for linear and extended response with
minimized resonances
● Copper shorting cap for reduced distortion, linear inductance
and increased output
● F.E.M. optimized ceramic magnetic circuit
Frequency range
Recommended crossover
Voice coil diameter
Flux density
Bl factor
0,9 - 20 kHz
1,8 kHz or higher
(12 dB/oct min.)
38,1 mm 1,5 in
1,6 T
6 N/A
