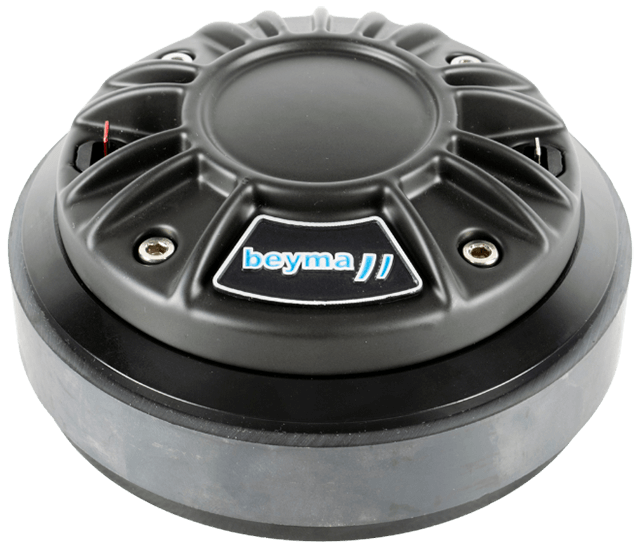

Beyma CD-171FE/PK 8 ohm

Key Features

 Next generation high performance 1” (25,4 mm) exit
compression driver
● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling
● 1,75” (44,4 mm) Copper Clad Aluminum voice coil with
Kapton former
● 160 W program power above 1,4 kHz
● Sensitivity: 109 dB (1W / 1m)
KEY FEATURES
Acústica Beyma SL - P.I. Moncada II, C/ Pont Sec, 1C - 46113 Moncada, Valencia (Spain) - Tel. +34 96 130 13 75 - beyma@beyma.com
● Exclusive High Temperature Polymer dome and surround
desing optimized with F.E.M for linear and extended response
with minimized resonances
● Copper shorting cap for reduced distortion, linear inductance
and increased output
● F.E.M. optimized ceramic magnetic circuit
● Aluminium cover

Technical Specifications

TECHNICAL SPECIFICATIONS
Throat diameter
Rated impedance
Minimum impedance
D.C. resistance
Power capacity 1
Program power 2
Sensitivity 3
25,4 mm 1 in
8 Ω
6,1 Ω
4,1 Ω
80 WAES above 1,4 kHz
160 W above 1,4 kHz
109 dB 1W / 1m @ ZN
coupled to TD-164
CD-171Fe/PK
COMPRESSION DRIVER
● Next generation high performance 1” (25,4 mm) exit
compression driver
● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling
● 1,75” (44,4 mm) Copper Clad Aluminum voice coil with
Kapton former
● 160 W program power above 1,4 kHz
● Sensitivity: 109 dB (1W / 1m)
KEY FEATURES
Acústica Beyma SL - P.I. Moncada II, C/ Pont Sec, 1C - 46113 Moncada, Valencia (Spain) - Tel. +34 96 130 13 75 - beyma@beyma.com
● Exclusive High Temperature Polymer dome and surround
desing optimized with F.E.M for linear and extended response
with minimized resonances
● Copper shorting cap for reduced distortion, linear inductance
and increased output
● F.E.M. optimized ceramic magnetic circuit
● Aluminium cover
Frequency range
Recommended crossover
Voice coil diameter
Flux density
Bl factor
0,8 - 20 kHz
1,4 kHz or higher
(12 dB/oct min.)
44,4 mm 1,75 in
1,6 T
5,4 N/A
