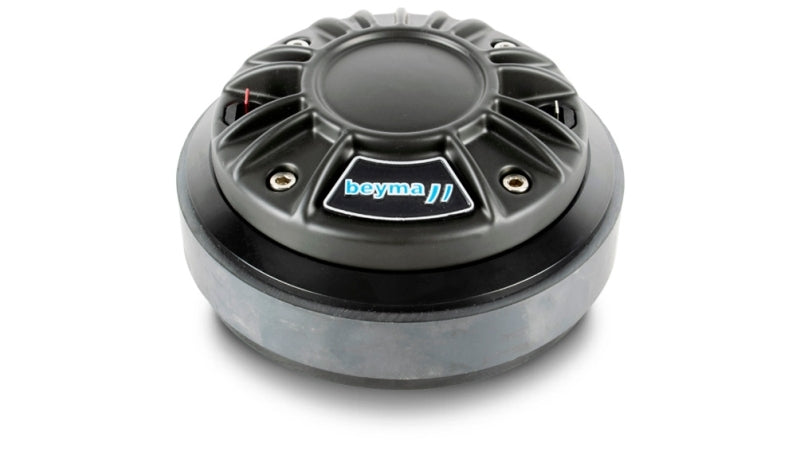

• Beyma CD-171FE/PT 8 ohm

    Beyma CD-171FE/PT 8 ohm

    Vendor: Beyma Type: Misc
    Technical specifications Nominal impedance 8 Ohm Throat diameter 25.4 mm 1 in Minimum impedance 6.1 ohm Re 4.1 ohm Power capacity 80 W AES above 1.2 kHz Program power 160...
    R 2,170.00
    Tax Included.

    🎉 Stock adequate! Ready to ship

    Pairs well with
    Shop Online With Nationwide Delivery
    Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa
    Shop Online & Pickup In-Store
    Payment & Security

    Your payment information is processed securely. We do not store or have access to your credit card details.

      Share to:
      View Full Details
      1 / 1
      Press & drag to view
      Product DetailsRecently Viewed

      Technical specifications

      Nominal impedance
      8 Ohm
      Throat diameter
      25.4 mm 1 in
      Minimum impedance
      6.1 ohm
      Re
      4.1 ohm
      Power capacity
      80 W AES above 1.2 kHz
      Program power
      160 W above 1.2 kHz
      Sensitivity
      108 dB 1W / 1m @ ZN coupled to horn TD-164
      Frequency range
      800-20000 Hz
      Recom. crossover frequency
      1.2 kHz or higher (12dB/oct min slope)
      Voice coil diameter
      44.4 mm 1.75 in
      Flux density
      1.6 T
      BL factor
      5.4 N/A
      Exit angle
      10.94º
      Diaphragm material
      Advanced Polyester

      Construction details

      External diameter
      120 mm 4.72 in
      Depth
      59 mm 2.32 in
      Mounting
      Three M5 threaded holes. 120º apart on
      57 mm (2.24 in) diameter circle.
      Two M5 threaded holes. 180º apart on
      76.2 mm (3 in) diameter circle.
      Net weight
      2.3 kg 5 lb
      Total weight
      2.4 kg 5.3 lb
      Magnet
      Ferrite
