Product Description
2-channel wireless system for singers and presenters. Stable UHF band, built-in antennas and streamlined interface.

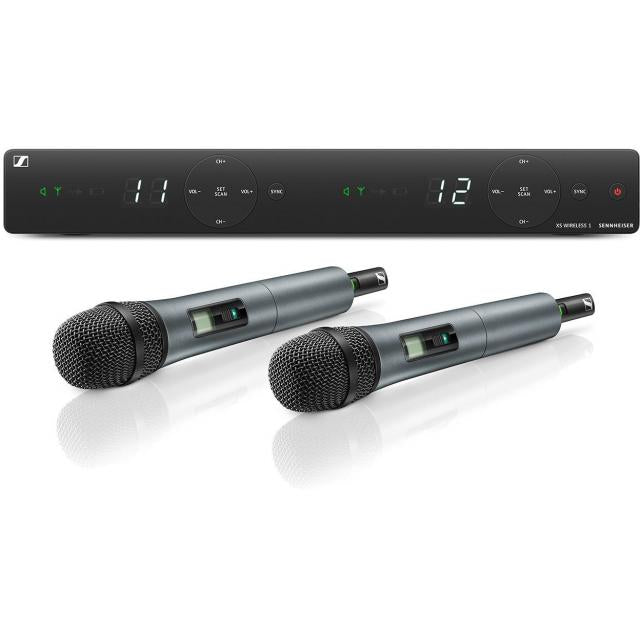

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
-
Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
-
Antenna-switching 2-channel diversity reception
-
Integrated antennas
-
Automatic frequency management and synchronization via remote channel for easy setup
-
Selectable UHF frequencies within a large bandwidth
-
Up to 10 compatible channels
Product Specifications
-
- Frequency range
-
548-572 MHz
-
- Dimensions
-
Ø 48 x L 180 mm
-
- Connector
-
XLR-3
-
- Frequency response
-
55 - 16,000 Hz
-
- THD, total harmonic distortion
-
≤ 0.9%
-
- Transducer principle
-
dynamic
-
- Weight
-
330 g (0.73 lbs)
-
- Pick-up pattern
-
cardioid
-
- Nominal impedance
-
300 Ω (at 1 kHz)
-
- Min. terminating impedance
-
1 kΩ
-
- Storage temperature
-
–20°C to +70°C
-
- Operating temperature
-
0°C to +40°C
-
- Signal-to-noise ratio
-
≥ 103 dBA
-
- Switching bandwidth
-
Up to 24 MHz
-
- Modulation
-
Wideband FM
-
- Frequency
-
80 factory presets (8 banks of 10 channels each)
-
- Sensitivity
-
1.8 mV/Pa (free field, no load at 1 kHz)
-
- Synchronization
-
Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
-
- Temperature Range
-
0 °C ... +40 °C (+32 °F ... +104 °F)
