KL series aims to enhance usability and versatility in dBTechnologies’ 2-way active speaker series: combining efficiency to a professional sound performance, KL systems feature Bluetooth® connection, 3 INPUT channels, impressive SPLs and a powerful DSP where linear phase FIR filters ensure the most accurate sound reproduction.
Overview

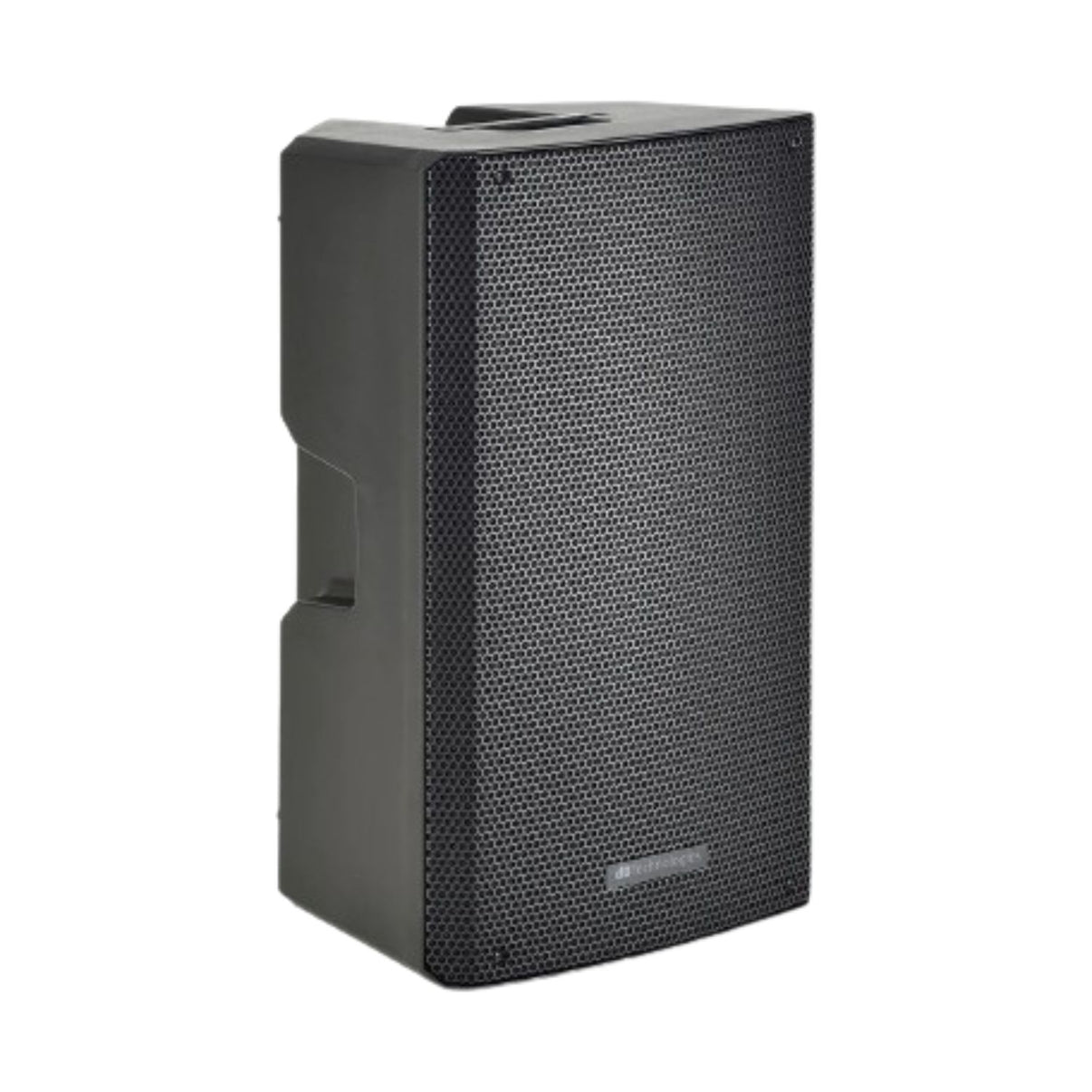

KL 15 is a 2-way active speaker equipped a 15” woofer and 1” compression driver (1.35 voice coil).
The system is driven by a powerful and efficient 800 W amplifier featuring dBTechnologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.
All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth® connection.
A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).
The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dBTechnologies Subs.
KL comes with its soft cover equipped with a pocket specially designed for cable storage.
FEATURES
- Active 2-way speakers
- Bluetooth®connection
- 3 Channel IN
- 1 link OUT with link/mix switch
- Linear Phase FIR Filters for accurate sound reproduction
- DSP presets for wide versatility
- Soft cover included
Technical Specifications
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
48 - 18.000 Hz
Max SPL
128 dB
HF
1" CD, 1.35"v.c
LF
15", 2.5" v.c.
Dispersion
90°x60°
Crossover Frequency
1800 Hz (24 dB/oct.)
Amplifier
Amp Technology
Class D(LF)+Class AB (HF)
Power Peak (LF+HF)
800 W
Processor
Controls
1xVolume, 1xslide switch mic/line
Indicators
power on/signal/limiter LEDs
Controller
DSP 20/56 bit
AD/DA Converter
24 bit/ 48 Hz
Systems Presets
Playback, Flat, Bass Boost, Wedge
Limiter
Peak, RMS, Thermal
Advanced DSP Functions
Linear Phase FIR Filters
Input
Signal Input
1x Combo(XLR/Jack)
Mic/Line
1xXLR/TRS
Mic/Line
1xXLR/TRS
Bluetooth Input
1xBluetooth receiver
SIGNAL Output
1xXLR Male (LINK/MIX)
Mechanics
Housing
Polypropylene
Handles
3 (2 on side 1 on top)
Angles Up
Monitor Use 45°
Pole Mount
36 mm, double positioning
Width
430 mm (16.92 in)
Height
722 mm (28.44 in)
Depth
402 mm (15.82 in)
Weight
19.3 kg (42.54 lbs)
