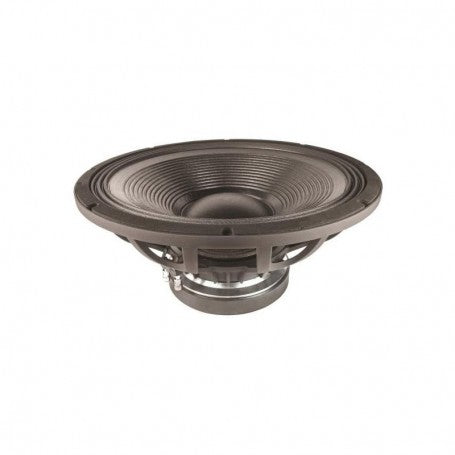

Faital Pro 18HP1030

Faital Pro 18HP1030

SKU: FAI-18HP1030

R 7,250.00

Tax included

Available Now!
NOMINAL SPECIFICATIONS
Nominal Diameter 460 mm (18 in)
Overall Diameter 460 mm (18.11 in)
Bolt Circle Diameter 440 mm (17.32 in)
Baffle Cutout Diameter 421 mm (16.57 in)
Depth 208.5 mm (8.20 in)
Flange and Gasket Thickness 13.7 mm (0.54 in)
Net Weight 12.1 Kg (26.7 lb)
Shipping Box
(Single Carton Box)		 503 x 500 x 258 mm
(19.8 x 19.7 x 10.2 in)
Shipping Weight 13.5 Kg (29.8 lb)


TECHNICAL PARAMETERS
Nominal Impedance 8 Ohm
Minimum Impedance 6.5 Ohm
AES Power Handling (1) 1200 W
Maximum Power Handling (2) 2400 W
Sensitivity (1W/1m) 98 dB
Frequency Range 35÷1600 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Cu
Former Material Glass Fiber
Winding Depth 28.9 mm (1.14 in)
Magnetic Gap Depth 12 mm (0.47 in)
Flux Density 1.1 T
Magnet Ferrite Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 6.5 dm^3 (0.230 ft^3)
Spider Profile 2x non-adjacent symmetrical constant height waves
THIELE AND SMALL PARAMETERS
Fs 35 Hz
Re 5 Ohm
Qes 0.43
Qms 11.6
Qts 0.41
Vas 162.1 dm^3 (5.72 ft^3)
Sd 1124 cm^2 (174.22 in^2)
Xmax (4) 12.45 mm
Xdamage (5) 23.1 mm
Mms 228.6 g
Bl 24.3 N/A
Le 1.48 mH
Mmd 205.8 g
Cms 0.09 mm/N
Rms 4.33 Kg/s
Eta Zero 1.59 %
EBP 81 Hz

NOTES:
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) Treated Polycotton
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
(5) Maximum excursion before permanent damage
