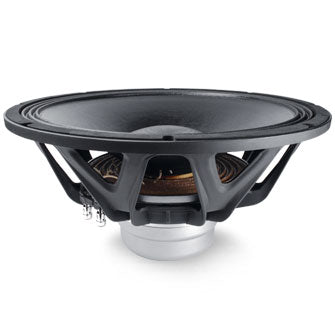

    FaitalPRO 18XL2000

    Vendor: Faital Pro Type: loose speakers
    Nominal Specifications Nominal Diameter 460 mm (18 in) Overall Diameter 460 mm (18.11 in) Bolt Circle Diameter 440 mm (17.32 in) Baffle Cutout Diameter 422 mm (16.61 in) Depth 227...
    R 12,000.00
    Tax Included.

    💪 Hurry up! Low Stock

    Pairs well with
    Shop Online With Nationwide Delivery
    Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa
    Shop Online & Pickup In-Store
    Payment & Security

    Your payment information is processed securely. We do not store or have access to your credit card details.

      Share to:
      View Full Details
      1 / 1
      Press & drag to view
      Product DetailsRecently Viewed
      Nominal Specifications
      Nominal Diameter 460 mm (18 in)
      Overall Diameter 460 mm (18.11 in)
      Bolt Circle Diameter 440 mm (17.32 in)
      Baffle Cutout Diameter 422 mm (16.61 in)
      Depth 227 mm (8.94 in)
      Flange and Gasket Thickness 14 mm (0.55 in)
      Net Weight 11.3 kg (24.9 lb)
      Shipping Box
      (Single Carton Box)      		 490 x 485 x 275 mm
      (19.3 x 19.1 x 10.8 in)
      Shipping Weight 12.8 kg (28.2 lb)


      Technical Parameters
      Nominal Impedance 8 Ohm
      Minimum Impedance 7 Ohm
      AES Power Handling (1) 2000 W
      Maximum Power Handling (2) 4000 W
      Sensitivity (1W/1m) 97 dB
      Frequency Range 30÷1600 Hz
      Voice Coil Diameter 118 mm (4.65 in)
      Winding Material Cu
      Former Material Glass Fiber
      Winding Depth 37.3 mm (1.47 in)
      Magnetic Gap Depth 14 mm (0.55 in)
      Flux Density 1.2 T
      Magnet Neodymium Ring
      Basket Material Aluminum
      Demodulation Double Al Dem. Ring
      Cone Surround (3) Triple Roll
      NET Air Volume filled by Loudspeaker 7.3 dm^3 (0.258 ft^3)
      Spider Profile 2x non-adjacent symmetrical constant height waves
      		Thiele and small parameters
      Fs 28 Hz
      Re 5.3 Ohm
      Qes 0.28
      Qms 10.1
      Qts 0.27
      Vas 232.1 dm^3 (8.20 ft^3)
      Sd 1213 cm^2 (188.02 in^2)
      Xmax (4) 16.32 mm
      Xdamage (5) 33 mm
      Mms 286.0 g
      Bl 30.8 N/A
      Le 1.45 mH
      Mmd 238.3 g
      Cms 0.11 mm/N
      Rms 5.0 kg/s
      Eta Zero 1.8 %
      EBP 100 Hz
