AUDIOCENTER MA12

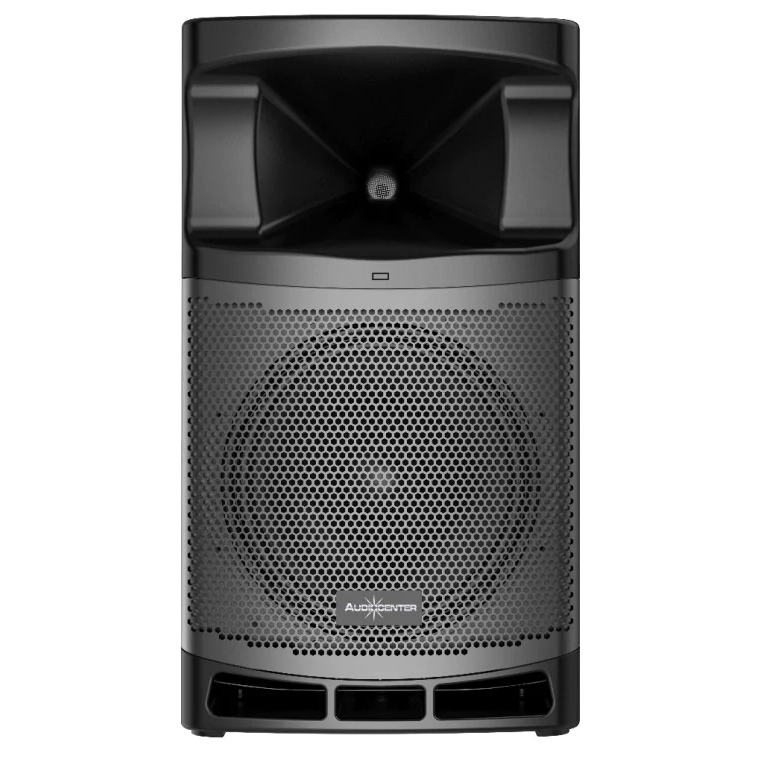

MA12 Powered plastic moulded 12″ speaker
The Audiocenter MA12 is a powered plastic moulded 12″ speaker with stereo buletooth functionality,45 degree wedge for monotiring,pole mount and flying points for fixed rigging. It can be widely used in fixed installation and touring performance.
Frequency responce 50Hz-20KHz. Maximum SPL 131dB. Class D amplifier. Protection DC,short circuit,overheating,input and out put overload,soft start,over voltage and under voltage protection. Stereo Bluetooth conectivity. Three channel on board mixer. Two female XLR input, 3.5mm aux input and XLR male output link
Audiocenter is a professional audio brand, originating from innovative technology which is carried through to the present day, integrating excellent global resources, blending worldwide cutting-edge technology in its designs and manufactured efficiently and intelligently in China.
Audiocenter adopts a strict and careful dedication to brand identification, core principles and is devoted to global brand distribution.
Specifications
|
Frequency Response (-6dB anechoic chamber) |
50Hz-20KHz |
|
Maximum Calculated SPL/1M |
131dB |
|
LF Driver |
Customized driver, 2.5” voice coil |
|
HF Driver |
Customized driver, 1” exit, 1.4” voice coil |
|
Horizontal Coverage Angle(Symmetrical) |
80° |
|
Vertical Coverage Angle(Symmetrical) |
50° |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
1600W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20KHz(±1dB) |
|
Protection |
DC protection, short circuit protection, overheat protection,input overload protection, output overload protection,soft starter, overvoltage protection, undervoltage protection |
|
Cooling System |
Air convection |
|
DSP |
|
|
Processor |
96KHz signal sampling frequency,24bit precision |
|
Output/Input |
|
|
Signal Input |
2×female XLR(Mono jack 6.35)、1×wireless bluetooth、1×Minijack 3.5 |
|
Signal Output |
1× male XLR |
|
Power Input |
3 pin plug |
|
Working Voltage |
100V-240V(±10%，50/60Hz） |
|
Cabinet |
|
|
Monitor function |
Symmetrical 45° monitor angle |
|
Cabinet Color |
Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
|
Pole Mount |
Φ35mm |
|
Cabinet |
New polypropylene composite material |
|
Dimension(W×H×D) |
345x610x352mm |
|
Net Weight |
14.0Kg |
