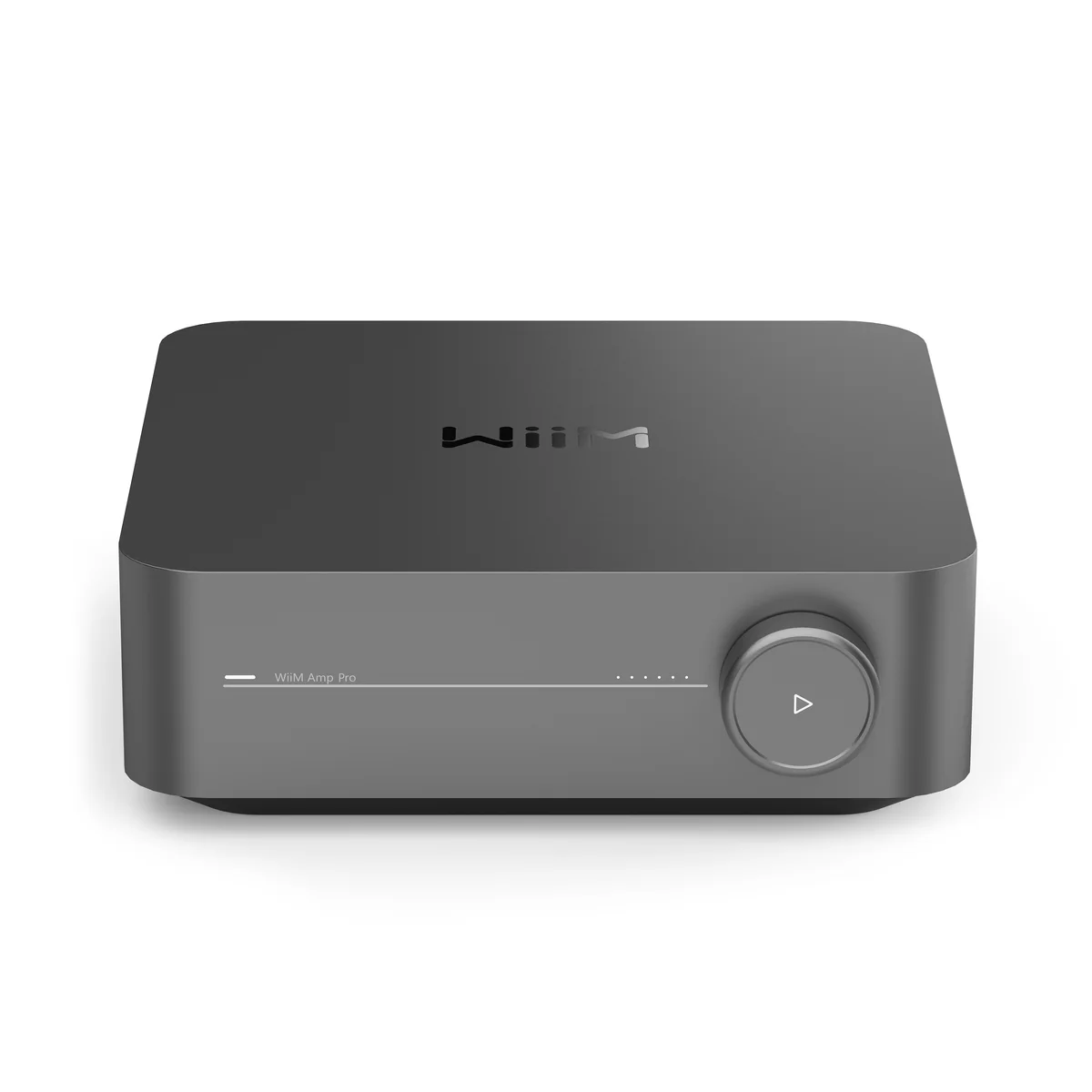

WIIM AMP PRO (GREY)

Small Yet Mighty
Housed in a sleek aluminum shell, the compact WiiM Amp Pro fits anywhere. Inside, premium components and innovative circuitry ensure robust, crystal-clear amplification and efficient thermal performance. It delivers 60 watts per channel at 8 ohms and 120 watts per channel at 4 ohms.

Superior Sound Quality
Featuring Post-Filter Feedback technology and premium components like the ESS ES9038Q2M DAC, TI TPA3255 amplifier and OP AMP, the WiiM Amp Pro achieves an impressive 120dB SNR and THD+N of -105dB at 5W across a frequency range of 44.1k to 192k, setting a new standard for audio fidelity.

Unleash Premium Sound:

The WiiM Amp Pro is our most advanced streaming amplifier yet, featuring PFFB technology, Wi-Fi 6, an innovative thermal design, and a premium DAC for superior audio performance. lt delivers 60W per channel power for 8 ohms, and 120W per channel power for 4 ohms. It incorporates the latest W-Fi 6 and BT 5.3 with two antennas, offering rock solid wireless audio streaming.

Does It All Like Magic:

Master your audio universe with the WiiM Home App. Stream from top music services and manage your system effortlessly, room by room. Adjust volume, sync speakers, save favorites, set alarms, and tweak settings—all in one place. Prefer your go-to music app? No problem, play straight from it. Plus, go hands-free with voice commands. Whether you're using Alexa, or Google Assistant, control is just a word away, even with the included voice remote.

Home Theater Magic, Simplified:

Elevate your entertainment experience effortlessly with the WiiM Amp Pro's HDMI ARC port. Plug in your TV and immerse yourself in rich stereo sound for shows, movies, and video games. Craving that extra oomph? Simply add a powered subwoofer to take your audio to cinematic levels. With minimal setup required, the WiiM Amp Pro offers a seamlessly integrated AV system that turns your living room into a home theater paradise.

Seamless Multiroom Audio:

Effortlessly create a unified sound system across your home using the WiiM Amp Pro with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.

Hi-Res Sound Shaped by You:

Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.

-------

Specifications

Audio Input	HDMI Arc, Optical, Line
Audio Output	Passive speaker terminal: SNR - 120 dB, THD+N - 0.0005% (-105 dB); Subwoofer output with bass management; USB Audio Out, up to 192 kHz/24-bit; Bluetooth Transmitter.
Audio Format	MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
EQ	10-band Graphic EQ, 10-band Parametric EQ, 26 Preset EQ; Automatic Room Correction via iPhone/iPad/Android Phone or external MIC.
Subwoofer Output	Auto-detecting cable insert, user-adjustable 30-250 Hz crossover
Power Supply	100-240V 50/60Hz AC Power
Connectivity	Network - Wi-Fi 6, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands. 10M/100 Mbps LAN; Bluetooth - BT 5.3 with BLE, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.
Supported Streaming Protocol	Google Cast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA





Which WiiM product is right for you?

	WiiM Amp Pro	WiiM Amp	WiiM Ultra	WiiM Pro Plus	WiiM Pro	WiiM Mini

Audio Amplification	TI TPA3255	TI TPA3255	-	-	-	-
Main Purpose	Connected to passive speaker for streaming	Connected to passive speaker for streaming	Connected to amplifier or powered speaker for streaming	Connected to amplifier or powered speaker for streaming	Connected to amplifier or powered speaker for streaming	Connected to amplifier or powered speaker for streaming
Pair with a Sub	Y	Y	Y	-	-	-
USB Port (Storage/Audio Out)	Y	Y	Y	-	-	-
Wireless Connectivity	Wi-Fi 6, BT 5.3 (Will be upgraded to Wi-Fi 6E via software update.)	Wi-Fi 5, BT 5.0	Wi-Fi 6, BT 5.3 (Will be upgraded to Wi-Fi 6E via software update.)	Wi-Fi 5, BT 5.0	Wi-Fi 5, BT 5.0	Wi-Fi 5, BT 5.0
Ethernet	Y	Y	Y	Y	Y	-
DAC IC	ESS ES9038 Q2M	ESS 9018 K2M	ESS ES9038 Q2M	AKM 4493SEQ	TI PCM 5121	TI PCM 5121
Analog Out SNR	120 dB	108 dB	121 dB	121 dB	106 dB	106 dB
THD+N (Analog Out)	-105 dB (0.0005%) at 5W	-92dB (0.0025%) at 5W	-116 dB (0.00015%)	-113dB (0.00023%)	-92dB (0.0025%)	-92dB (0.0025%)
Analog Input (ADC)	Up to 192k, 24 bit	Up to 192k, 24 bit	Up to 192k, 24 bit	Up to 192k, 24 bit	Fixed 48k, 16 bit	Fixed 48k, 16 bit
Google Cast Audio	Y	Y	Y	Y	Y	-
Group with Nest speakers and Display	Y	Y	Y	Y	Y	-
Group with Echo speakers and Display	Y	Y	Y	Y	Y	Y
Alexa Multiroom with UHD	Y	Y	Y	Y	Y	-
Group with HomePods	-	Y	-	Y	Y	Y
Works with Alexa	Y	Y	Y	Y	Y	Y
Works with Google	Y	Y	Y	Y	Y	-
Works with Siri	-	Y	-	Y	Y	Y
Group with WiiM or Linkplay devices	Y	Y	Y	Y	Y	Y
AirPlay 2	-	Y	-	Y	Y	Y
2-Way Bluetooth	Y	Y	Y	Y	Y	Y
Roon Ready	Y	Y	Y	Y	Y	-
DLNA	Y	Y	Y	Y	Y	Y
Spotify Connect & TIDAL Connect	Y	Y	Y	Y	Y	Y
Gapless Playback	Y	Y	Y	Y	Y	Y
10-band Graphics EQ	Y	Y	Y	Y	Y	Y
Linkplay Music Streaming Platform	Y	Y	Y	Y	Y	Y
CPU	Quad Core A53	Quad Core A53	Quad Core A53	Quad Core A53	Quad Core A53	Dualcore A7
DRAM	512 MB	512 MB	512 MB	512 MB	512 MB	128 MB
Flash	512 MB	512 MB	512 MB	512 MB	512 MB	128 MB
Audio Input Port	Line, Optical, HDMI ARC, USB Disk	HDMI ARC, Line In, Optical, USB Disk	HDMI ARC, Optical, Line, Phono, USB Disk	Line-in, Optical	Line-in, Optical	AUX 3.5mm jack
Audio Output Port	Banana (x2), Subwoofer, USB	Banana (x2), Subwoofer, USB	RCA, Optical COAX, USB, Headset	Line-Out, Optical, Coax	Line-Out, Optical, Coax	AUX 3.5mm jack, Optical
