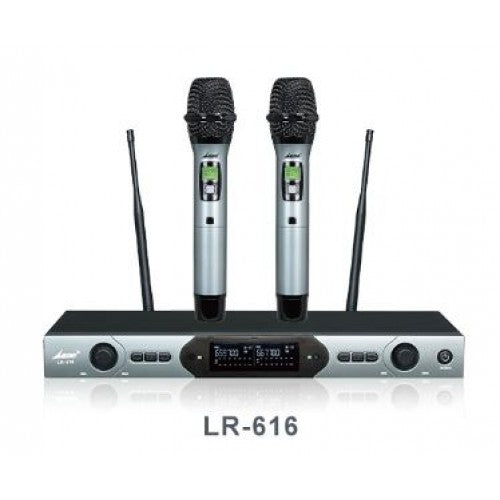

It is an advanced high quality wireless microphone system.
UHF frequency transmission for higher frequency stability and far transmission distance.
Infrered frequency 200 channels, multiple systems can be used simultaneouuly.
This system is adopted much imported from integrated circuit components and high quality two-sided circuit board.
With the newest didital pilot technology, it maximum avoid fault frequency and string frequency.
Multi-level optimization of audio processing program has a graceful sound,plenty of low frequency,prominent medium frequency and intensive high frequency.
Built-in the most advanced and the fastest ARM processor and AD/DA chip.Frequency response is at 30Hz-18KHz.It can one key scan field of spatial spectrum quickly and select the cleanest channel,keep you away from interference and crosstalk.
Specially designed for stage and karaoke(KTV),fits for auditorium and teaching.
Specification
System
| Receiver dimension | stanard 1U case |
| Channel | 200 |
| Channel Interval | 300KHz |
| Frequency Mode | the frequency automatic infrared and ideal channel automatic scanning |
| Polar Pattern | Hyper Cardioid |
| Transmitter generality | within this type AB channel can be mixed(no-preference) |
| Receiver Power Supply | DC 3V (AA 1.5V x 2) |
| Transmitter Power Suply | 12 V 350 mA |
Receiver
| Frequency Range | 630-698 MHz |
| Receive mode | The secondary variable frequency wireless |
| Antenna Impedance | 50 Ω |
| Rated deviation | ±5 KHz |
| Max deviation | ±10 KHz |
| De-Emphasis | 12 μ S |
| Frequency Stability | ≤ ±0.002% |
| Sensitivity | >92 dB |
| Audio Frequency Response | 50-16000 Hz(± 3dB) |
| Power Consumption | 7W |
| Receiver Dimension | 41.9*17*5cm |
Transmitter
| Modulation Mode |
FM |
| Input Impendance |
600Ω |
| Power Supply | DC 3V(AA1.5V*2) |
| Power Consumption |
about 12mA |
