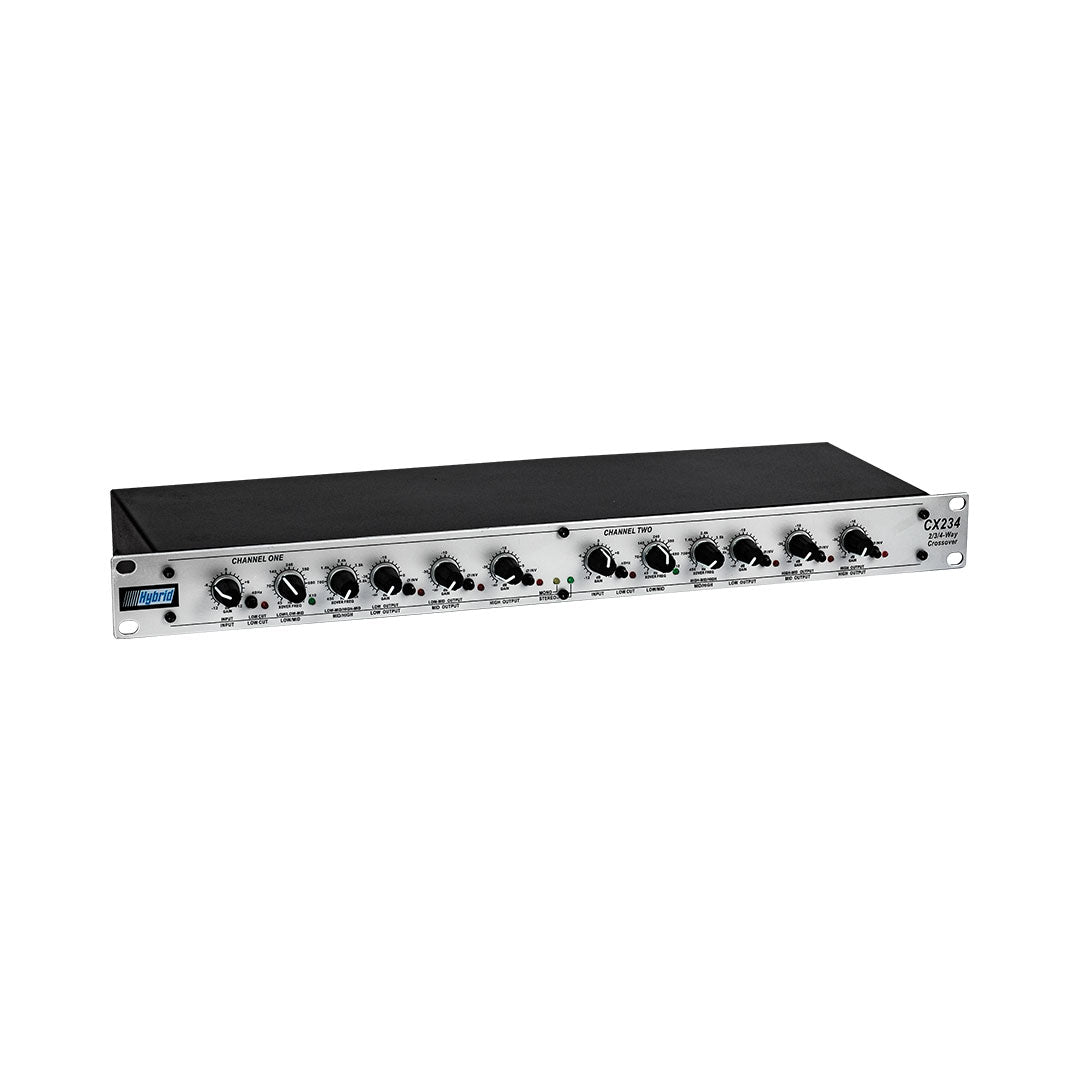

Hybrid CX234 - 3-Way Stereo / 4-Way Mono, Active Crossover

Active Crossover – 3 Way

The Hybrid CX234 is a 3-way stereo/4-way mono active crossover that is suitable for any 3-way stereo active system with separate sub-bass, mids and top cabinets.
Setting up the CX234 for the perfect ratio between frequency bandwidths is simple with the comprehensive face panel controls that includes crossover frequency, independent gain controls for inputs and outputs, as well as phase invert switches for the outputs.

CX234
3-Way Stereo Active Crossover
Applications: 3-way stereo, 4-way mono
3-Way Stereo Outputs: 2 x Low Outputs, 2 x Mid Outputs, 2 x High Output
4-Way Mono Outputs: 1 x Low Output, 1 x Low-mid Output, 1 x High-mid Output, 1 x High Output
Crossover Frequency 1 Bandwidth: Channel 1 and 2, 45Hz – 9600Hz
Crossover Frequency 2 Bandwidth: Channel 1 and 2, 450Hz – 9600Hz
Face Panel Controls: 2 x Input Gain, 4 x Frequency, 6 x Output Gain, Output Phase invert, Input Low-cut 40Hz
Face Panel Indicators: Low-cut LED, Phase invert LED, Mono/Stereo LED, Frequency x10 LED
Back Panel Controls: Mono/Stereo switch, LF Sum switch, Frequency x10 switch
Connectors: XLR Female Inputs, XLR Male Outputs
