DI Box – Passive

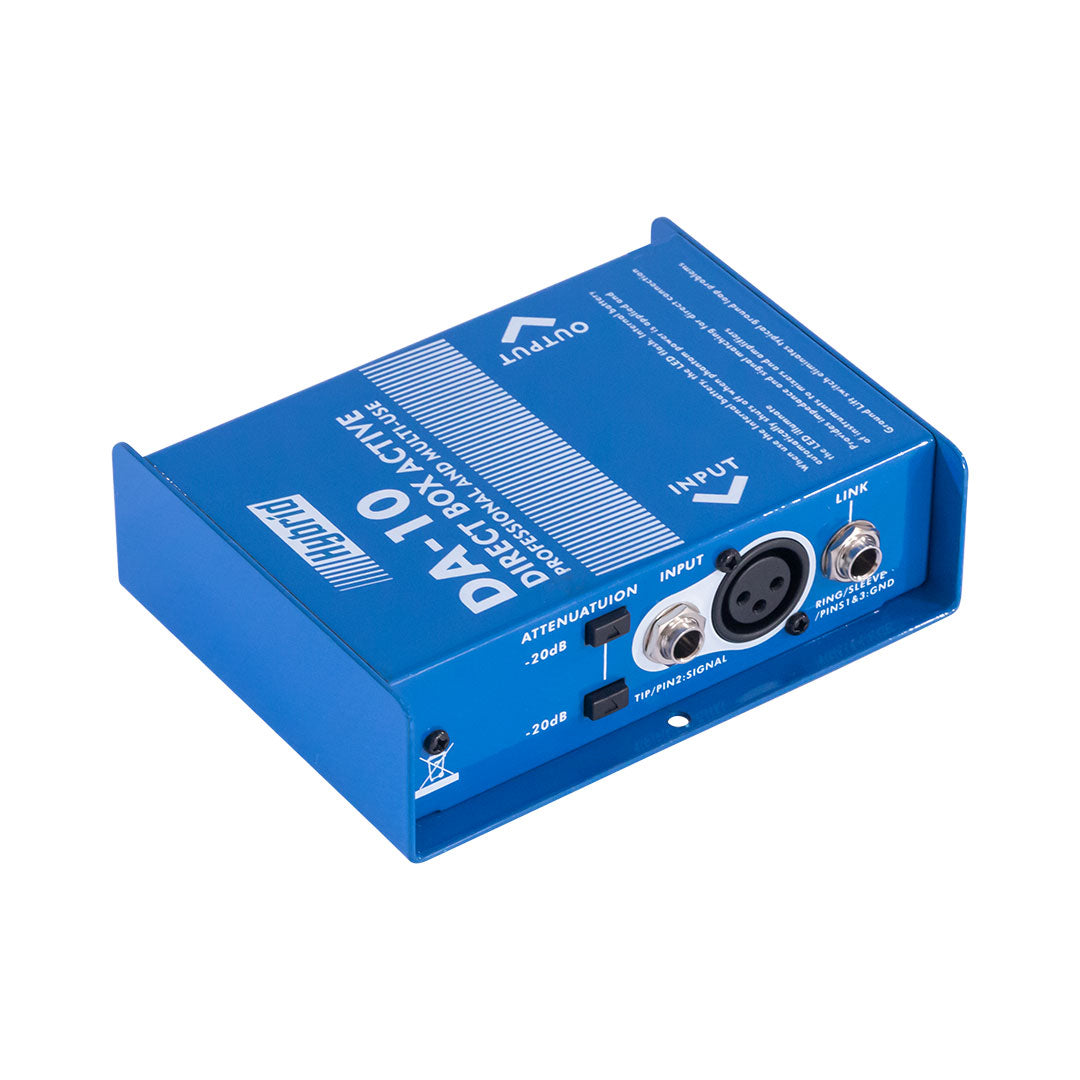

The Hybrid DA-10 is an active direct-inject box which is one of the most useful and versatile tools available to interface various audio equipment in numerous ways.
The DA-10 primary function is to convert a high-impedance unbalanced signal to a low-impedance balanced signal, allowing the connection of musical instruments to be connected to microphone preamplifiers or to run an audio signal over a long cable length with minimal losses. It is also often used within the DJ industry as an interface between unbalanced and balanced DJ gear.
The DA-10 offers many useful features such as a ground lift switch, eliminating earth loops & hum, two attenuation switches preventing the input from clipping and can be powered by either a 9V battery or Phantom power.
The DA-10 is a robust and reliable tool, housed in a solid metal casing, and finished off with a blue powder coating.
Active DI Box
Input: 1/4″ Jack & Female XLR, Unbalanced, 50KΩ
Output: Male XLR, Balanced, 600Ω
Link Output: 1/4″ Jack, Unbalanced, 50KΩ
Attenuation Switches: 0dB, -20dB, -40dB
Ground Lift Switch: Push button switch
Battery On / Off Switch: 9V Battery with low batt indicator
Phantom Powered: Yes, when battery switch is on “off” position
Construction: 1.2mm metal casing, black power coat finish
Dimensions: (WxDxH): 103x134x40mm
