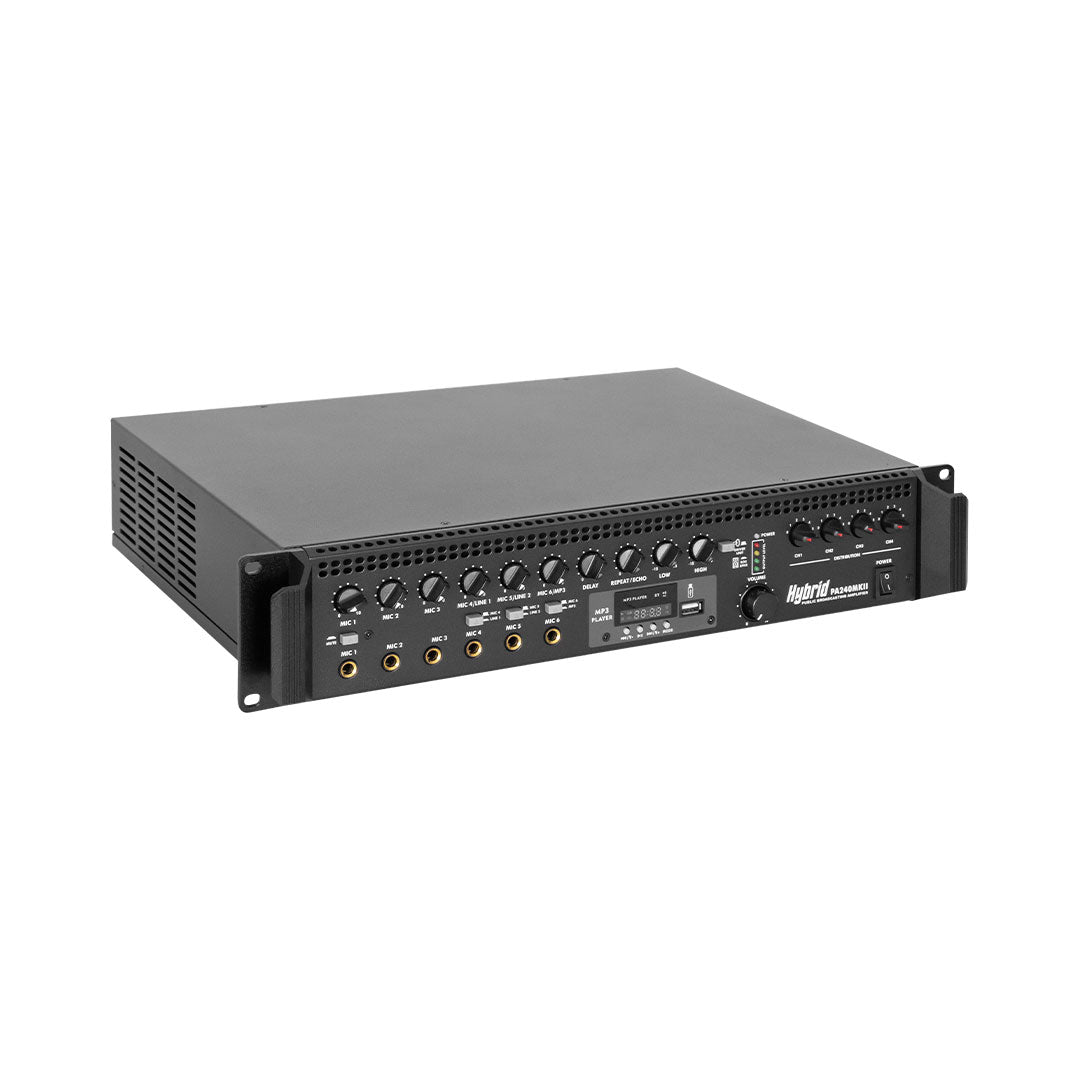

HYBRID PA240 MKII

Power Amplifier – Public Broadcasting Series

Overview
Compared to an analogue amplifier, the same-level Class-D amplifier is more portable, weighs 60% less and has a 40% lower energy consumption. This series also has over-temperature, over-voltage, over-current and short circuit protection, an input signal limit and an output current over-current limit.

Features
6 MIC inputs, one with a priority function
3 LINE inputs
2-band EQ
Digital effects processor
Built-in MP3 with USB, FM and Bluetooth functionalities
Outputs include an 8–16 Ω output, a 70 V output, a 100 V output as well as a LINE level output

Specifications
Rated output power: 240 W
2-band EQ: A 100 Hz band and a 10 kHz band, both with ±15 dB adjustment
Frequency response: 60 Hz–16 kHz ±1 dB
THD (1 kHz): ≤ 0.5%
S/N MIC ratio for inputs 1–3: < −108 dB
S/N LINE ratio for inputs 1–3: < −88 dB
MIC inputs 1–3: −50 dB, 600 Ω, unbalanced
LINE inputs 1–3: −10 dB, 10 kΩ, unbalanced
Power supply: 220–240 Vac, 50–60 Hz

NOTE: When the 8–16 Ω output is used, the maximum available power is 70% for either the 70 V output or the 100 V output.

HYBRID is a South African brand with over 30 years’ experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent’s demands for features, performance and budget.
