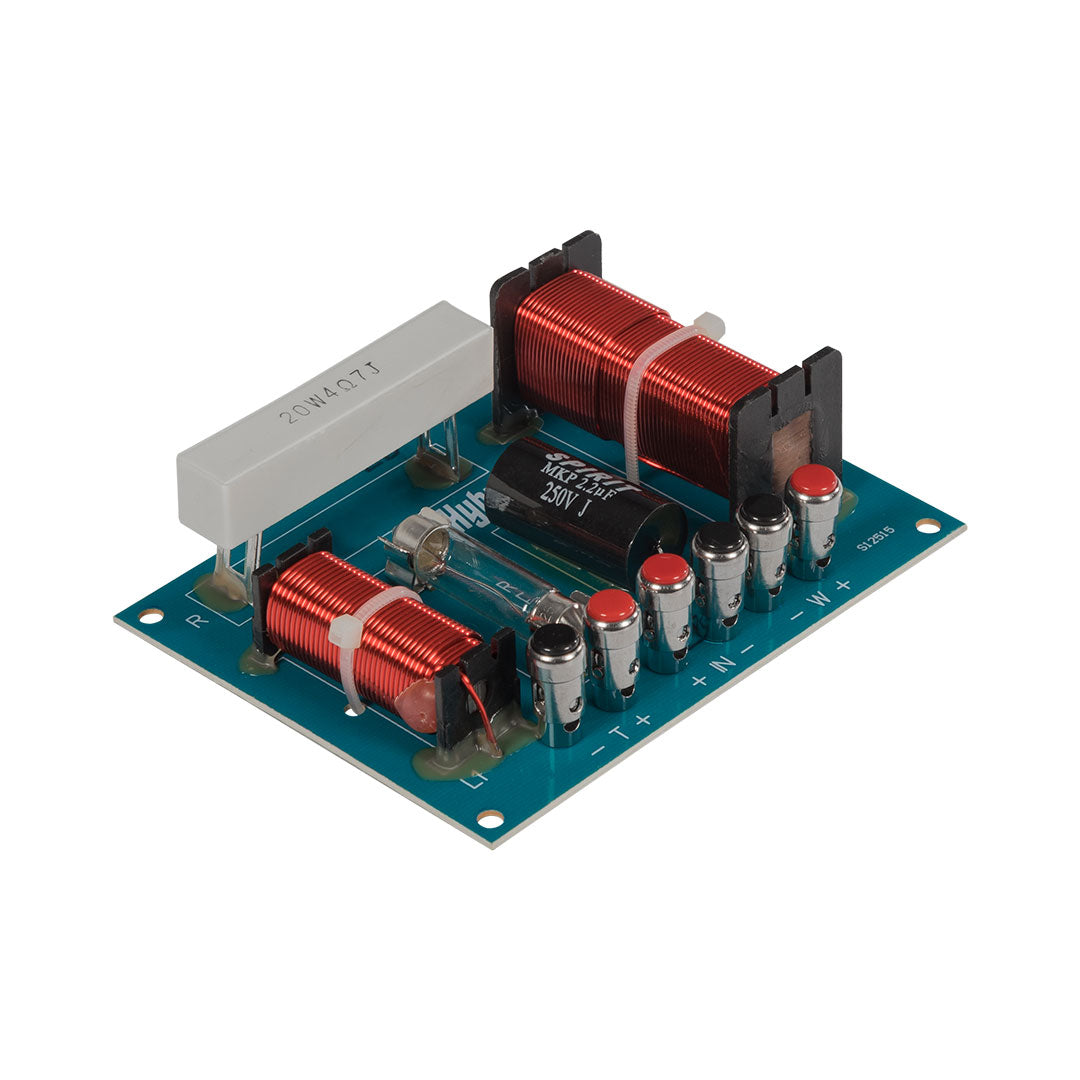

Hybrid+ X2-3500-300

Passive Crossover – 2 Way

The Hybrid X2-3500-300 is a universal, DIY, 2-way passive crossover suitable for enclosure design enthusiasts and it can be used as a replacement crossover for most 8Ω, 2-way speaker cabinets.
The X2-3500-300 features a 6dB/Octave filter on the Low-frequency and a 12dB/Octave filter on the High frequency, with high frequency attenuation and a fused protection. Installing the X2-3500-300 is extremely easy with the quick release spring loaded terminals.

2-Way Passive Crossover, 8Ω LF – 8Ω HF
Crossover Frequency: 3500Hz
Power Handling: 300W rms
LF Impedance: 6-8Ω
HF Impedance: 6-8Ω
LF Filter: 6dB / Octave
HF Filter: 12dB / Octave
HF Attenuation: Ceramic 20w resistor
HF Protection: Fused (Replaceable)
Connectors: Quick release spring loaded
Construction: 1.5mm fiberglass PCB
