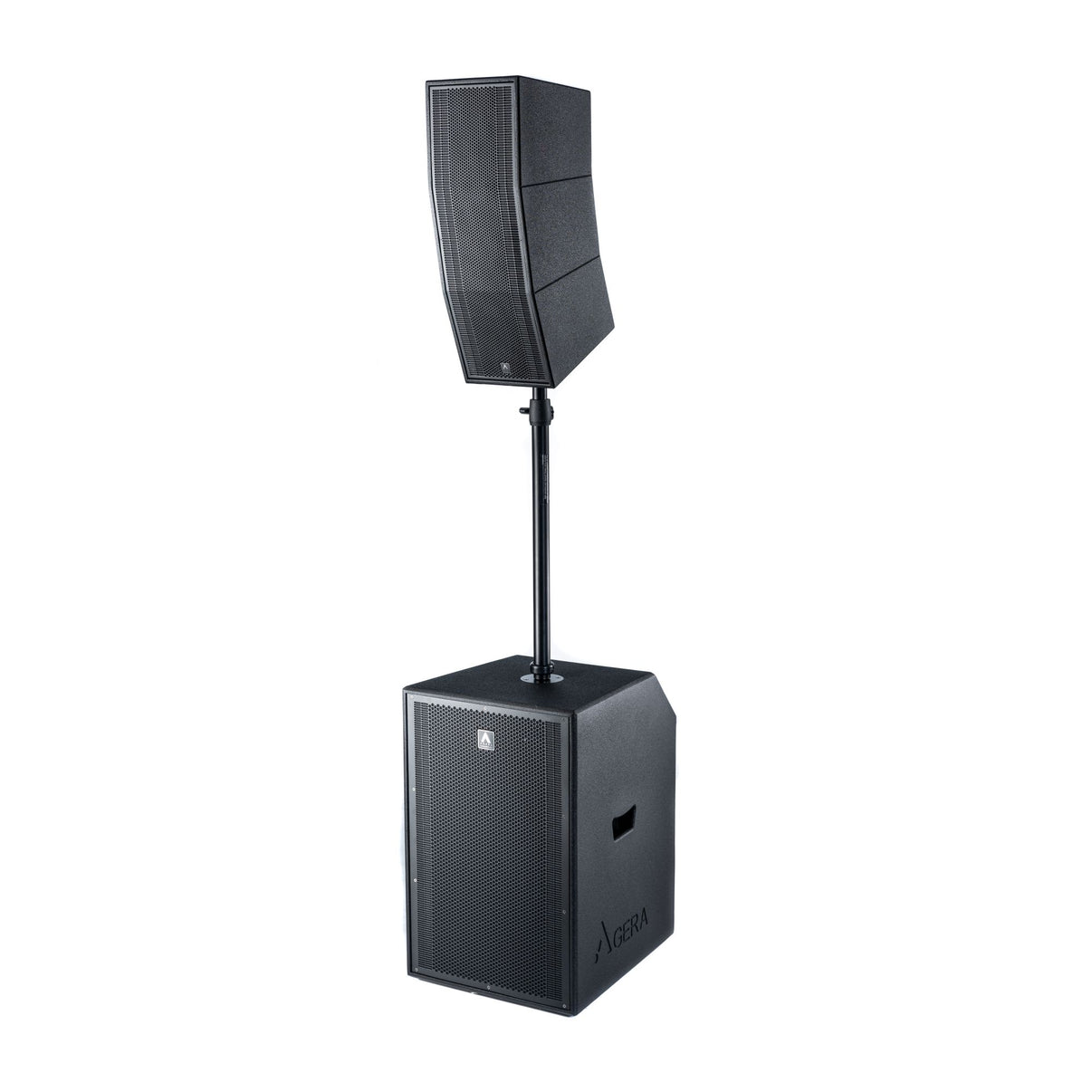

AGERA ACOUSTICS CA 15-2K COMPACT PORTABLE LINE ARRAY SYSTEM

Agera Acoustics’ CA15-2K mobile linear array audio system consists of 3 x
8-Inch neodymium magnet passive linear array full-range speakers, 12 x
1-Inch dome tweeters + 1 x 15-Inch active subwoofer. The cabinet has a
built-in 4 channel mixer and dual-channel power amplifier. The system is
completed with a height-adjustable telescopic stand with integrated cabling.
Suitable for activations, small and medium band performance, DJ’s,
conferences, speech reinforcement, music playback and other applications.

- Built-in powerful 24-bit DSP speaker processing module with gain, EQ,
delay, limiter, program memory and
other functions. You can choose default settings or optimize the
settings by yourself.
- Efficient 2-way 700W + 400W” CLASS-D” power amplifier, with high
power, low distortion and excellent sound quality.
- Switching power supply, light weight, stable performance, 220V-240V
power input.
- Supports TWS Bluetooth connection. When a pair of CA15-2K are used
in Bluetooth mode, the Bluetooth can be set at TWS status, pairing the
systems for stereo playback.
- Ultra-long delay time DSP setting, adjusting range is 0-100 meters,
at 0. 25-meter increments.
- Ultra-wide dispersion covering a wide audience area: 100 Horizontal x 70
Vertical
- AGERA ACOUSTICS telescopic height-adjustable stand.
- No external speaker cable connection is required as cables are integrated
within the telescopic stand with internal sockets.
FEATURES

AGERA ACOUSTICS CA 15-2K
COMPACT PORTABLE LINE ARRAY SYSTEM

MF 3 x 8-Inch neodymium magnet full-range speaker
HF 12 x 1-Inch dome tweeter
Coverage angle (H x V) 100 x 70 (-10Db)
Rated power 400W (RMS)
Rated impedance 4Ω
Dimension (W x H x D) 255 x 729 x 400mm

The AGERA ACOUSTICS CA15-2K 15-Inch active subwoofer includes a dual-channel
amplifier providing 700W + 400W, a 4 channel mixer, including 2 x Mic/ line input, 1 x
RCA stereo mixed line input, 1 x HI-Z line input, 2 x XLR line output, 1 x mixed line
output, and a separate volume control for the subwoofer
Transducer 1x 15-Inch low-frequency transducer
Rated power 700W (RMS)
Rated impedance 4Ω
Dimension (W*H*D) 485 x 695 x 585mm

1. GAIN:gain knob for channels 1-4
2. LINE/MIC switch: Signal source selection switch for line input or
microphone input;
3. 6.35mm JACK:High impedance input socket, for connecting to acoustic
equipment such as acoustic guitar;
4. DSP CONTROL: DSP knob with press and turn functionality
5. LINE INPUT:RCA line signal input socket;
6. MIX OUTPUT:XLR output socket;
7. SUB LEVEL:Dedicated subwoofer level control
8. LINE LINK:signal link output socket, linking 1 # -2 # signal input socket
respectively;
9. INPUT socket: XLR/Jack COMBO input socket, compatible with XLR and
6.35mmJACK plugs.
