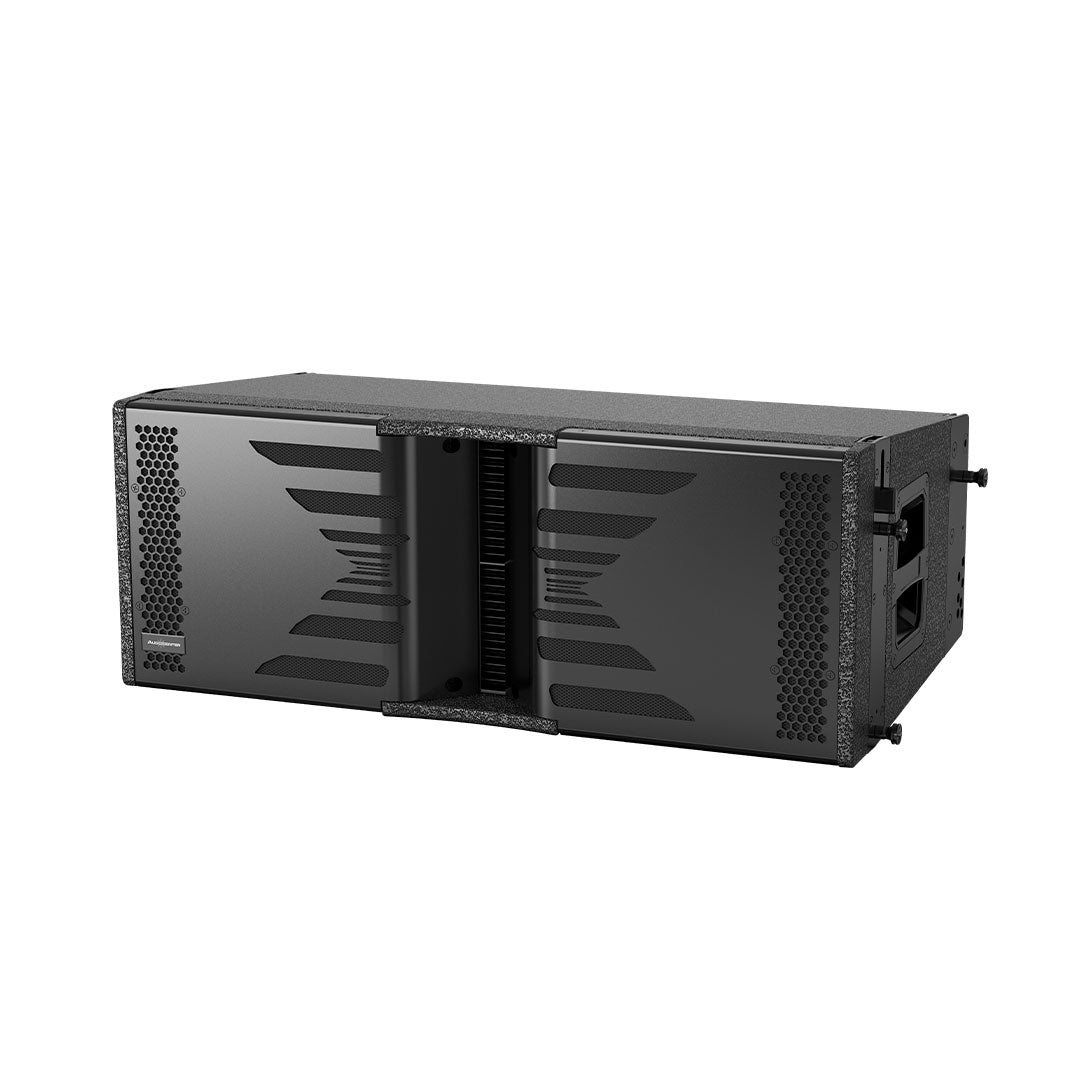

AUDIOCENTER XLA102-DSP

Active DSP-controlled Line Array Speaker

The Audiocenter XLA 102-DSP is an active line array system. A newly designed horn and acoustic load provide high efficiency in the mid-frequency range and 90 degrees uniform horizontal coverage. Its excellent sound performance, compact size and light weight make it ideal for demanding touring events and fixed installations. The Audiocenter XLA102-DSP features two customised 1.75” HF drivers with composite diaphragms and two customised 10” LF drivers (with 2.5” voice coils). Audiocenter XLA102-DSP system can be used as a main PA system with a maximum of 16 cabinets per array. User selectable three presets (Linear, HFX, W/SUB) in Audiocenter XLA102-DSP are available for users to choose according to their needs.

The Audiocenter XLA 102-DSP can be suspended vertically. Built-in hardware with innovative quick-release mechanism with high-strength 10mm pins makes installation easy, safe and quick. The system can be sized according to the required vertical coverage angle to meet the different requirements of different applications. For venues where the system cannot be flown, customised frames are available for ground stacking (maximum of 4 cabinets).

FEATURES

Customised drivers
Innovative ETE™ waveguide technology for perfect frequency response and even coverage
Newly designed horn for extremely precise dispersion
High end built-in digital controller (DSP) with 96KHz sampling frequency, 2 4bit precision
Class D amplifier
Advanced cooling system
Optimised and compact cabinet design
Solid, moisture-free, CNC-machined birch plywood cabinet
Wide range of accessories for different applications

SPECIFICATIONS

Type: Active DSP-controlled full range loudspeaker
Frequency Response (-6dB anechoic chamber): 55Hz-19KHz
Maximum Calculated SPL/1M (Continuous/Peak): 132dB/138dB
LF Driver: Customized 2×1 0” driver, 2.5” voice coil
HF Driver: Customized driver, 1.0”exit, 2×1. 75”voice coil
Horizontal Coverage: 90°
Angle (Symmetrical)
Vertical Coverage Depends on the amount of the speaker and curvature of the line array
Angle (Symmetrical)

AMPLIFIER

Amplifier Circuitry Class D
Power (Peak) 2000W
Frequency Response (1W 80 2ch): 20Hz-20KHz (±0.5dB)
Intermodulation Distortion: <0.05%
Total Harmonic Distortion Protection: <0.05%
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System: Cooling with fans

DSP

Processor: 96kHz signal sampling frequency, 24bit precision
Presets: LINEAR, HFX, W/SUB
Crossover: Controlled by DSP

Output/ Input

Signal Input: 1 x Female XLR
Signal Output: 1x Male XLR
Power Input/Output: Power Connector
AC Power Operating Range: 100V-130V or 220V-240V (±10%,50/BOHz)

Cabinet

Angle Adjustment:  0.25°, 1°, 2.5°, 4°, 6°, 8°, 10°
Cabinet Material: Russian birch plywood CNC made
Cabinet Colour: Black
Dimension (WxHxD): 832x295x424mm
Net Weight: 38.0Kg
