SENNHEISER XSW-D - PORTABLE ENG SET
💪 Hurry up! Low Stock



Your payment information is processed securely. We do not store or have access to your credit card details.
The utmost flexibility amongst our XS Wireless Digital Series for capturing camera audio. Plug it in, power it up, and immediately be up and running.
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with XLR and 3.5mm (1/8”) transmitters, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.
-
One touch ease-of-use
-
2.4 GHz digital transmission for worldwide operation
-
75m range (250ft) in optimal conditions
-
Up to 5 hours battery life on a single charge
-
Switch between multiple transmitters linked to one receiver
-
Configure any combination of transmitters and receivers
-
Mute from either transmitter or receiver
Specifications
-
- Dimensions
-
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mmXSW-D MINI JACK TX: approx. 86 x 24 x 28 mmXSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mmXSW-D XLR MALE RX: approx. 109 x 24 x 28 mmXSW-D MINI JACK RX: approx. 86 x 24 x 28 mmXSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mmXSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
-
- THD, total harmonic distortion
-
< 0.1 %
-
- Charging time
-
typ. 3 h
-
- Audio output
-
max. 12 dBu
-
- Operating temperature
-
-10 °C to +55 °C (14 °F to 131 °F)
-
- Signal-to-noise ratio
-
≥ 106 dB
-
- Operating time
-
up to 5 h
-
- Modulation
-
GFSK with TDMA
-
- Battery Specification
-
Li-Ion
-
- Capacity
-
850 mAh
-
- Codecs
-
aptX® Live
-
- Frequency range
-
2,400 - 2,483.5MHz
-
- Max. Input voltage
-
typ. 5.0
-
- Transmission power
-
max. 10 mW
-
- Voltage
-
3.7 V
-
- Operating relative humidity
-
95 % (non-condensing)
-
- Latency
-
< 4 ms
-
- Temperature Range
-
0 °C - 60 °C (32 °F - 140 °F)
-
- Audio frequency response
-
3.5 mm Jack/XLR: 80 - 18,000 Hz6.3 mm Jack: 10 - 18,000 Hz

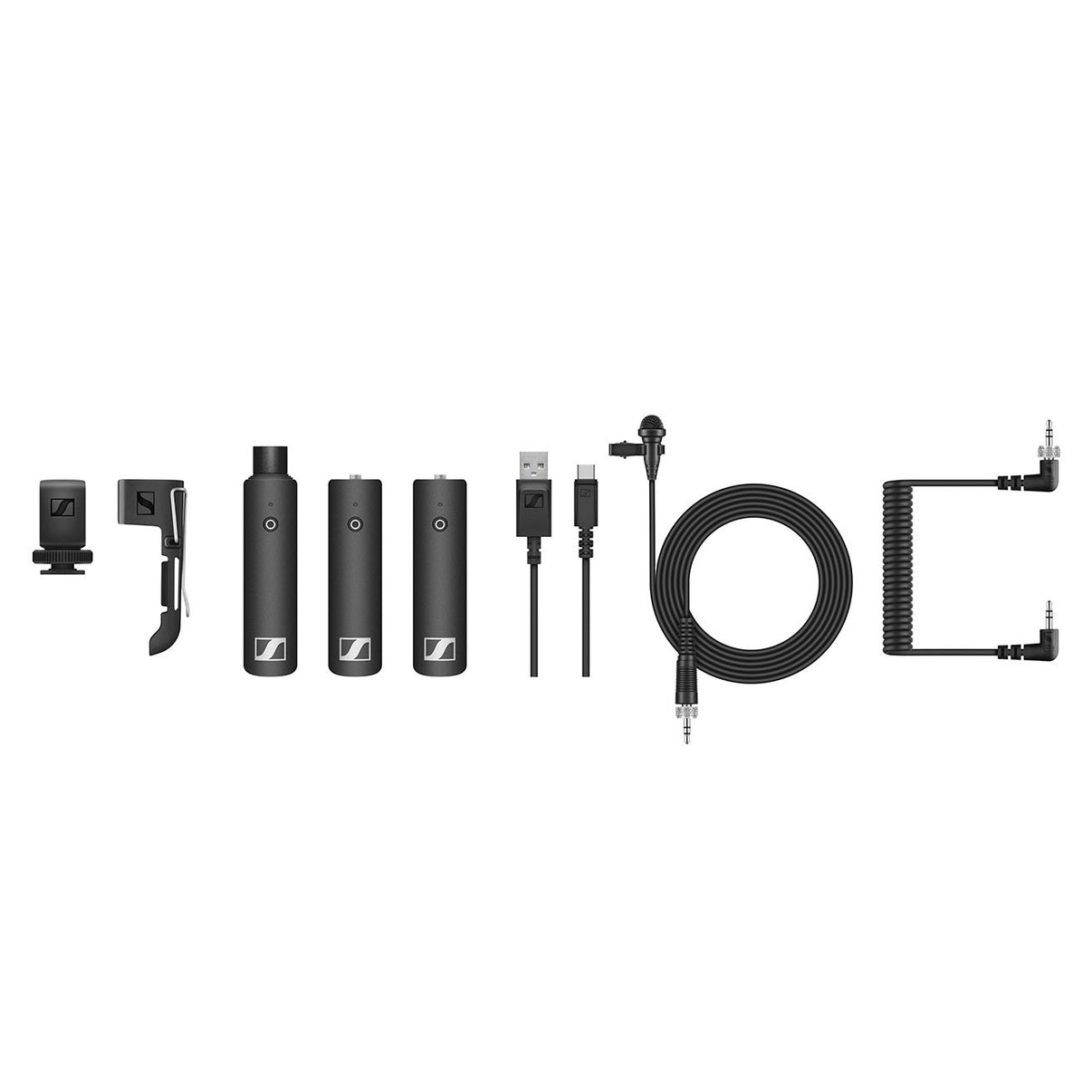

What's in the Box
- XSW-D 3.5mm (1/8”) transmitter
- XSW-D XLR Female transmitter
- XSW-D 3.5mm (1/8”) receiver
- ME2-II clip-on lavalier mic
- 3.5mm (1/8") coiled cable
- Cold shoe mount
- Belt clip
- USB-A to USB-C charging cable
