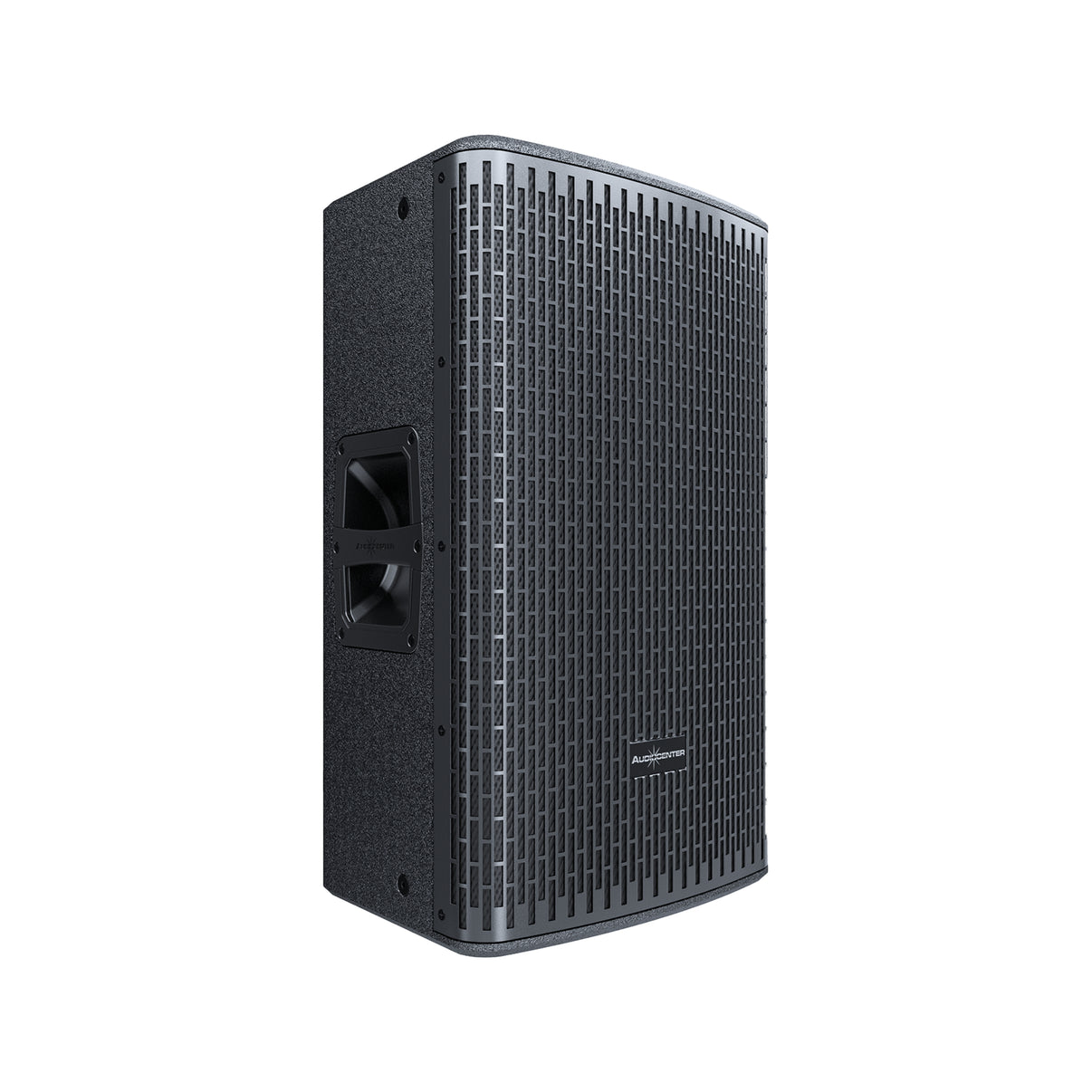

GT512A
Active DSP-controlled full range loudspeaker
Overview
The GT512A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.
The cabinet is made of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC wachined. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.
Specifications
|
Type |
Active DSP-controlled full range loudspeaker |
|
Frequency Response(-6dB) |
45Hz-20kHz |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
128dB/134dB |
|
LF |
Customized 12” driver, 3.0” voice coil |
|
HF |
Customized driver, 1.75” voice coil and 1.0”exit |
|
Horizontal Coverage |
90°/60° |
|
Vertical Coverage |
60°/90° |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
2200W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Cooling with fans, air convection |
|
DSP |
|
|
Processor |
48kHz signal sampling frequency, FIR filtering |
|
Presets |
MAIN, LF BOOST, W/SUB |
|
Output/Input |
|
|
Signal Input |
2× female XLR, Mono jack 6.35 |
|
Signal Output |
2× male XLR |
|
Power Input |
IEC power connector |
|
Working Voltage |
100V~130V or 220V~240V(±10%,50/60Hz) |
|
Power consumption (1/8 output power) |
95W |
|
Cabinet |
|
|
Cabinet Material |
CNC wachined plywood |
|
Monitor Angle |
Symmetrical 45° monitoring Angle |
|
Hanging Hardwares |
M8 screw |
|
Pole Mount |
Base hole Φ35mm, 0° or 10° options |
|
Optional accessories |
U bracket |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Dimension(W×H×D) |
355×599×349mm |
|
Net Weight |
21.0Kg |
Drawing
Graphs
Frequency Response Graphs
Normalized Isobar Plot
Suggested Application
- Multi-functional meeting room
- House of worship
- Museum
- Lecture
- DJ
- Stage Monitor
- Performance
- Wedding
