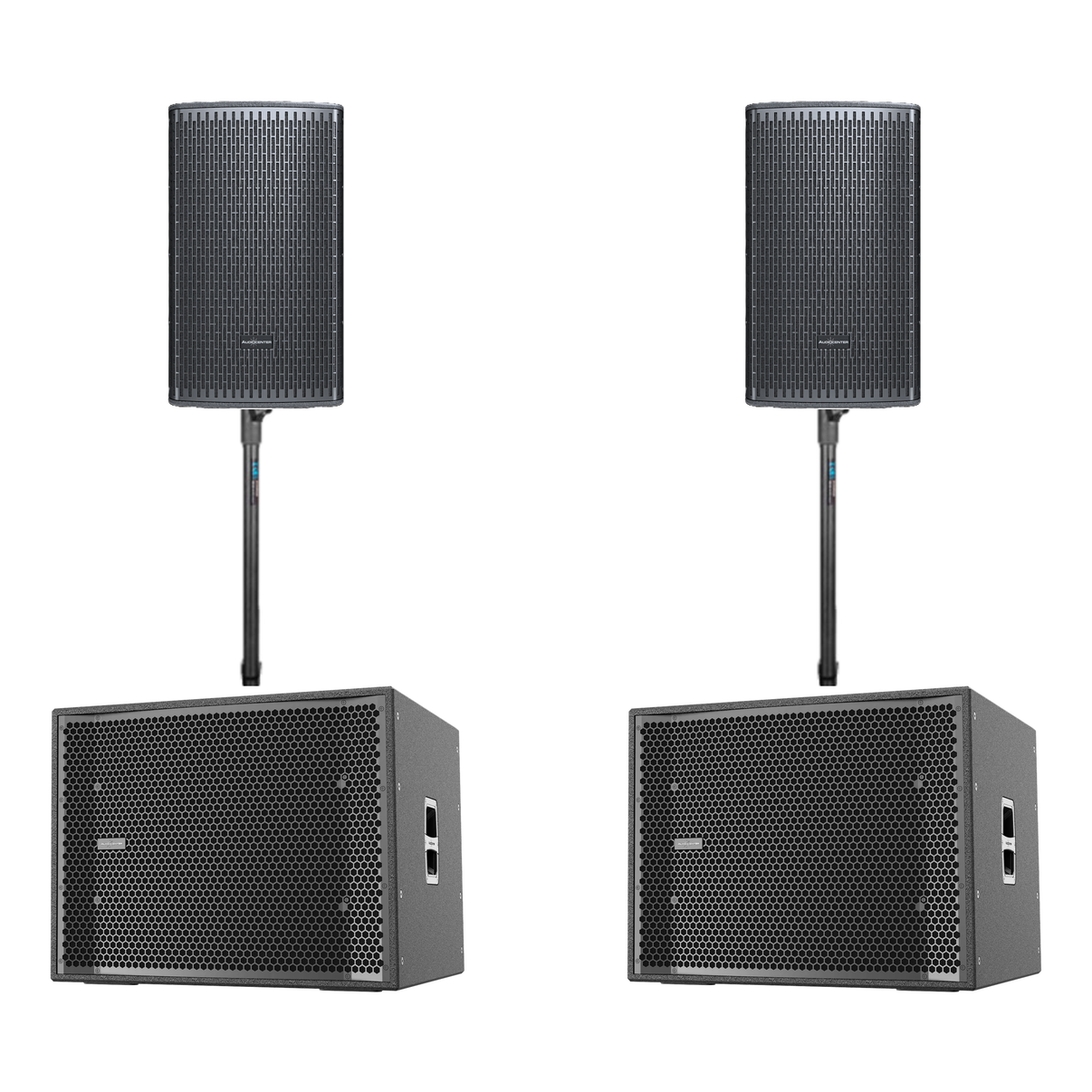

2 x GT512A
12″ Powered Full Range
2 x PRO-5118A
18″ Powered Sub bass
2 X M20 Adjustable Pole
2 X 10m XLR-XLR
2 X 2m XLR-XLR
8 X Cable Strap PC 340mm
Audiocenter GT512A
Active DSP-Controlled Full Range Loudspeaker
The GT512A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.
The cabinet is made of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.
Specifications
| Type | Active DSP-controlled full range loudspeaker |
| Frequency Response (-6dB) |
45Hz-20kHz |
| Maximum Calculated SPL (Continuous / Peak) |
128dB/134dB |
| LF | Customized 12” driver, 3” voice coil |
| HF | Customized driver, 1.0” exit, 1.75” voice coil |
| Horizontal Coverage | 90°/60° |
| Vertical Coverage | 60°/90° |
| Amplifier | Amplifier circuitry: Class D |
| Power (Peak): 2200W | |
| Frequency Response (1W 80 2ch) |
20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | <0.05% |
| Total Harmonic Distortion | <0.05% |
| Protection | DC protection |
| Short circuit protection | |
| Overheat protection | |
| Input overload protection | |
| Output overload protection | |
| Soft startup protection | |
| Overvoltage protection | |
| Undervoltage protection | |
| Cooling system | Cooling with fans, air convection |
| DSP | Processor: 48kHz signal sampling frequency, FIR filtering |
| Presets: MAIN, LF BOOST, W/SUB | |
| Output/ Input | Signal Input: 2x female XLR, Mono jack 6.35 |
| Signal Output: 2x male XLR | |
| Power Input | IEC power connector |
| Working Voltage | 100V-130V or 220V-240V (±10%,50/60Hz) |
| Power consumption ( 1 /8 output power) |
95W |
| Cabinet | Material: CNC machine plywood |
| Colour: Black is the default colour | |
| Coating: Durable Polyurea Coating | |
| Monitor Angle | Symmetrical 45° monitoring Angle |
| Hanging Hardware | MB screw |
| Pole Mount | Base hole Diameter 35mm, 0° or 10° options |
| Optional accessories | U bracket |
| Dimensions (W x H x D) |
355 x 599 x 349mm |
| Net Weight | 21kg |
AUDIOCENTER PRO-S5118A
Active subwoofer
The PRO-S5118A subwoofer comes with 3 presets (80Hz, 100Hz, Cardioid), allowing users to flexibly switch according to different usage scenarios and music styles. With two XLR inputs, it supports single – channel signal input and output, making it easy to link multiple speakers for signal distribution.
Features
High-end DSP (48 kHz sampling)
Auto sleep after 45 min no signal
Class-D amplifier
Universal power source with PFC
Advanced driver cooling system
CNC-crafted wooden cabinet
Durable polyurea coating
Supports hanging installation
