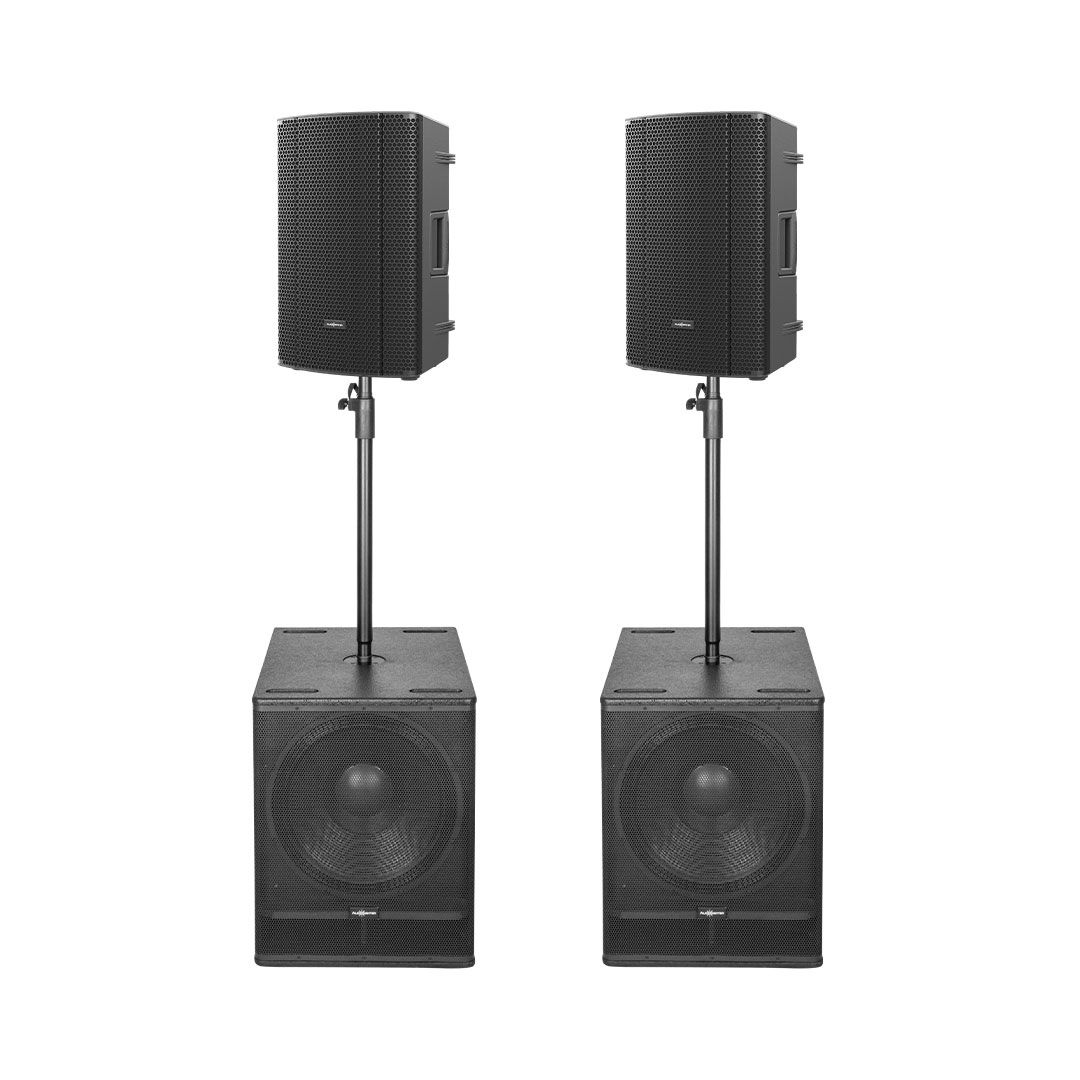

The system consists of
2 x MA12+
12″ Powered Full Range
2 x MA118
18″ Powered Sub bass
2 X M20 Adjustable Pole
2 X 10m XLR-XLR
2 X 2m XLR-XLR
8 X Cable Strap PC 340mm
Audiocenter Combo – MA Pack 1. Quick and easy set up and strike. The system will cater for 250 pax indoors; birthdays, weddings and schools etc. Great value for money. Light weight and robust design.
Audiocenter MA12+
Powered plastic-moulded 12″ speaker
The Audiocenter MA12+ full-range DSP-controlled speaker is molded from new a polypropylene composite material, with a fashionable design and supreme performance. Audiocenter BrainCore™ Technology, provides the best sound quality by analysing and processing input signal, integrated Class D amplifier and DSP module optimally, improving the audio performance of the system significantly. Built-in Bluetooth links with various smart devices easily.
The MA12+ can be used as PA speakers and stage monitors. There are multiple ways of mounting and installing, for example, pole mount with a three-feet stand, or hanging installation.
What’s New?
Bigger HF Driver
TFT Display with onboard DSP
Full Face Grill
Features
Innovative BrainCore™ technology to improve the audio performance of the system
Visual DSP Settings
Advanced Cooling System
Built-in Bluetooth 5.0 Chip
Durable and Reliable
Plug-and play, User-friendly Controls
Class D Amplifier
Big Horn
Portable Design
Elegant Physical Design
Specifications
| Frequency Response (-10dB) | 50Hz-20kHz |
| Directivity -6dB (H°×V°) | 90° × 60° |
| Maximum Calculated SPL/1M |
Continuous: 125dB |
| Program: 128dB | |
| Peak: 131dB | |
| HF Driver | Customized driver,1.75” voice coil,1.0” exit |
| LF Driver | Customized 12” driver, 2.5” voice coil |
| DSP | Processor: 48kHz signal sampling frequency |
| Presets: MUSIC, FLAT, SPEECH, W/SUB | |
| Amplifier | Class D |
| Power(RMS standards): 800W | |
| Peak Power: 1600W | |
| Frequency Response (1W 8Ω 2ch): 20Hz-20kHz(±0.5dB) |
|
| Intermodulation Distortion, (20Hz-20kHz, half power): <0.05% | |
| Total Harmonic Distortion (20Hz-20kHz，Rated power 8Ω): <0.05% |
|
| Cooling | Cooling with fans, air convection |
| Protection | DC protection, Short circuit protection, Overheat protection, Output overload protection, Soft startup protection, Overvoltage protection, Undervoltage protection |
| Signal Input Connector | Female XLR(Mono jack 6.35), 3.5mm Jack Input, Wireless bluetooth |
| Signal Output Connector | Male XLR mixed output or balanced output |
| Power Input | XLR mixed output or balanced output IEC power connector |
| Working Voltage | 100-240V~ (±10%,50/60Hz） |
| Power consumption (1/8 output power) | 55W |
| Cabinet | New polypropylene composite material |
| Cabinet Colour | Black |
| Grille | Iron mesh |
| Handles | 1 side, 1 top |
| Monitor Angle | Symmetrical 45° monitor angle |
| Pole Mount | Base hole Φ35mm |
| Dimension (W×H×D) |
381 x 582 x 343mm |
| Net Weight | 16.0kg |
Features
