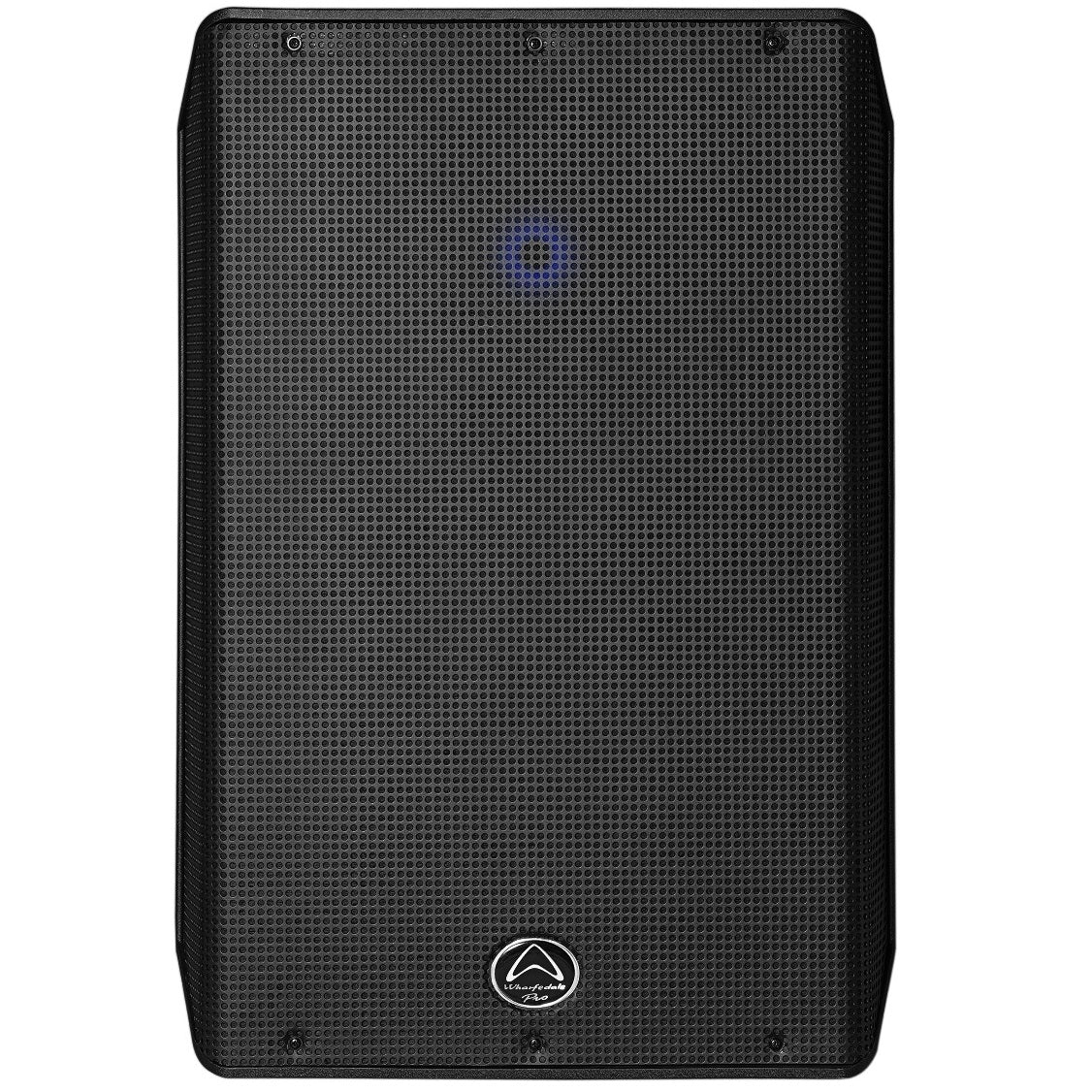

15″ 2-Way Active Speaker w/ DSP/BT
- 15" Plastic Active loudspeakers
- Class leading power – blow them away!
- Internal 4-position DSP
- Custom Wharfedale Pro drivers
- Full steel front grill
- Multiple handles
- Multiple rigging points
- Class D Bi-amplified
- Bluetooth models with TWS Linking
- 15″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 770 w Continuous
- 1540 w Peak
- 130 dB Max SPL @ 1 meter
- Huge 3.0″ LF voice coil
What people say....
“We had one pair of 12” Typhons on stage as centre fill. There was also another more expensive brand of speaker flown above stage, a 2 x 15 and horn each side, we were running the system quite hard. When I told the other sound tech it was only the 2 Typhons we were hearing he was in disbelief… he was sure it was the other brand of 2 x 15 and horn, we were both really amazed with their sound and power.”
Mark Langfield, Hot Ice Productions
Behind the grill
Custom Wharfedale Pro transducers have been selected for Typhon.
The custom compression driver features a large 1.75” voice coil. This is coupled to a 100° x 80° waveguide for smooth HF dispersion.
The custom Wharfedale Pro LF transducers have a newly designed ferrite core, use flat coil windings to aid cooling, and feature a moisture rejecting cone material which allows Typhon to be used in damp or humid conditions.
In fact…..all Typhon loudspeakers are IP54 Certified !
Lets look inside
Just like all other Wharfedale Pro plastic active loudspeakers, Typhon uses the largest HF voice coils in their class. All models use a 1.75″ coil HF compression driver.
These custom made Wharfedale Pro compression driver delivers crisp and precise high frequencies, even at extreme volumes.
The internal amplifiers of Typhon have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.
HARDWARE
A completely new polypropylene cabinet design with a full frontal steel grille houses the most advanced active loudspeakers ever created by Wharfedale Pro.
This injection moulded cabinet is carefully engineered to feature 5 carry handles making transportation easy and well balanced.
For on stage or for fixed installation, the carefully designed hardware of Typhon makes setup and positioning easy and effective.
Need to wall mount or fly? With 9 x M8 rigging points and a 35 mm pole socket compatible with the WPB-2 bracket, Typhon fits almost anywhere.
We are not fans...of fans
ssssssh ! Just like all other Wharfedale Pro plastic active loudspeakers, the two amplifiers inside a Typhon are extremely efficient.
So efficient that they can use convection cooling. This means that there are no fans!
Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues. Typhon has no fan! Ssssssh! – Silent and reliable operation.
IP54 Certified
All Typhon loudspeakers are IP54 Certified. IP54 certification assures that the product has
– Limited protection against dust ingress.
– Protection against splash water from any direction.
The picture shows some of the extreme testing that goes into Typhon series certification. All of this means that you can have full confidence installing a Typhon in extreme conditions.
DSP
New internal DSP algorithms generate a sound stage which surpasses the dimensions of the cabinet.
FLAT ; The Flat mode is ‘the truth’. This mode is ideal for when connecting guitar effects processors directly to a Typhon-AX12. Full Range, Flat Response. Simply YOUR sound.
MONITOR ; This mode rolls of low frequencies which are not needed when Typhon-AX12 is on the floor. High frequencies are also attenuated to reduce risk of feedback.
BASS ; By pushing the bass frequencies, this mode is ideal when Typhon-AX12 is being used at lower volumes. It delivers a more powerful sound without having to turn the volume up.
PUNCH ; A ‘crisp’ and ‘tight’ DSP mode which gives the impression of power and tightness. Use this when you really need to cut through.
BLUETOOTH and TWS Linking
The Typhon “BT” models feature aptX Bluetooth input connectivity and TWS linking which makes setup with mobile devices simple and cable free.
Simply pair your Bluetooth audio source (such as a smartphone or laptop) with a Typhon “BT” model and thats it! High quality aptX streaming makes connection easy.
Typhon “BT” models however also features a TWS LINK mode. This allows two Typhon “BT’s” to communicate with each other to create a wireless stereo pair.
AWARD WINNING !
Typhon-AX12-BT won the Editors’ Choice awards for best PA Active Loudspeaker of the year from the expert media in Vietnam !!
The judges, made from experts and journalists, reviewed Typhon-AX12-BT and said it was outstanding compared to other competitive products in its category.
TYPHON TOUR BAGS
Made from durable nylon and with a thick inner padding, this tourbag allows 12” Typhons (Typhon-AX12 and Typhon-AX12-BT) to be used in extreme conditions – protecting the Typhon during transportation. The tour bag has been designed to give full access to the handles and the rear panel connectors and controls. A removable front cover allows the Typhon to be used while inside the tourbag.
Durable, accessible and printed with the iconic Wharfedale Pro logo, the Typhon 12” tourbag is attractive and practical.
PERFECT PAIRING
A perfect partner for a Typhon is the 15″, 700 watts continuous, T-Sub-AX15B.
Used with a Tourus, a Titan or our flagship Typhon models, T-Sub-AX15B completes the system – bringing new levels of bass to the setup.
Specifications
Model Name Typhon-AX15-BT
System Type Active 15″ 2-way
Frequency Response (+/-3 dB) 45 Hz-20 KHz
Frequency Range (-10 dB) 40 Hz-20 KHz
Maximum SPL (peak @1 m) 130 dB
Sensitivity (@ 1 W / 1 m) 99 dB
Low Frequency Transducer
Size (mm / inches) 381 mm / 15″
Voice-Coil Size (mm / inches) 75 mm / 3.0″
Rated Impedance 4 Ω
High Frequency Transducer
HF Driver Type: Compression Driver
Coil Size (mm / inches) 44 mm / 1.75″
Exit Size (mm / inches) 25 mm / 1″
Diaphragm Material Titanium
Rated Impedance 8 Ω
Nominal Coverage (H x V) Hybrid Symmetry Horn
100° x 80°
Amplifiers 2 x Class D
Power Rating: 1540 W Peak (1300 W LF +
240 W HF), 770 W Continuous
(650 W LF + 120 W HF)
DSP Controls—D-EQ FLAT/MONITOR/BASS/PUNCH
Amplifier Protection
Power On Protection Yes
Thermal Protection Yes
Low Line Voltage Shut Down Yes
Driver Protection Yes
DC Protection Yes
Short Protection Yes
Clip Limiter Yes
Limiter Indicator Yes
Power Indicator Yes
Inputs
Input A – type Balanced/Bluetooth (aptX with link Stereo)
Input Sensitivity 775 mV(0 dBu)
Maximum Input Level 4 V
Input Connector 2 x XLR, 2 x 6.3 mm jack (Line/MIC)
Input Impedance 20 K ohms
Line Output
Line Output Connector XLR
Loop Gain 0 dB
AC Power details
Power Supply 220~240 V AC/100~120 V AC 50/60 Hz
Rigging / Bracket / Mounting Options 9 x M8 threaded inserts
Pole-mount receptacle with lock screw
Optional WPB-2 wall-mount bracket
Handles 2 carry handles (on top and bottom side)
Enclosure
Enclosure Material and finish Injection Moulded Polypropylene
Colour Options Black paint
Grille Material & Finish steel
Dimensions – Unpacked
Height 697.7 mm / 27.5″
Width Front 480 mm / 18.9″
Width Rear 186.2 mm / 7.3″
Depth 400 mm / 15.7″
Dimensions – Packed
Height 788 mm / 31.02″
Width Front 550 mm / 21.9″
Width Rear 550 mm / 21.9″
Depth 475 mm / 18.7″
Net Weight (kg / lbs) 27.3 kg / 60.06 lbs
Gross Weight (kg / lbs) 30.0 kg / 66 lbs
