    Shure SLXD14E/153T

    Vendor: Station Vibration Type: Misc
    Wireless System with SLXD1 Bodypack Transmitter and MX153T Earset Headworn Microphone Key Features For Presenters and Performers MX153 Omni Subminiature Earset Mic (Tan) Lightweight Bodypack Transmitter Digital Predictive-Diversity Receiver 1760...
    Regular Price R 19,000.00
    Tax Included.

    💪 Hurry up! Low Stock

    Frequency: G59
    Pairs well with
    Shop Online With Nationwide Delivery
    Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa
    Shop Online & Pickup In-Store
    Payment & Security

    Your payment information is processed securely. We do not store or have access to your credit card details.

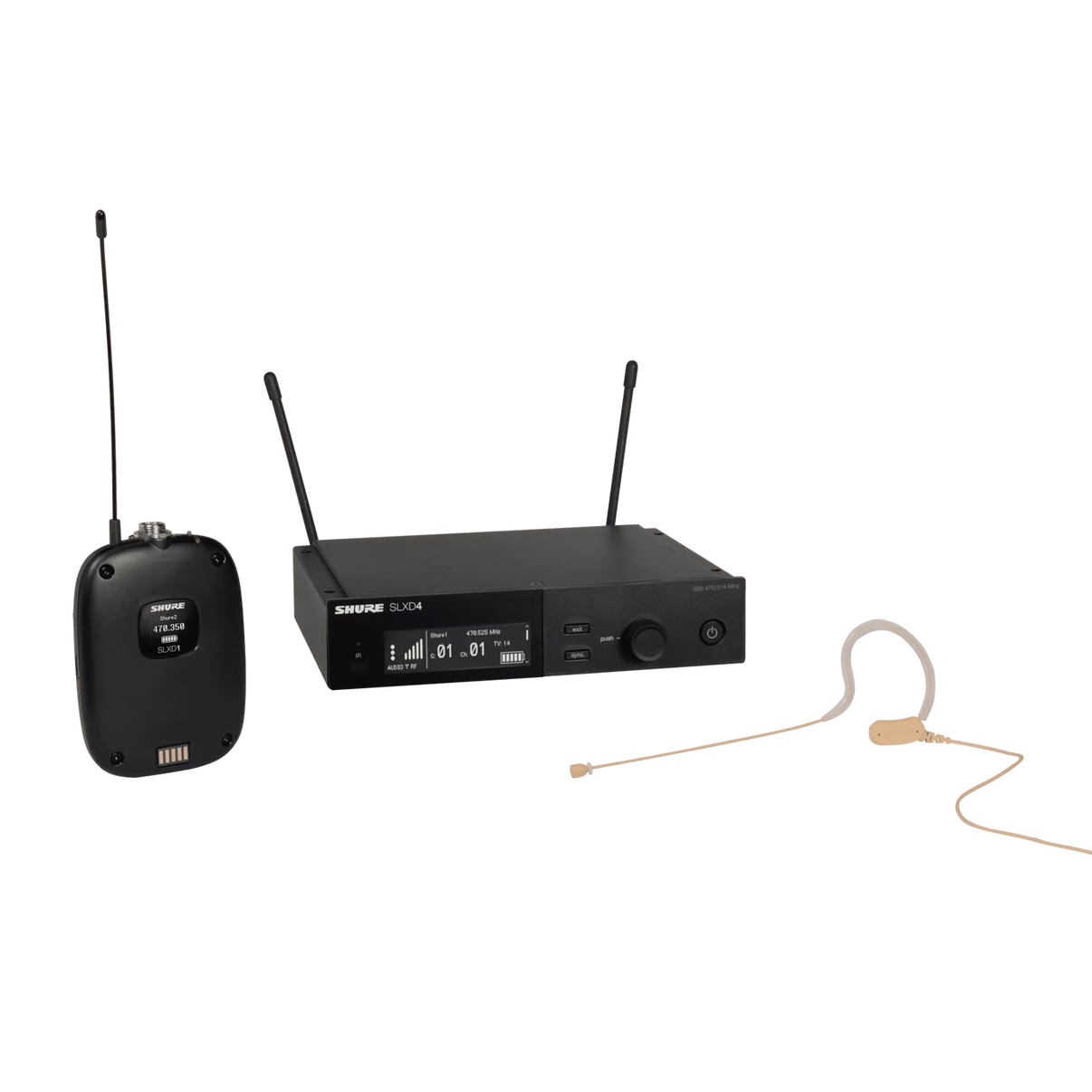

      Wireless System with SLXD1 Bodypack Transmitter and MX153T Earset Headworn Microphone

      Key Features
      • For Presenters and Performers
      • MX153 Omni Subminiature Earset Mic (Tan)
      • Lightweight Bodypack Transmitter
      • Digital Predictive-Diversity Receiver
      • 1760 Auto-Scan Frequencies
      • 1/10mW RF Power
      • High-Contrast LCD Screen
      • Ethernet for Group Scans & Local Control
      • Compatible with 8-Hr Rechargeable SB903
      • Expandable to 32 Mic Channels/330' Range

      The Shure SLXD14/153T offers presenters, instructors, clergy, and performers a wireless earset microphone system that's dependable, easy to set up, and features crystal-clear digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs and long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

      The SLX-D operates in the UHF band to transmit high-quality 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

      This configuration comes with a tan MX153 omnidirectional subminiature earset microphone. The earset's ultralightweight, comfortable, and flexible design is discreet, stable, and easy to place over either ear, while the mic delivers natural vocal reproduction for a wide variety of applications. The compact bodypack transmitter features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

      The all-metal, rackmount SLXD4 receiver offers an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

      With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links them together for quick, coordinated frequency scans from a single receiver.

      Lightweight Bodypack Transmitter with Earset Mic for Hands-Free Presentations
      • The low-profile MX153 condenser earset microphone is built to deliver a natural vocal sound, especially when improved gain before feedback over lavalier microphones is desired.
      • The mic's omnidirectional polar pattern offers enhanced plosive protection with no proximity effect.
      • Commshield RF Filtering minimizes RF interference from nearby smartphones, and the tailored frequency response is optimized for speech intelligibility.
      • The earset mic plugs into the locking TA4M connector on the compact SLXD1 bodypack transmitter.
      • The rugged, plastic transmitter has a belt clip that attaches to the talent’s clothing and an LCD that shows essential information.
      Transparent Digital Sound, Dependable Performance, and More Mics
      • The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound for your events.
      • The system operates in the H55: 514 to 558 MHz UHF band with a 44 MHz tuning range and 1760 selectable frequencies, far away from potential Wi-Fi interference in the 2.4 GHz band.
      • Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas before dropouts occur.
      • With a very-low latency of 3.2 ms, the system is ideal for applications that require live sound reinforcement.
      • The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
      • Up to 10 compatible systems per 6 MHz TV band and 12 systems per 8 MHz band are supported.
      • Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.
      Ready to Rackmount, Easy to Use
      • Housed in a tough, half-rack metal chassis with detachable antennas, the SLXD4 receiver is a great fit for A/V installations or as part of a portable rackmount rig—ready to travel to a meeting or event.
      • The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
      • Intuitive front-panel controls and a high-contrast LCD screen with audio and RF meters makes set up a snap.
      • The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
      • The receiver offers up to 60 dB of adjustable gain and the display shows you where the ideal level should be.
      Optional Rechargeable Battery Management
      • Adding the SB903 lithium-ion rechargeable battery, along with an SBC10-903 single charger or an SBC203 dual-docking charger, offers a cost-effective and environmentally friendly alternative to throwing away AA batteries (batteries and charger available separately).
      • Using the SB903 battery and SBC203 charger simplifies the task of keeping multiple transmitters charged and ready—you can even recharge the battery while still in the transmitter.
      • When powered by an SB903, the transmitter displays the remaining battery life in hours and minutes.
      Enhance the Reliability of Your System
      • Adding UA874 active antennas or PA805SWB passive antennas increases the range of your system and offers increased protection against interference.
      • The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.
      A Variety of Mics and Transmitters Available
      Shure offers numerous lavalier, headset, and handheld microphone options to adapt your SLX-D system as your needs evolve.
      • The SM35 is a comfortable, durable headset microphone for active performance.
      • The WL183 omnidirectional lavalier mic is a clip on mic that offers consistent pickup even when the talent turns away from the mic.
      • The WL184 supercardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
      • The SLXD2 handheld transmitter is available with several mic capsules choices for presenters who prefer the flexibility of a handheld microphone.



      Shure SLXD14/153T Specs

      Key Specs
      Wireless Technology
      Digital UHF
      Diversity
      Yes, True Diversity
      Max Operating Range
      328' / 100 m
      Receiver Type
      1x Tabletop/Rack-Mountable
      Number of Audio Channels
      1
      Included Transmitters
      1x Bodypack
      Microphone Type
      1x Earset
      System
      Wireless Technology
      Digital UHF
      Diversity
      Yes, True Diversity
      RF Frequency Band
      H55: 514 to 558 MHz
      Number of RF Channel Frequencies
      1760
      Max Operating Range
      328' / 100 m
      Max Transmitters per Band
      32
      Dynamic Range
      120 dBA (Typical)
      Latency
      3.2 ms
      Encryption
      No
      Built-In Recorder
      No
      Timecode Support
      No
      Mobile App Compatible
      Yes: Android & iOS
      App Name: ShurePlus Channels
      Functionality: Remote Control
      Receiver
      Receiver Type
      1x Tabletop/Rack-Mountable
      Mounting Options
      Rackmount (with Included Hardware, 1 U Half-Rack)
      Antenna
      2x Removable BNC 1/4 Wave External (Rear-Mount)
      Number of Audio Channels
      1
      Audio I/O
      1x XLR 3-Pin Balanced Mic/Line Output
      1x 1/4" TRS Balanced Output
      Network I/O
      1x RJ45 (Manual IP, DHCP)
      USB/Lightning Connectivity
      No
      Gain Range
      0 to +21 dB (3 dB Steps)
      Frequency Response
      20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
      Display
      Backlit LCD
      Power Requirements
      AC/DC Power Adapter
      Transmitters
      Included Transmitters
      1x Bodypack
      RF Output Power
      10 / 1 mW (Selectable)
      Antenna
      Fixed 1/4 Wave External
      Input Level
      Microphone / Instrument
      Audio I/O
      1x TA4M/Mini-XLR 4-Pin Male Input (on Bodypack Transmitter)
      USB I/O
      No
      Muting
      Mute Switch
      Gain Range
      0 to +21 dB
      Auto-Level/Gain
      No
      Sync Method
      IR
      Display
      OLED
      Microphones
      Microphone Type
      1x Earset
      Polar Pattern
      Omnidirectional
      Frequency Response
      20 Hz to 20 kHz
      Maximum SPL
      107 dB
      Sensitivity
      -41 dBV/Pa
      Output Connector
      1x TA4F/Mini-XLR 4-Pin Female
      Cable Length
      4' / 1.22 m
      Color
      Tan
      Power
      Transmitter Battery Type
      2x AA (Included) or
      1x Shure SB903 (Not Included)
      Transmitter Battery Life
      8 Hours (Lithium Shure SB903)
      8 Hours (Alkaline)
      Battery Charging Time
      1.25 to 5.5 Hours
      AC/DC Power Adapter
      15 VDC at 600 mA, Center-Positive (Included)
      Input Power
      15 VDC at 600 mA
      100 to 240 VAC, 60 / 50 Hz
