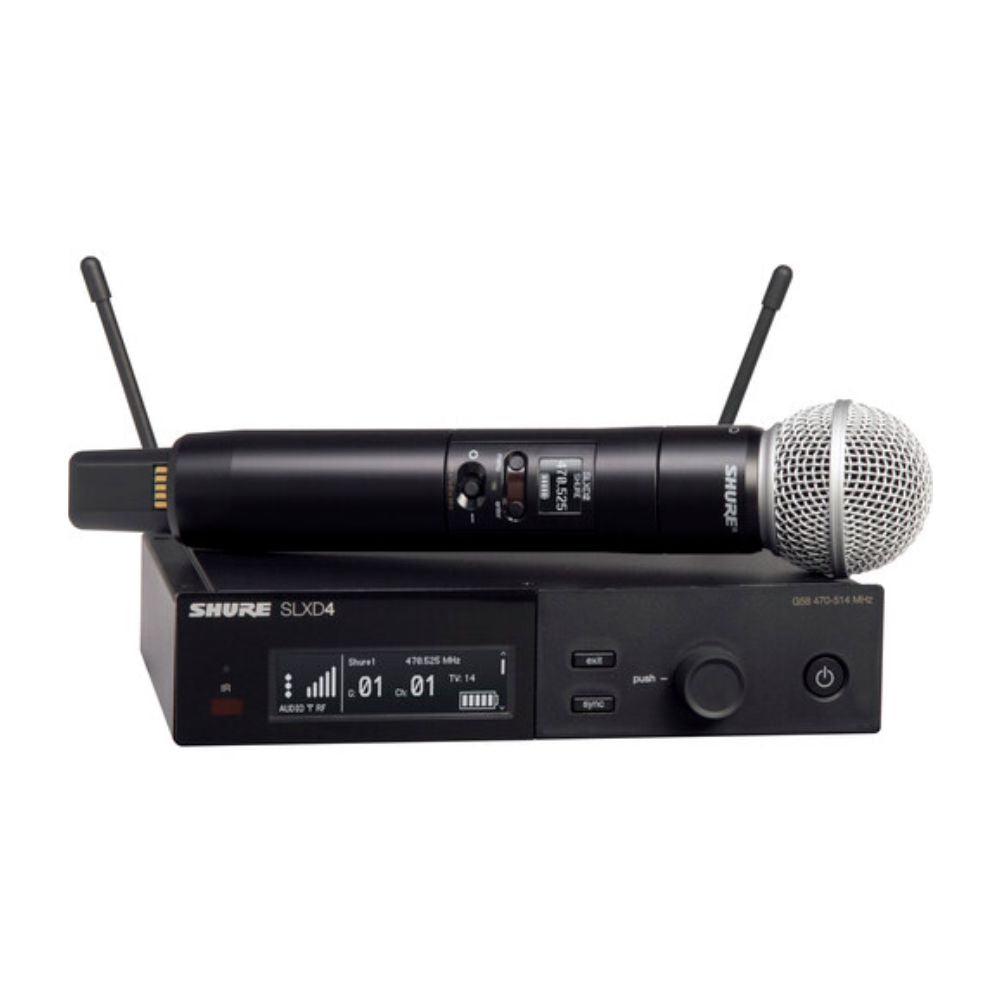

Wireless System with SM58^® Handheld Transmitter

Overview

Featuring the legendary SM58® Cardioid Dynamic Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

Details

The SLXD24/SM58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/SM58 handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

Shure SLXD24 Specs

Key Specs
Wireless Technology
Digital UHF
Diversity
Yes, True Diversity
Max Operating Range
328' / 100 m
Receiver Type
1x Tabletop/Rack-Mountable
Number of Audio Channels
1
Included Transmitters
1x Handheld
Microphone Type
1x Handheld with Interchangeable Capsule (SM58 Included)
System
Wireless Technology
Digital UHF
Diversity
Yes, True Diversity
RF Frequency Band
G58: 470 to 514 MHz
Number of RF Channel Frequencies
1760
Max Operating Range
328' / 100 m
Max Transmitters per Band
32
Dynamic Range
120 dBA (Typical)
Latency
3.2 ms
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
Yes: iOS Only
App Name: Boxcast
Functionality: View Live Feed
Receiver
Receiver Type
1x Tabletop/Rack-Mountable
Mounting Options
Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna
2x Removable BNC 1/4 Wave External (Rear-Mount)
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Balanced Mic/Line Output
1x 1/4" TRS Balanced Output
Network I/O
1x RJ45 (Manual IP, DHCP)
USB/Lightning Connectivity
No
Gain Range
0 to +21 dB (3 dB Steps)
Frequency Response
20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Display
Backlit LCD
Power Requirements
AC/DC Power Adapter
Transmitter
Included Transmitters
1x Handheld
RF Output Power
10 / 1 mW (Selectable)
Antenna
Internal Single-Band Helical
Input Level
Microphone
Audio I/O
No
USB I/O
No
Muting
No
Gain Range
0 to +21 dB
Auto-Level/Gain
No
Frequency Response
20 Hz to 20 kHz (Dependent on Mic)
Sync Method
IR
Display
OLED
Microphone
Microphone Type
1x Handheld with Interchangeable Capsule (SM58 Included)
Polar Pattern
Cardioid
Frequency Response
50 Hz to 15 kHz
Maximum SPL
146 dB
Sensitivity
-54.5 dBV/Pa
Color
Black
Power
Transmitter Battery Type
2x AA (Included) or
1x Shure SB903 (Not Included)
Transmitter Battery Life
8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
Battery Charging Time
1.25 to 5.5 Hours
AC/DC Power Adapter
15 VDC at 600 mA, Center-Positive (Included)
Input Power
100 to 240 VAC, 60 / 50 Hz
Physical
Environmental Resistance
No
Housing
Aluminum (Transmitter)
Metal (Receiver)
