PRODUCT HIGHLIGHTS
- 1" True Condenser Capsule
- Cardioid Polar Pattern
- -20 dB Pad
- Low-Cut Filter at 300 Hz
- 155 dB Maximum SPL
- All-Metal Body
- Spider Shockmount
- Aluminum Carry Case

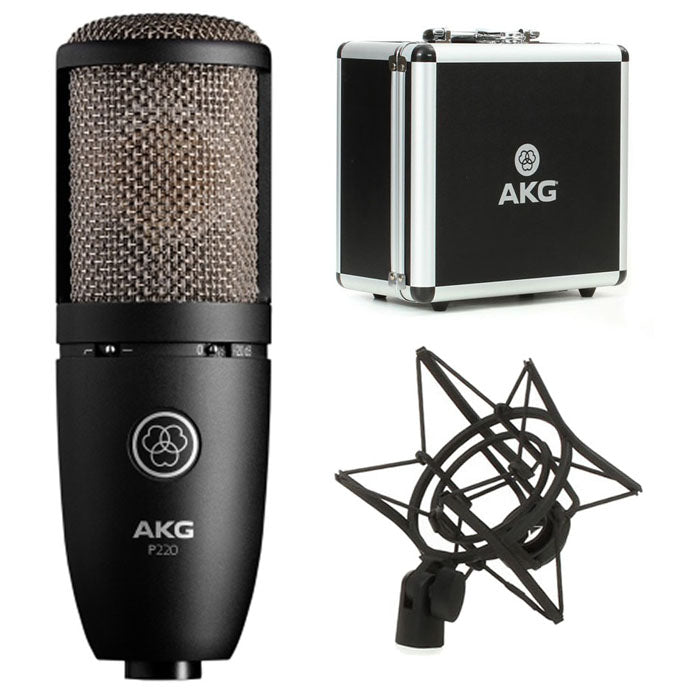

AKG P220 Overview
For a variety of miking applications including lead vocals, acoustic guitar, and brass instruments, the blackProject Studio P220 Large Diaphragm Condenser Microphone from AKG features a 1" true condenser capsule with a cardioid polar pattern. A low-cut filter at 300 Hz allows you to cut unwanted low end from your sources, while its selectable -20 dB pad allows the mic to handle SPLs up to 155 dB, allowing it to be placed in front of a variety of sources. A spider shockmount and aluminum carry case are included.
AKG P220 Specs
| Capsule | 1" True Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | 20 MV/PA (-34 dBV) |
| Maximum SPL | 135/155 dB (0/-20 dB Pad) (0.5% THD) |
| Equivalent Noise Level | 16 dB(A) (IEC 60286-4) |
| Signal to Noise Ratio | 78 dB(A) Re 1 PA |
| Pad | -20 dB |
| Low Cut Filters | 300 Hz, 12 dB/Octave |
| Impedance | Electrical Impedance: ≤ 200 Ω Recommended Load Impedance: ≥ 1000 Ω |
| Connector | 3-pin XLR (pin 2 hot) |
| Phantom Power | 48 V ± 4 V to (IEC 61938) |
| Current Consumption | ≤ 3 MA |
| Temperature Range | 14 to 140°F (-10 to 60°C) |
| Packaging Info | |
|---|---|
| Package Weight | 4.25 lb |
| Box Dimensions (LxWxH) | 9.4 x 8.9 x 5.2" |
