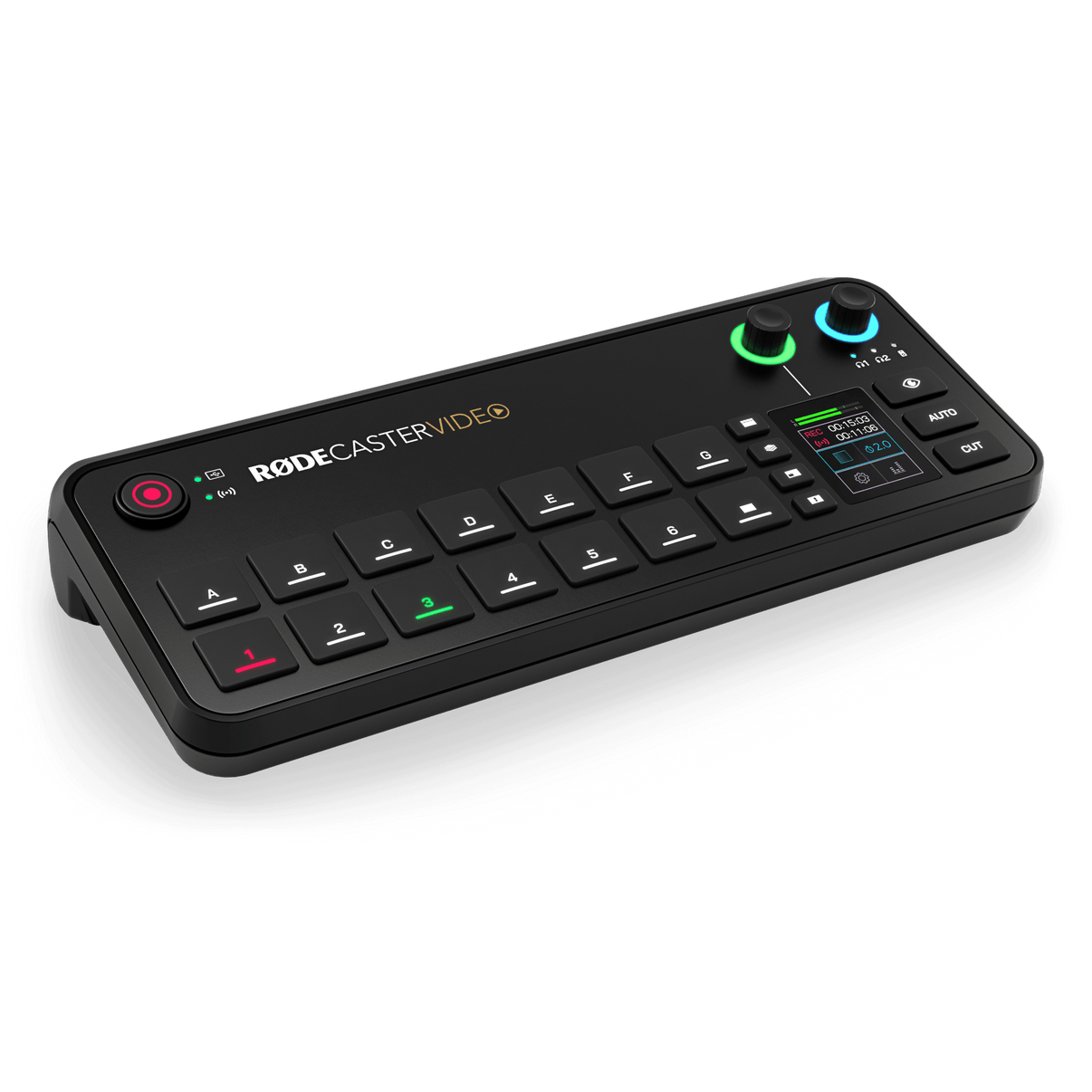

Video and Audio Production Console
- Switch between up to six video sources and seven fully customisable scenes at the press of a button
- High-performance octa-core CPU video and audio processor
- Four full HD (1080p) HDMI inputs with auto frame rate conversion and two configurable HDMI outputs for viewing program, preview and multiview
- Two flexible USB-C ports for connecting compatible webcams and RØDE USB audio devices to use as additional video and audio sources
- Two studio-grade Neutrik® combo jacks with ultra-low-noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Ability to create seven complex scenes with multiple layers of video, media and graphics, which can be saved and triggered at the touch of a button
- Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs
- Media playback, graphic overlays, keying, transitions and multi-source scene creation all accessible from the front panel
- Innovative "Inspect" feature for quick-and-easy preview and configuration of any input or scene
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Stream directly to all major platforms via Wi-Fi or Ethernet, or to streaming software via USB
- Record directly to external USB storage device, including isolated (ISO) recording for post-editing flexibility
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDE Central
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
- Built-in NDI® support delivers seamless video-over-IP with up to four inputs and one output via Ethernet, plus iPhone integration through the RØDE Capture app.
1 x RØDECaster Video
2 x External Antenna
1 x Power Supply
1 x SC27
BROADCAST GRADE VIDEO
STUDIO QUALITY AUDIO
STREAMING AND RECORDING
FLEXIBLE INPUT
All-in-One, All at Once
The ultimate all-in-one content creation tool, the RØDECaster Video is the first in its class to seamlessly blend comprehensive video and audio production into a single, compact device. Offering unmatched flexibility in switching, mixing, processing, recording and streaming multiple video and audio sources at once, it is the perfect centrepiece for any content creation setup.
For Anyone and Everyone
With its wide array of connectivity options and its completely customisable architecture, the RØDECaster Video can be tailored to meet your exact needs, no matter what kind of video production you do.
Video Podcaster
Live Streamer
Broadcaster
Professional Production Made Simple
It’s never been easier to create professional productions with incredible video and audio. The RØDECaster Video’s intuitive interface and dynamic touchscreen give you hands-on control of every element of your show, from switching video and configuring complex multi-source layouts to mixing and processing your audio.
Features
1) Input and Scene Buttons
Switch between video sources or fully customised scenes with the touch of a button.
2) Function Buttons
Quickly and simply access media playback, graphic overlays, multi-source layouts and chroma keying.
3) Touchscreen and Encoders
Control and configure your production with the intuitive touchscreen and versatile encoder.
4) Inspect Button
Preview and configure any input or scene on-the-fly with the innovative Inspect button.
5) USB Video and Audio
Connect up to two compatible webcams or RØDE USB microphones via USB 4 and 5 for additional video and audio options.
6) HDMI Inputs and Outputs
Capture up to four HDMI video sources and monitor your production with preview, multiview or program feeds.
7) Headphone and Speaker Outputs
Monitor your audio with speakers or two pairs of headphones, each with custom mixes and levels.
8) Revolution Preamps™
Record XLR and 1/4-inch equipment in stunning detail with the ultra-low-noise, high-gain Revolution Preamps™.
Switch it Up
With simultaneous control over six different video feeds, the RØDECaster Video allows you to seamlessly switch between cameras, consoles and other visual inputs to fully immerse your audience in your show. Cut between your shots instantly or apply tasteful fades, dips and wipes with fully customisable transitions – you can even sequence your show with live previews of each feed before you make the switch.
Set the Scene
The RØDECaster Video is the first of its kind to offer an intuitive scene-based switching architecture, making it easier than ever to customise and configure complex video arrangements and switch to them at the press of a button.
Integrated Professional Audio
With the ability to mix, process and route up to nine audio sources at once, the RØDECaster Video sets a new standard for power and flexibility in audio production. Each channel has access to a full suite of studio-grade effects and processors powered by APHEX®, allowing you to sculpt your dream sound and deliver polished, professional results every time.
Expanded USB Inputs
The RØDECaster Video features two flexible USB-C ports for expanding your production with extra video and audio devices. You can connect compatible USB webcams, capture cards and other UVC video devices, as well as RØDE USB microphones and even the RØDECaster Pro II and RØDECaster Duo!
Always Evolving
Now with NDI®️ support, PTZ camera control and advanced auto-switching, the RØDECaster Video makes multi-cam podcasting and streaming effortless. NDI integration also extends to the RØDE Capture app, instantly turning your iPhone’s front and rear cameras into a professional, multi-angle source.
Hands-free Auto-Switching
Don’t have a producer? Intelligent auto-switching technology will automatically switch your camera angles depending on who’s talking – perfect for video podcasts, panel shows, and other live discussions.
Comprehensive Multiview
The RØDECaster Video’s multiview display provides a comprehensive overview of all your production’s critical information in one screen. With previews of every input, scene and feed, alongside recording, streaming and audio information, you can be confident you have complete control of your show.
Form Follows Function
The RØDECaster Video provides immediate access to a wide range of creative tools with its four function buttons, giving you unprecedented hands-on control over advanced video techniques and quick access to your graphics and media.
Media Player
Integrate video files, images and sounds into your production with ease.
Graphics Overlay
Access and arrange custom logos, watermarks, lower-thirds and other graphic assets.
Multi-source Layouts
Configure multiple video sources into arrangements such as picture-in-picture, split screen and more.
Automatic Keying
Apply an automatic chroma key to your input – it’s never been easier to set up a green screen.
Record On-Board
You can capture your entire video and audio production directly to a connected hard drive or USB storage device, and the option to record each video and audio source independently provides ultimate flexibility in post-production.
Stream to Your Favourite Platform
Stream your show directly to Twitch, YouTube or your favourite streaming platform via Wi-Fi or ethernet and use custom audio routing to send a completely different mix to your audience, your headphones and your recording.
Intuitive Interface
The large high-resolution touchscreen and versatile rotary encoder provide intuitive hands-on control over every aspect of your production, from applying transitions and previewing your inputs to adjusting volume levels and configuring settings.
Wireless Remote Control
For setups where you can’t be close to the console, the RØDECaster Video boasts complete wireless remote control via the RØDECaster app, allowing you to switch inputs, adjust settings and configure complex scenes from your computer.
Enhanced by the
RØDECaster App
The RØDECaster App is the ultimate companion software for the RØDECaster Video. Craft the perfect multi-camera layout with the scene builder, take control over all your audio sources at once with the audio mixer and access advanced configuration settings to craft the perfect production.
OS Requirements: macOS 11 or later; Windows 10 Version 1803 or later.
Master Your RØDECaster
Learn everything there is to know about the RØDECaster Video with our comprehensive user guide. From the basics of video switching to advanced recording and streaming applications and everything in between.
Specifications
Audio
USB 1:
2-in/2-out or multichannel (20-in) output
USB 1 Chat (uses USB 1 port):
2-in/2-out with mix-minus
USB 2:
2-in/2-out with MFi support
USB 4 & 5:
compatible with RØDE USB microphones and RØDECaster Pro II and Duo
2 headphone outputs (1/4-inch)
2 balanced line outputs (1/4-inch, L/R)
20 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), wireless 1 and 2, video clips, sounds, HDMI 1, 2, 3 and 4 (each can be split for two mono), Bluetooth,3 USB audio interfaces (computers), 2 hosting USB audio devices (microphones)
12 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, monitors, USB Main, USB Chat, USB 1, 2, 4 and 5, Bluetooth
Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs
APHEX® VoxLab™ Processing: per channel
Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™
Frequency range: 20Hz – 20kHz
Input gain: up to 76dB Input
Equivalent Input Noise:
-131.5dBV (A-weighted)
Streaming, Recording and Software
- Youtube Live
- Twitch Live
- Facebook Live
- Twitter/X Live
- Custom server
Scene builder: advanced construction of scenes and remote control of device
Auto-switching: configuration of automatic switching based on audio input
Audio mixer: advanced configuration and control of audio sources, processing and routing
Stream profiles: configuration for streaming settings and profiles
Device configuration: advanced settings and customisations
macOS 11 or later
Windows 10 Version 1803 or later,
Windows 11
Switching
Total Number of Layers
9 simultaneous in Preview and Program
Downstream Keyers
2 (overlays and logo)
Chroma Keyers (Green and Blue)
2
Media Players
2 simultaneous
Transitions
SMPTE wipes, dip and fade
True Preview
Display complete scenes and overlays simultaneously in preview and program
Generated Borders
All scenes
Multiview
Program and preview
Live inputs, scene and media thumbnails
Audio mixer and channel status
Recording, network and storage status
Run time, date and time information
Media Player
Expandable microSD card storage
Videos: MP4
Images: PNG, JPG
Audio: WAV
Bluetooth
5.3 (for stereo audio input or phone calls)
Power and Mechanical
Length: 132.5
Width: 305.9
Height: 61.4
Video
2 configurable –
preview, program, multiview
1920x1080p:
23.97, 24, 25, 29.97, 30, 50, 59.94, 60
(HDMI only) 1920x1080i: 25, 29.97, 30
1920x1080p:
24, 25, 30, 50, 60
1920x1080p:
23.97, 24, 25, 29.97, 30, 50, 59.94, 60
