The RØDECaster Video S is a revolutionary all-in-one video and audio production console designed to deliver intuitive control over every element of your content. A compact version of the RØDECaster Video, it combines powerful video switching, recording and production capabilities with a fully integrated professional audio mixer. From video podcasts and studio productions to live streams and interviews, the RØDECaster Video S provides a seamless way to streamline and supercharge your workflow with broadcast-quality results.
- Switch between up to four video sources and five fully customisable scenes at the press of a button
- High-performance octa-core CPU video and audio processor
- Three full HD (1080p) HDMI inputs with auto frame rate conversion and one configurable HDMI output for viewing program, preview and multi-view
- One flexible USB-C port for connecting webcams and RØDE USB audio devices to use as additional video and audio sources
- Two studio-grade Neutrik® combo jacks with ultra-low-noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
- Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
- Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
- Support for network cameras (including PTZ operation) with up to four NDI inputs® and one output via Ethernet, plus dual-cam streaming with the free RØDE Capture app for iOS devices
- 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
- Ability to create five complex scenes with multiple layers of video, media and graphics, which can be saved and triggered at the touch of a button
- Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs
- Media playback, graphic overlays, keying, transitions and multi-source scene creation all accessible from the front panel
- Innovative "Inspect" feature for quick-and-easy preview and configuration of any input or scene
- Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
- Stream directly to all major platforms via Wi-Fi or Ethernet, or to streaming software via USB
- Record directly to external USB storage device, including isolated (ISO) recording for post-editing flexibility
- Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via the RØDECaster App
- Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
- 24GB of on-board storage (20GB user-configurable) for media, graphics and overlays
1 x RØDECaster Video S
1 x Power Supply
1 x SuperSpeed USB-C Cable
BROADCAST GRADE VIDEO
STUDIO QUALITY AUDIO
STREAMING AND RECORDING
FLEXIBLE INPUT OPTIONS
Creative Co-Pilot
The ultimate all-in-one content creation tool, the best-in-class RØDECaster Video S seamlessly blends comprehensive video and audio production into a single, compact device. Providing unmatched flexibility in switching, mixing, processing, recording and streaming, it provides solo creators and video podcasters everything necessary to produce polished, broadcast-quality content from a single, streamlined setup.
For Anyone and Everyone
With an array of connectivity options and its completely customisable architecture, the RØDECaster Video S adapts to meet the needs of any podcast or production and is flexible enough to fit any creative setup.
Solo Creator
Video Podcaster
Live Streamer
Elevate Your Production
With an intuitive interface and dynamic touchscreen, the RØDECaster Video S offers hands-on control of every element of your production to add the professional polish you’ve been searching for. Switch between video sources, build engaging layouts, and mix pristine audio – all from one compact console.

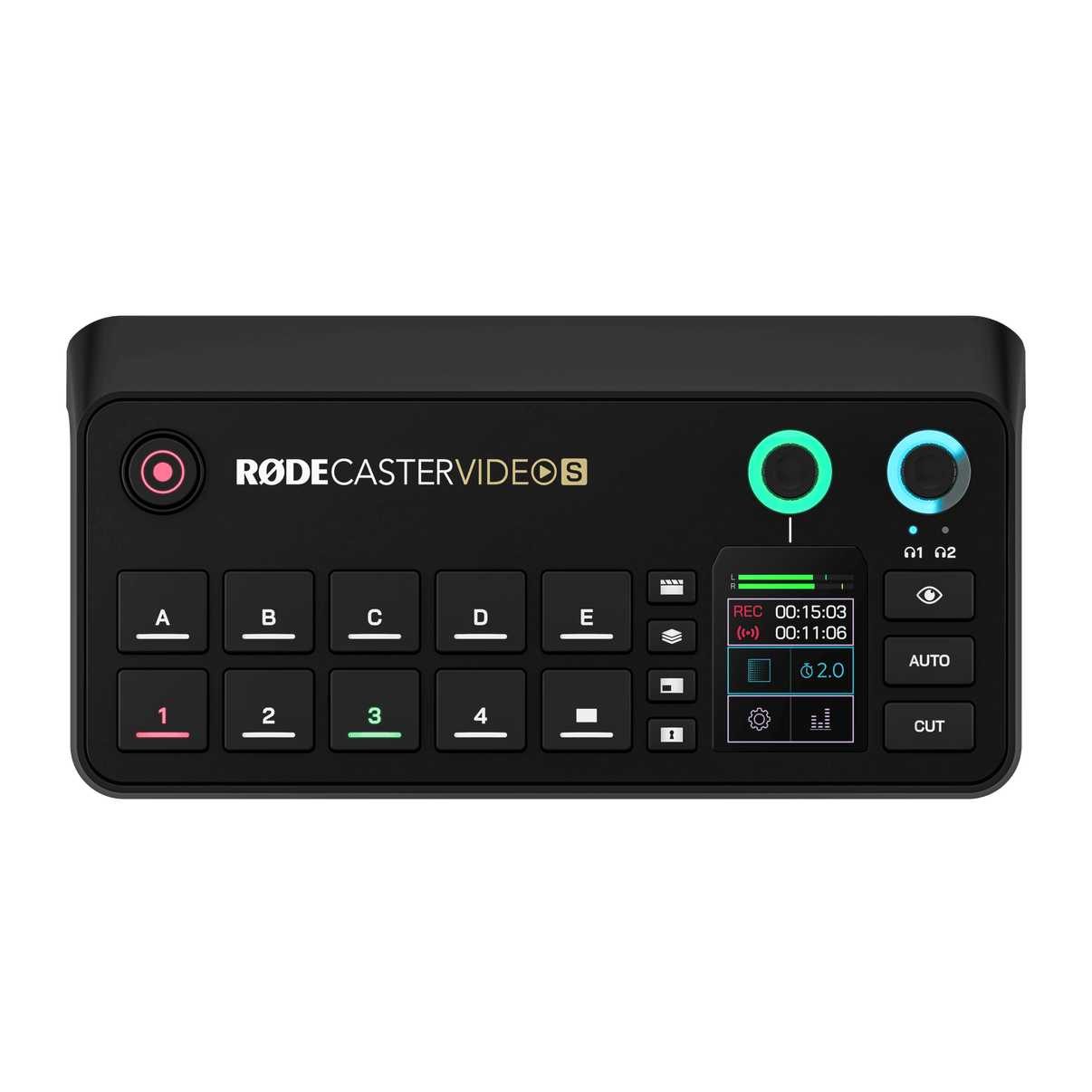

Features
1) Input and Scene Buttons
Switch between video sources or fully customised scenes with the touch of a button.
2) Function Buttons
Quickly and simply access media playback, graphic overlays, multi-source layouts and chroma keying.
3) Touchscreen and Encoders
Control and configure your production with the intuitive touchscreen and versatile encoder.
4) Inspect Button
Preview and configure any input or scene on-the-fly with the innovative Inspect button.
5) USB Video and Audio
Connect a compatible webcam or RØDE USB microphone via USB 4 for additional video or audio options.
6) HDMI Inputs and Outputs
Capture up to three HDMI video sources and monitor your production with preview, multiview or program feeds.
7) Headphone Outputs
Monitor your audio with up to two pairs of headphones with custom mixes and levels.
8) Revolution Preamps™
Record XLR and 1/4-inch equipment in stunning detail with the ultra-low-noise, high-gain Revolution Preamps™.
Switch it Up
With simultaneous control over four different video feeds, the RØDECaster Video S allows you to seamlessly switch between cameras, consoles and other visual inputs instantly to keep your audience totally engaged. Cut between your shots instantly or apply tasteful fades, dips and wipes with fully customisable transitions – you can even sequence your show with live previews of each feed before you make the switch.
Set the Scene
The RØDECaster Video S makes it simple to design and customise your own scenes, combining video sources, graphics and media into dynamic layouts. Save up to five scenes and switch between them instantly at the press of a button, giving your productions a professional flow.
Integrated Professional Audio
Compact yet uncompromising, the RØDECaster Video S sets a new standard for power and flexibility in audio production. With two studio-grade Neutrik® combo jacks for XLR connectivity, and the ability to mix, process, and route up to nine audio sources simultaneously, it delivers versatility that belies its size. Each channel has access to a full suite of studio-grade effects and processors powered by APHEX®, allowing you to sculpt your dream sound and deliver polished, professional results every time.
Expand Your Setup
The RØDECaster Video S includes a versatile USB-C port that lets you expand your setup with an additional video or audio device. Connect a compatible USB webcam, capture card or other UVC source, add a RØDE USB microphone, or even integrate the RØDECaster Pro II or Duo into your workflow to level up your production.
Quick and Easy Video
Pair the RØDECaster Video S with the free RØDE Capture app to transform your iPhone into a high-quality camera for your podcast. Enjoy flexible, dual-cam streaming straight from your device to take your content to effortless new heights.
Comprehensive Multiview
The Multiview display of the RØDECaster Video S provides a comprehensive overview of all your production’s critical information in one screen. With previews of every input, scene and feed, alongside recording, streaming and audio information, you can be confident you have complete control of your show.
Form Follows Function
The RØDECaster Video S provides immediate access to a wide range of creative tools with its four function buttons, giving you unprecedented hands-on control over advanced video techniques and quick access to your graphics and media.
Media Player
Integrate video files, images and sounds into your production with ease.
Graphics Overlay
Access and arrange custom logos, watermarks, lower-thirds and other graphic assets.
Multi-source Layouts
Configure multiple video sources into arrangements such as picture-in-picture, split screen and more.
Automatic Keying
Apply an automatic chroma key to your input – it’s never been easier to set up a green screen.
Record On-Board
You can capture your entire production directly to a connected hard drive or USB storage device, with the option to record each video and audio source independently providing ultimate flexibility in the editing suite.
Stream to Your Favourite Platform
Stream your content directly to YouTube, Twitch, or your favourite streaming platform via Wi-Fi or Ethernet and use custom audio routing to send a completely different mix to your audience, your headphones and your recording.
Intuitive Interface
The spacious high-resolution touchscreen and versatile rotary encoder provide intuitive hands-on control over every aspect of your production, from applying transitions and previewing your inputs to adjusting volume levels and configuring settings.
Wireless Remote Control
For setups where you can’t be close to the console, the RØDECaster Video S boasts complete wireless remote control via the RØDECaster App, allowing you to switch inputs, adjust settings and configure complex scenes from your computer.
Enhanced by the
RØDECaster App
The RØDECaster App is the ultimate companion software for the RØDECaster Video S. Craft the perfect multi-camera layout with the scene builder, take control over all your audio sources at once with the audio mixer and access advanced configuration settings to craft the perfect production.
OS Requirements: macOS 11 or later; Windows 10 Version 1803 or later.
Master Your RØDECaster
Learn everything there is to know about the RØDECaster Video S with our comprehensive user guide. From the basics of video switching to advanced recording and streaming applications and everything in between.
RØDECaster Video
Video Production, Evolved
The RØDECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content. Combining powerful video switching, recording and production capabilities with a fully integrated professional audio mixer, it offers a seamless way to streamline and supercharge your workflow for studio productions, video podcasts and interviews, and stream live events with broadcast quality.
Best suited for broadcasters, corporate environments, professional studios, houses of worship, and multi-camera productions requiring more I/O flexibility and expandability.
RØDECaster Video S
Your All-in-One Production Partner
Built for solo creators, video podcasters, live streamers, and studio producers – the RØDECaster Video S packs the same powerful punch as the flagship model, combining video switching, recording, streaming, and professional audio control in a more compact, equally intuitive console that makes producing great content easier than ever.
Ideal for solo creators, video podcasters, live streamers, and studio producers who need a powerful yet compact solution for professional-quality video and audio production.
RØDECaster Video |
RØDECaster Video S |
|
|---|---|---|
Video Sources |
6 |
4 |
HDMI Inputs |
4 |
3 |
UVC Inputs |
2 |
1 |
NDI Inputs |
4 |
4 |
Video Outputs |
2 × HDMI, 1 × UVC, 1 × NDI |
1 × HDMI, 1 × UVC, 1 × NDI |
Recording |
PGM at 1080p60 and 6 x ISO at 1080p30 |
PGM at 1080p60 and 4 x ISO at 1080p30 |
Streaming |
RTMP / RTMPS |
RTMP / RTMPS |
Keying / DSK / Auto Switching |
Yes |
Yes |
Preview & Program Layers |
9 |
9 |
Custom Scenes |
7 |
5 |
Total Audio Channels |
9 x Stereo |
9 x Stereo |
Analogue Audio Inputs |
2 × Combo Jacks |
2 × Combo Jacks |
Analogue Audio Outputs |
2 × Headphones, 2 × Line Outputs |
2 × Headphones |
USB Audio Interfaces |
3 |
3 |
USB Audio Device Hosting |
2 |
1 |
Wireless Audio Receivers |
2 |
2 |
Ethernet / Wi-Fi / Bluetooth® |
Yes |
Yes |
Video Players |
2 |
2 |
Media Storage |
microSD Card |
24GB Internal (20GB User Configurable) |
Remote Control (Ethernet / Wi-Fi / USB) |
Yes |
Yes |
