Professional two-channel amplifier
Introduction

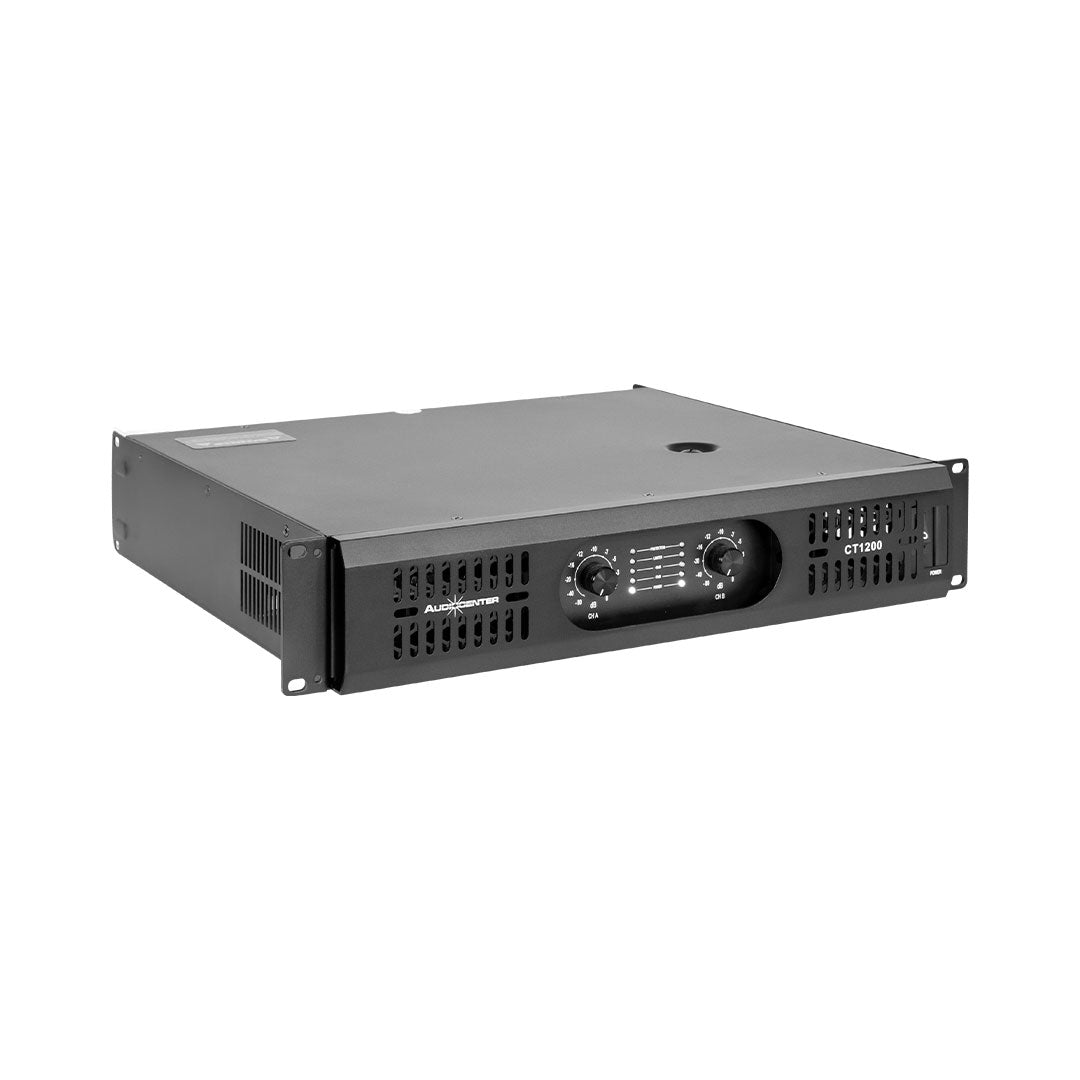

The Audiocenter CT1200 amplifier delivers high-performance audio for venues like pubs and live events, offering selectable input sensitivity, speakon/binding post outputs, and multiple operating modes. Advanced protection systems, including soft-start, DC, thermal, and short-circuit safeguards, ensure reliability. Class H amplification minimises distortion, while a 120Hz VLTM crossover enhances sound for subwoofers and compact setups. A tunnel-style heatsink and dual fans provide efficient cooling, ensuring long-term durability with rigorously tested components.
Features
Elegant appearance
Comprehensive protection for reliability
Dynamic sound quality
Exceptional value for money
Modular and ultra-compact design
Easy transport and installation
Specifications
Output power
(1kHz, THD+N =1%) |
8Ω stereo |
2x400W |
| 4Ω stereo |
2x600W |
| 8Ω bridge |
1x1200W |
| A-Guard Protection System |
DC protection |
| Short circuit protection |
| Overheat protection |
| Limiter protection |
| Output overload protection |
| Soft startup protection |
| Working mode |
Stereo/Parallel/Bridge |
| Crossover
(High Pass/Low Pass）
|
120Hz, -3dB |
| Connectors |
Input |
Male XLR & Female XLR |
| Output |
Speakon+Binding Post |
| Input Impedance |
Balanced |
≥20kΩ |
| Unbalanced |
≥10kΩ |
Frequency response
(1W 8Ω Bridge) |
20Hz-20kHz(±1dB) |
| Sensitivity |
0.775V/1.0V/1.44V |
| Maximum input voltage |
16dBu |
Crosstalk
(1kHz, Rated power 8Ω) |
≥60dB |
Signal-to-noise ratio
(A-weighted, rated power 8Ω) |
≥100dB |
Damping Factor
(1kHz & 8Ω) |
≥300 |
Intermodulation Distortion
(60Hz:7kHz=4:1,8Ω) |
≤0.1% |
| Total Harmonic Distortion
(8Ω & 20Hz-20kHz, half power)
|
≤0.05% |
| Output Circuitry |
Class H |
| Rack Space |
2U |
| Cooling System |
Back to front venting, mandatory cooling |
| Dimensions (W x H x D) |
483×88×369mm |
| Net Weight |
12.5kg |
