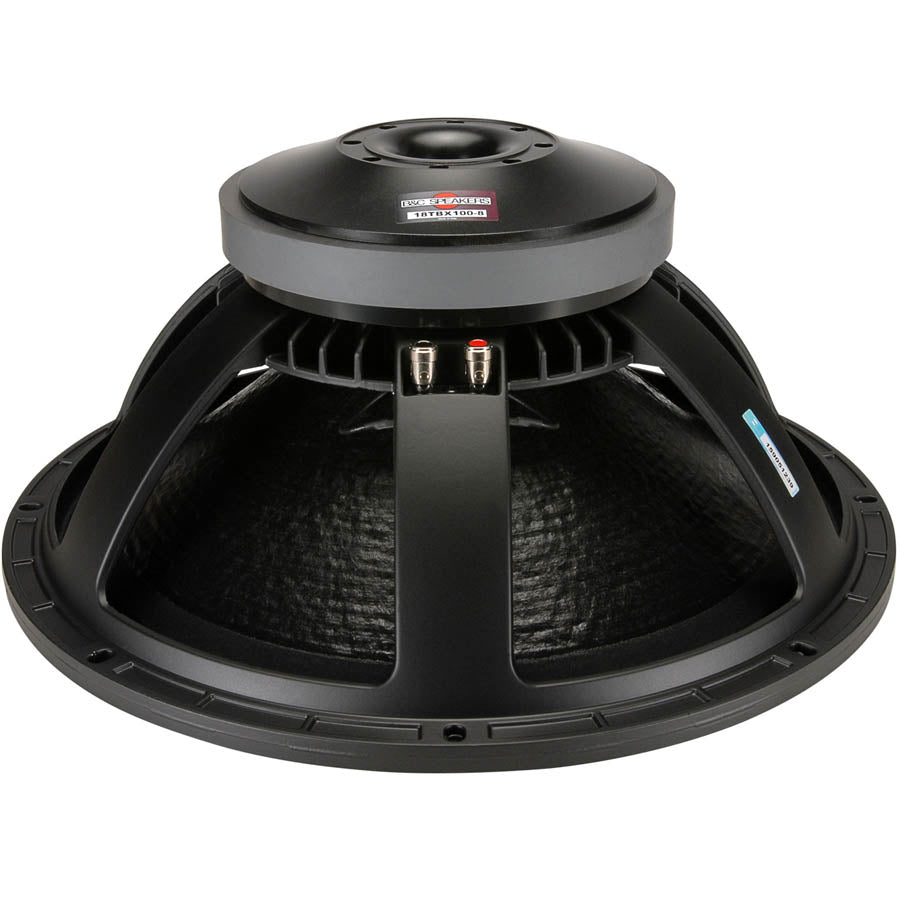

    B&C 18TBX100(4 ohms) Loose Speaker

    Vendor: B&C Type: loose speakers
    THE B&C 18TBX100 IS A VERY HIGH POWER 18" WOOFER THAT HANDLES 1,200 WATTS AES STANDARD & 2,400 WATTS PROGRAM EXTENDED XMAX OF 9.0MM FOR A VERY DEEP TIGHT BASS SOUND ALUMINUM...
    R 7,900.00
    Tax Included.

    💪 Hurry up! Low Stock

    Pairs well with
    Shop Online With Nationwide Delivery
    Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa
    Shop Online & Pickup In-Store
    Payment & Security

    Your payment information is processed securely. We do not store or have access to your credit card details.

      Share to:
      View Full Details
      1 / 1
      Press & drag to view
      Product DetailsRecently Viewed
      • THE B&C 18TBX100 IS A VERY HIGH POWER 18" WOOFER THAT HANDLES 1,200 WATTS AES STANDARD & 2,400 WATTS PROGRAM
      • EXTENDED XMAX OF 9.0MM FOR A VERY DEEP TIGHT BASS SOUND
      • ALUMINUM DEMODULATION RING KEEPS DISTORTION LOW
      • FEATURES A DOUBLE SPIDER, VENTILATED VOICE COIL GAP & A LARGE 4" VOICE COIL
      • THE B&C 18TBX100 SPEAKER IS OPTIMIZED FOR EXTREMELY HIGH OUTPUT SUBWOOFER SYSTEMS IN CONCERT, SOUND REINFORCEMENT SYSTEMS, THEATER, ETC.

      SPECIFICATIONS

      Nominal Basket Diameter

      18" / 460mm

      Impedance

      4 ohms

      RMS Power Rating

      1,200 Watts
      Program Power  2,400 Watts

      Frequency Response

      35Hz - 1.0kHz

      Sensitivity (1W/1m)

      97dB

      Voice Coil Diameter

      4" / 100mm
      Winding Material Copper
      Former Material Glass Fibre
      Winding Depth 1.0" / 25mm
      Magnetic Gap Depth .5" / 12mm
      Flux Density 1.1T

      MOUNTING INFORMATION
      Overall Diameter 18" / 460mm
      Bolt Circle Diameter 17.3" / 440mm
      Baffle Cutout Diameter 16.6" / 422mm
      Depth 8.2" / 209mm
      Flange & Gasket Thickness .62" / 16mm
      No. Of Mounting Holes 8
      Net Weight 28.6 lbs./ 13 kg.
      Shipping Weight 31.7 lbs./ 14.4 kg.

      MATERIALS
      Basket Cast Aluminum
      Cone Treated Paper
      Cone Shape Radial
      Surround Shape Triple Roll
      Spider Double Silicone
      Pole Design T-Pole
      Former Material Glass Fiber
      Voice Coil Copper
      Magnet Ferrite

        THIELE-SMALL PARAMETERS

      Resonant Frequency (fs)

      		 34 Hz
      Impedance (Re) 5.1 ohms
      Electrical Factor(Qes) .37
      Mechanical Q (Qms) 7.2
      Total Q (Qts) .35
      Compliance Equiv. Vol. (Vas) 212 Liters/7.5cu. ft.
      Voice Coil Overhang (Xmax) 9.0mm
      Reference Efficiency 2.2%
      BL Factor 25.1 T-M
      Surface Area of Cone (Sd)m2 0.1210m2
      Diaphragm Mass (Mms) 209 Grams
      Coil Inductance (Le) 1.6mH
      SPL VS. FREQUENCY
      Z
      IMPEDANCE CURVE
      FREQUENCY RESPONSE IN BASS REFLEX CABINET
      CABINET SPECS
      • Enclosure Type - Bass Reflex/Ported
      • Cabinet Size - 7.0 cu. ft. / 200 Liters
      • Tuning - 34Hz
      • Frequency @ -3dB - 34.3Hz
      • Port Area - 133.7" / 3396mm
      • Port Depth - 10.24" / 260mm
      •  SPEAKER CABINET SPECIFICATIONS AT BOTTOM OF PAGE FOR BUILDING YOUR OWN CABINET
