Description

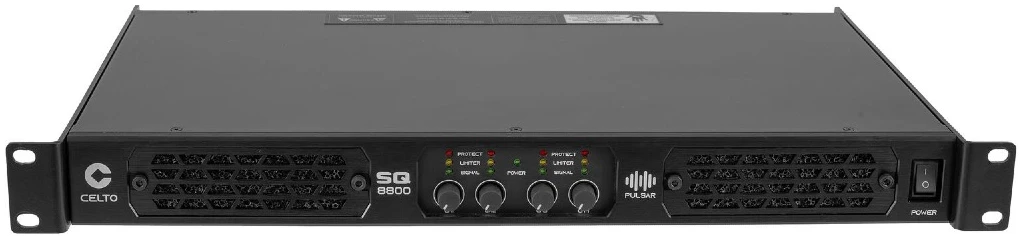

Celto Acoustique SQ8800
The Celto Acoustique SQ8800 is a cutting-edge S Series 8800 Watt 4-Channel Power Amplifier designed to deliver superior audio performance for both professional and audiophile applications. This amplifier is a perfect blend of power, efficiency, and sound quality, making it an essential component for any sound system.
- Up to 12kW RMS Output Power in compact IU 19″ rack format
- Generation LLC Resonant PULSAR SMPS with Active PFC
- Class Leading Low Frequency Extension and Reproduction
- Transparent Zero-Attack J-FET Limiters
- Proven Circuit with outstanding reliability
- TrueSound Class D with High-Speed High-Current MOSFETs
- Studio Grade PreAmp with MUSE’ Fine Gold capacitors
- Long Life Japanese Electrolytic Capacitors in all stages
- Genuine parts exclusively from World Class suppliers
- Lightweight and shallow depth Touring grade chassis
S Series | Switch Mode Touring Amplifier Series
Part of the renowned S Series, specifically engineered for touring and live sound applications.
Active PFC + SMPS + Class D
Utilizes Active Power Factor Correction (PFC), Switch Mode Power Supply (SMPS), and Class D amplification technology to achieve the highest power density in its category.
Impeccable THD+N
Provides an exceptional 0.015% Total Harmonic Distortion + Noise (THD+N) across a frequency range of 20Hz to 20kHz, ensuring high fidelity and clarity in audio reproduction.
Ultra-low Background Noise
Features an ultra-low background noise of -110dB, allowing for a pristine listening environment devoid of unwanted noise artifacts.
Flat Frequency and Phase Response
Maintains a flat frequency and phase response, which is load-independent, ensuring that audio performance remains consistent regardless of the connected speaker load.
Enhanced Listening Experience
Experience intense deep bass, warm vocals, and crystal-clear highs, designed to create an unmatched listening experience that captivates audiences.
The Celto Acoustique SQ8800 is not just a power amplifier; it is a high-performance audio solution designed to meet the demands of modern sound systems. With its advanced engineering and exceptional specifications, it is ideal for live events, installations, and high-fidelity audio setups. Whether you are a sound engineer, musician, or audio enthusiast, the SQ8800 promises to deliver powerful, clear, and immersive audio that elevates your sound experience to new heights.
Specifications
Power Rating
4x 1300W 8Ω
4x 2200W 4Ω
4x 2000W 2Ω
Frequency response
5-20,000Hz (.1dB)
Typical THD (IW, 20Hz-20kHz, 801400W, 1kHz, 8Ohm)
<0.03% / <0.09%
Signal to Noise Ratio
107dB(A)
Crosstalk (1kHz)
>75dB
Input Impedance
20 kOhm (Balanced)
Maximum input
+20dBu
Amplifier slew rate
>60V(us)
Amplifier damping factor (8 ohms, 500Hz)
>800 (internal)
Preamp
Ultra Iow distortion opamps with audiophile MIJSE• Fine Gold capacitors
Nominal Voltage Gain
x50 (34dB) on all models
Cooling
Temperature regulated long life brush-less fans, front to back airflow
Protections
Short-circut. Over md Under-voltage, Over-current, Over-load. Ternperature
Input connectors
4 Balanced NEUTRIK• XLR
Output connectors
4 NEUTRIK• SpeakON• NL4MP
Operating Voltage
90-260V AC
Chassis
1U
Weight (net)
6kg
Weight (gross)
7.5kg
Dimensions (mm)
482 x 45 x 281
