Denon Professional DN312X

DN-312X

12-Channel Line Mixer with Priority

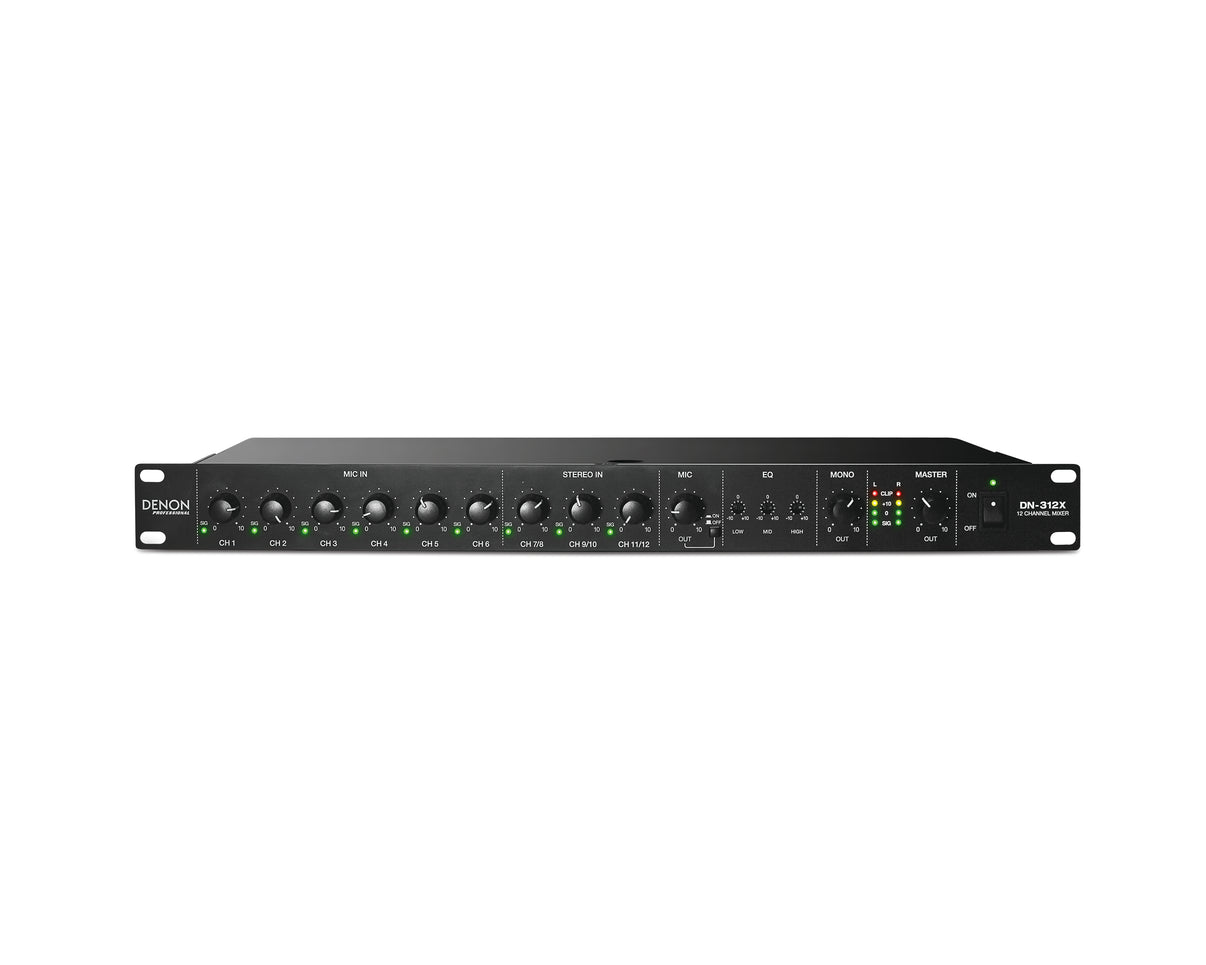

The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges. It features 6 mic/line combination inputs (HDHQ™ Denon-Marantz proprietary mic pre’s) each with switchable phantom power and 6 additional line-level inputs. It has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics’ signals. The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variety of applications; everything from a classroom to a tour bus.

Features

• 6 HDHQ™ Combination inputs with MIC, Phantom and Line selector switches
• 6 mono (3 stereo) RCA Inputs
• Mic monitor 1/4” output for private listening of all mic inputs
• Balanced XLR line outputs
• Mono 1/4” line output can be used to feed audio to external recording device
• AC or 24V DC power inputs
• Mic 1 Priority Control
• Master and Individual level controls
• 1U rack mountable

Specs

• Input Channels

  • Microphone Input:

    • 6 Balanced XLR Connectors (Channels 1–6)

    • Frequency Response:

      • 20 Hz - 22 kHz



    • THD+N:

      • < 0.03% @ 1 kHz



    • Sensitivity:

      • -40 dBu



    • Maximum Input:

      • -19 dBu



    • Maximum Voltage Gain:

      • 60 dB (Mic Input to Line Out, Mic Out & Mono Out)
      • 50 dB (Mic Input to Rec Out)



    • Signal-to-Noise Ratio:

      • > 103 dB



    • Phantom Power:

      • 18–21 V, switch control





  • Line Inputs:

    • 6 Balanced XLR Connectors (Channels 1–6)

    • Frequency Response:

      • 20 Hz - 22 kHz
      • 20 Hz - 22 kHz



    • THD+N:

      • < 0.03% @ 1 kHz



    • Sensitivity:

      • 0 dBu



    • Maximum Input:

      • +21 dBu
      • +21 dBu



    • Maximum Voltage Gain:

      • 20 dB (Mic Input to Line Out, Mic Out & Mono Out)
      • 10 dB (Mic Input to Rec Out)
      • 10 dB (Line Input to Line Out)
      • 0 dB (Line Input to Rec Out)
      • 4 dB (Line Input to Mono Out)



    • Signal-to-Noise Ratio:

      • > 103 dB


    • Stereo Balanced RCA Connectors (Channels 7/8-11/12)

    • THD+N:

      • < 0.03% @ 1 kHz



    • Sensitivity:

      • +10 dBu



    • Signal-to-Noise Ratio:

      • > 103 dB





  • Impedance:

    • Mic/Line Input:

      • 1.4 kΩ



    • Line Input:

      • > 10 kΩ



    • All Outputs:

      • 120 Ω







• Equalizer

  • High:

    • +15 dB @ 12 kHz



  • Mid:

    • +12 dB @ 2.5 kHz



  • Low:

    • +15 dB @ 80 Hz





• Crosstalk

  • Adjacent Inputs:

    • < -70 dB @ 1 kHz (Channels 1–6)
    • < -68 dB @ 1 kHz (Channels 7/8–11/12)



  • Input to Output:

    • < -82 dB @ 1 kHz





• Main MixOutput

  • Line Output:

    • 0 dBu (+2 dBu), balanced



  • Mic Output, Mono Output:

    • 0 dBu (+2 dBu), unbalanced



  • Maximum Output:

    • +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks



  • Noise (Bus):

    • < -83 dB @ 20 Hz – 22 kHz





• General

  • Power connection:

    • IEC



  • Input Voltage:

    • 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V



  • Dimensions (width x depth x height):

    • 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm)



  • Weight:

    • 6.4 lbs (2.9 kg)
