• Faital Pro 18HP1030

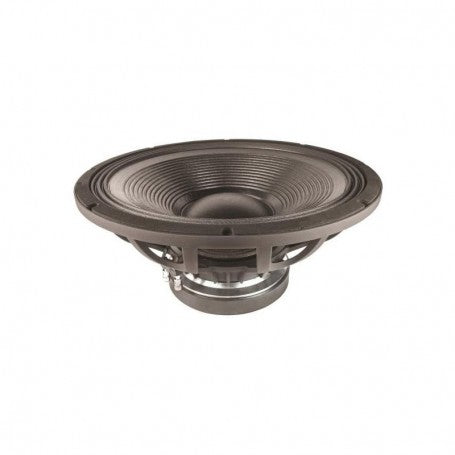

    Faital Pro 18HP1030

    Vendor: Faital Pro Type: loose speakers
    NOMINAL SPECIFICATIONS Nominal Diameter 460 mm (18 in) Overall Diameter 460 mm (18.11 in) Bolt Circle Diameter 440 mm (17.32 in) Baffle Cutout Diameter 421 mm (16.57 in) Depth 208.5...
    R 7,250.00
    Tax Included.

    🎉 Stock adequate! Ready to ship

    Pairs well with
    Shop Online With Nationwide Delivery
    Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa
    Shop Online & Pickup In-Store
    Payment & Security

    Your payment information is processed securely. We do not store or have access to your credit card details.

      Share to:
      View Full Details
      1 / 1
      Press & drag to view
      Product DetailsRecently Viewed
      NOMINAL SPECIFICATIONS
      Nominal Diameter 460 mm (18 in)
      Overall Diameter 460 mm (18.11 in)
      Bolt Circle Diameter 440 mm (17.32 in)
      Baffle Cutout Diameter 421 mm (16.57 in)
      Depth 208.5 mm (8.20 in)
      Flange and Gasket Thickness 13.7 mm (0.54 in)
      Net Weight 12.1 Kg (26.7 lb)
      Shipping Box
      (Single Carton Box)      		 503 x 500 x 258 mm
      (19.8 x 19.7 x 10.2 in)
      Shipping Weight 13.5 Kg (29.8 lb)


      TECHNICAL PARAMETERS
      Nominal Impedance 8 Ohm
      Minimum Impedance 6.5 Ohm
      AES Power Handling (1) 1200 W
      Maximum Power Handling (2) 2400 W
      Sensitivity (1W/1m) 98 dB
      Frequency Range 35÷1600 Hz
      Voice Coil Diameter 100 mm (4 in)
      Winding Material Cu
      Former Material Glass Fiber
      Winding Depth 28.9 mm (1.14 in)
      Magnetic Gap Depth 12 mm (0.47 in)
      Flux Density 1.1 T
      Magnet Ferrite Ring
      Basket Material Aluminum
      Demodulation Aluminum Ring
      Cone Surround (3) Triple Roll
      NET Air Volume filled by Loudspeaker 6.5 dm^3 (0.230 ft^3)
      Spider Profile 2x non-adjacent symmetrical constant height waves
      		THIELE AND SMALL PARAMETERS
      Fs 35 Hz
      Re 5 Ohm
      Qes 0.43
      Qms 11.6
      Qts 0.41
      Vas 162.1 dm^3 (5.72 ft^3)
      Sd 1124 cm^2 (174.22 in^2)
      Xmax (4) 12.45 mm
      Xdamage (5) 23.1 mm
      Mms 228.6 g
      Bl 24.3 N/A
      Le 1.48 mH
      Mmd 205.8 g
      Cms 0.09 mm/N
      Rms 4.33 Kg/s
      Eta Zero 1.59 %
      EBP 81 Hz

      NOTES:
      (1) 2 Hours Test According to AES 2-1984 Rev. 2003
      (2) Maximum power is defined as 3dB greater than nominal power.
      (3) Treated Polycotton
      (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
      (5) Maximum excursion before permanent damage
