• Faital Pro 3FE25

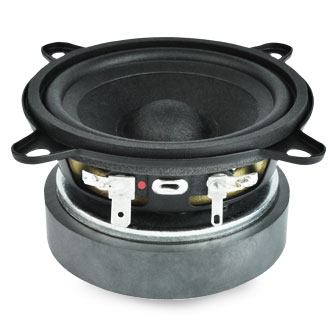

    Faital Pro 3FE25

    Vendor: Faital Pro Type: loose speakers
    NOMINAL SPECIFICATIONS Nominal Diameter 80 mm (3 in) Overall Diameter 105.6/81 mm (4.16/3.19 in) Bolt Circle Diameter 92 mm (3.62 in) Baffle Cutout Diameter 73.6 mm (2.90 in) Depth 54.5...
    R 500.00
    Tax Included.

    💪 Hurry up! Low Stock

    Pairs well with
    Shop Online With Nationwide Delivery
    Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa
    Shop Online & Pickup In-Store
    Payment & Security

    Your payment information is processed securely. We do not store or have access to your credit card details.

      Share to:
      View Full Details
      1 / 1
      Press & drag to view
      Product DetailsRecently Viewed

      NOMINAL SPECIFICATIONS
      Nominal Diameter 80 mm (3 in)
      Overall Diameter 105.6/81 mm (4.16/3.19 in)
      Bolt Circle Diameter 92 mm (3.62 in)
      Baffle Cutout Diameter 73.6 mm (2.90 in)
      Depth 54.5 mm (2.15 in)
      Flange and Gasket Thickness 6.5 mm (0.26 in)
      Net Weight 545 g (1.20 lb)
      Shipping Box
      (Single Carton Box - 36 units)      		 285 x 285 x 255 mm
      (11.2 x 11.2 x 10.0 in)
      Shipping Weight (36 units) 20.8 kg (45.9 lb)


      TECHNICAL PARAMETERS
      Nominal Impedance 8 Ohm
      Minimum Impedance 6.2 Ohm
      AES Power Handling (1) 20 W
      Maximum Power Handling (2) 40 W
      Sensitivity (1W/1m) 91 dB
      Frequency Range 100÷20000 Hz
      Voice Coil Diameter 19 mm (0.75 in)
      Winding Material Al
      Former Material Kapton
      Winding Depth 5 mm (0.2 in)
      Magnetic Gap Depth 4 mm (0.16 in)
      Flux Density 1.1 T
      Magnet Ferrite Ring
      Basket Material Steel
      Demodulation Copper Cap
      Cone Surround (3) Half Roll
      NET Air Volume filled by Loudspeaker 0.125 dm^3 (0.004 ft^3)
      Spider Profile 1x constant height waves
      		THIELE AND SMALL PARAMETERS
      Fs 110 Hz
      Re 6.2 Ohm
      Qes 0.79
      Qms 4.1
      Qts 0.66
      Vas 1.3 dm^3 (0.05 ft^3)
      Sd 33 cm^2 (5.12 in^2)
      Xmax (4) 1.83 mm
      Xdamage (5) 7.9 mm
      Mms 2.4 g
      Bl 3.6 N/A
      Le 0.07 mH
      Mmd 2.2 g
      Cms 0.87 mm/N
      Rms 0.4 kg/s
      Eta Zero 0.22 %
      EBP 139 Hz


      PART NUMBER (P/N)
      Faston Terminals - 8 Ohm Version 00804085



      NOTES:
      Packaged and sold in multiples of 36 units
      (1) 2 Hours Test According to AES 2-1984 Rev. 2003
      (2) Maximum power is defined as 3dB greater than nominal power.
      (3) NBR (Rubber)
      (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
      (5) Maximum excursion before permanent damage
