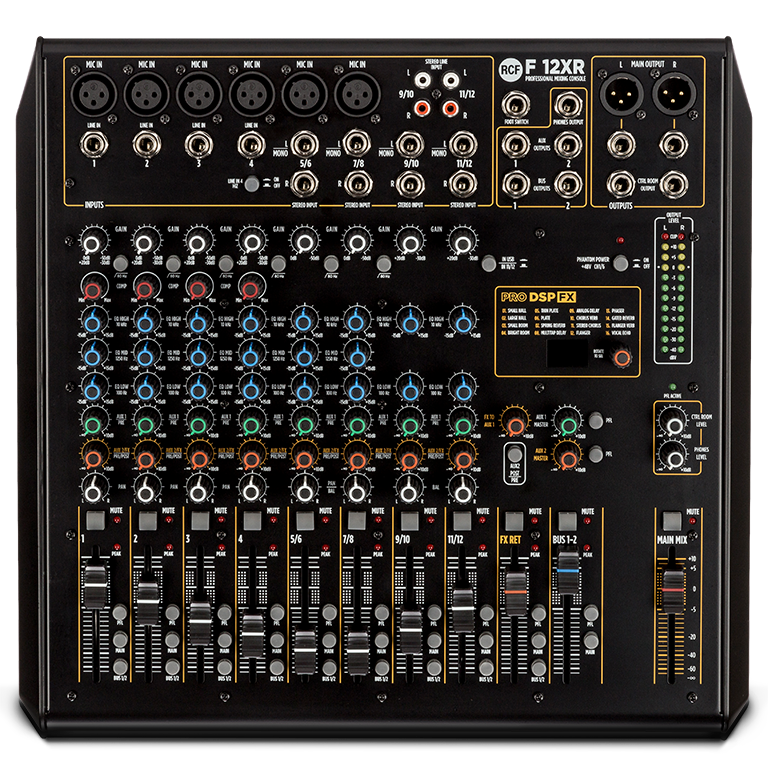

RCF F 12XR

12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

• Sturdy Metal Chassis
• PRO DSP FX onboard with 16 presets
• Stereo Recording and Playback via USB port
• Balanced main output audio path from input to output
• 4 single control compressors

Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
Robust, compact and attractive design.
Designed and Engineered in Italy
Internal Universal Power Supply
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

Specifications
Electronic specifications
Frequency Response
20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out
<0,02% A-Weighted
Processing
Dynamic range
> 85dB
Inputs
Channels
12
Mic
6
Gain Range
0 dB ÷ -50 dB
Input Noise Level
-124 dBu A-Weighted
Mic Inputs Impedance
14 kohm
Low Cut
80 Hz
Phantom Power +48V
Yes
Mono Line
4
Gain Selection
20 dB ÷ -30 dB
Line Input Impedance
21 kohm
HI-Z Line Inputs
1
HI-Z Line Inputs Impedance (Mohm)
1 Mohm
Stereo Line
4
Gain Selection
20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm)
15 kohm
Input connectors
XLR, Jack, RCA
Outputs
Main MIX
1
Control Room
Yes
FX Send
1
AUX Send
1
AUX Output
2
Group Out
1
Phones
1
Output connectors
XLR, Jack
Outputs specifications
Main Out Level
28 dBu
Aux Out Level
28 dBu
Group Out Level
28 dBu
Phones Out impedance (ohm)
150 ohm
Compressors
RCF Compressors
n° 4 Single Control Compressors on Channels 1 to 4
EQ
Input Channels EQ
2 Shelving / 1 Generic
Description
High: +/-15 dB @ 10 kHz Shelving
Mid: +/-15 dB @ 1,250 kHz Bell
Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
AUX
1 PRE/POST
FX POST
1
Internal Effects
USB audio
Other features
Electrical specifications
Standard compliance
