9The ideal portable solution for iPhone, iPad or iPod touch

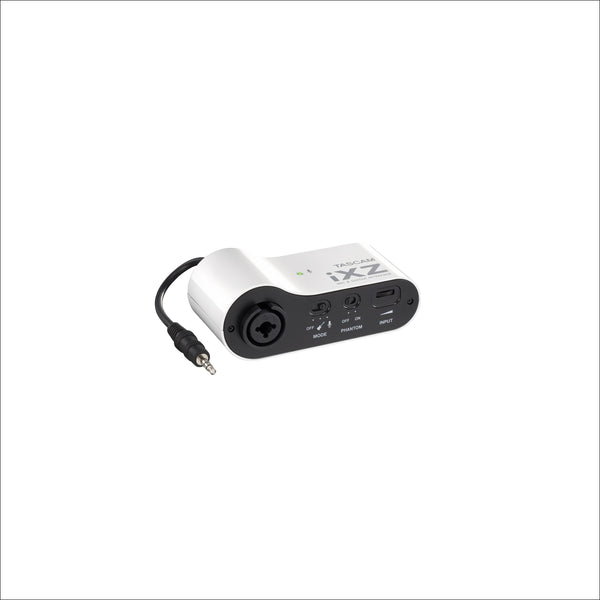

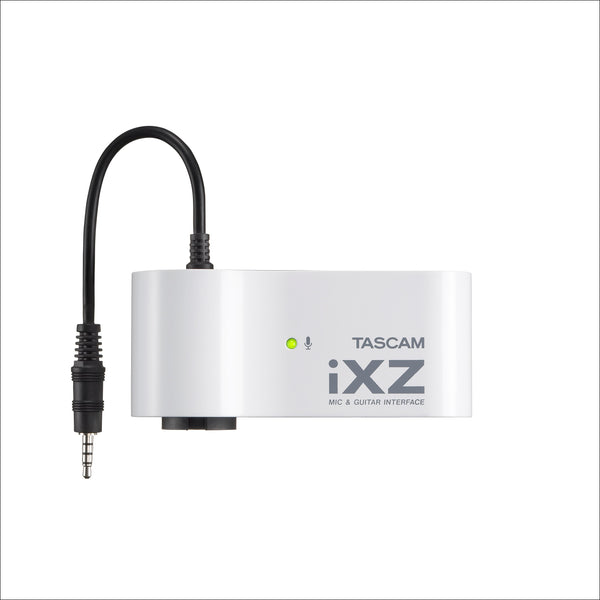

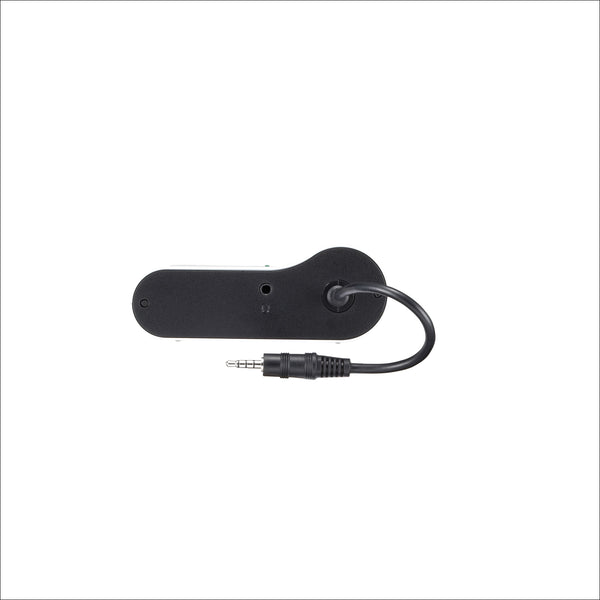

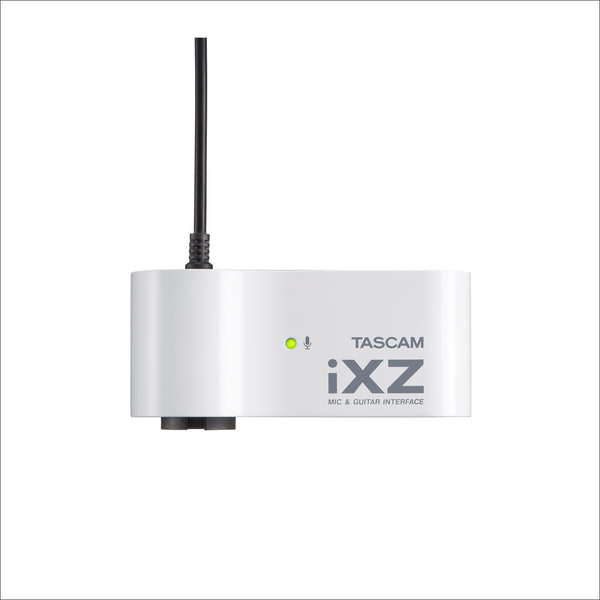

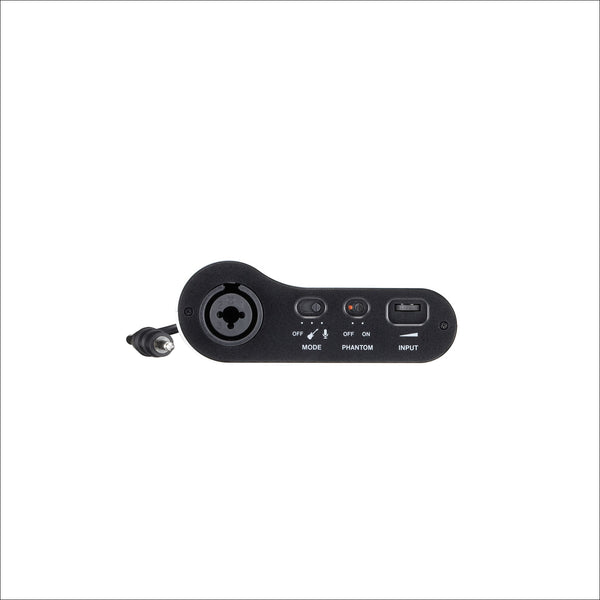

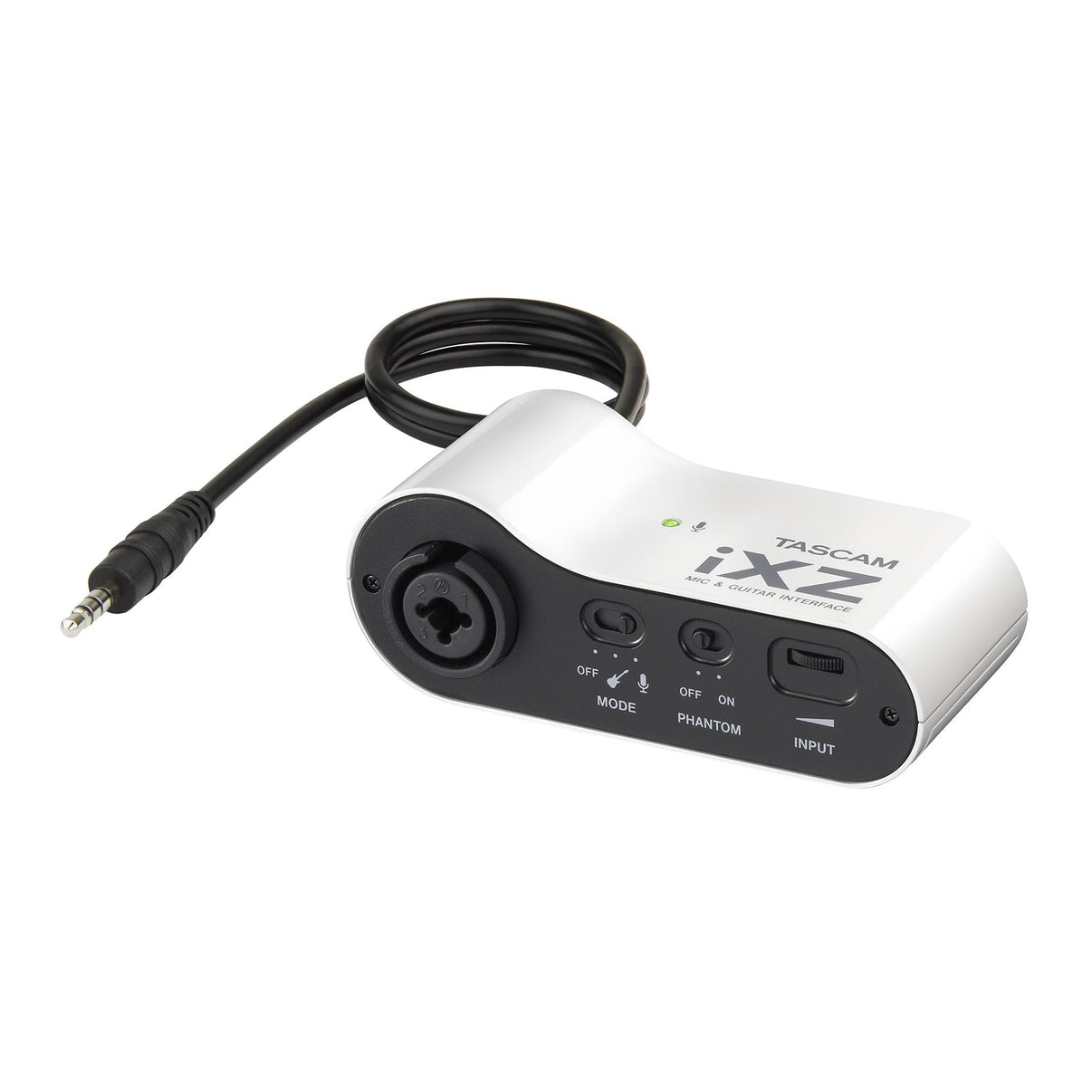

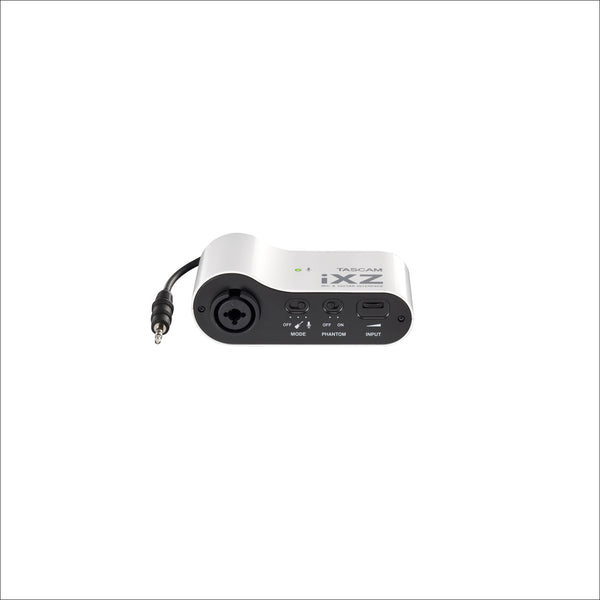

TASCAM's iXZ is the ultimate portable interface for recording with your Apple iOS device. It provides the inputs you need to record nearly any acoustic or electric instrument to any of the thousands of recording apps on the app store, including Apple's own Garage Band or TASCAM's Portastudio.
Mic or Guitar-level Input
Unlike similar recording interfaces for iOS, the input of the TASCAM iXZ can be switched between microphone-level or guitar level in. When switched to guitar level, the iXZ doesn't require any power. That makes the iXZ ideal for practicing your guitar and bass as well as recording.
Switch to Microphone level to enable the microphone preamp. Phantom power is available for powering a condenser microphone for detailed instrument or voice recording. A pair of AA batteries (included) provide hours of microphone recording.
A hardware gain knob controls the level of the input to your recording app. This gives you a quicker way to adjust the level than software controls – if your app even has one.
Spec description
| Device side connection terminal | |
| Connector | 1.8" (3.5mm) 4 Pole Plug with 6" (160mm) fixed cable (CTIA) × 1 * CTIA: Cellular Telephone Industry Association |
| Main unit connection terminal | |
| MIC IN | |
| Connector | XLR-3-31 (1: GND. 2: HOT, 3: COLD) × 1 |
| Input Level | –42dBu to +2dBu |
| Maximum Input Level | +2dBu |
| Input Impedance | 2.4kΩ |
| GUITAR IN | |
| Connector | 1/4" (6.3mm) TS Phone jack × 1 |
| Nominal Input Level | –21dBV |
| Maximum Input Level | –10dBV |
| Input Impendance | 470kΩ |
| PHONES/LINE OUT | |
| Connector | 1/8" (3.5mm) Stereo Mini jack × 1 |
| Power Requirements | 2 AA batteries (when using microphone input) |
| Power Consumption | 0.32W (Phantom Power 5.0mA) |
| Battery Life | Approx. 15 hours (Phantom Power 5.0mA) |
| External Dimensions | 4.17" × 1.57" × 1.77" / 106 × 40 × 45 mm |
| Weight | 3.3 oz. / 93 g (excluding batteries) |
