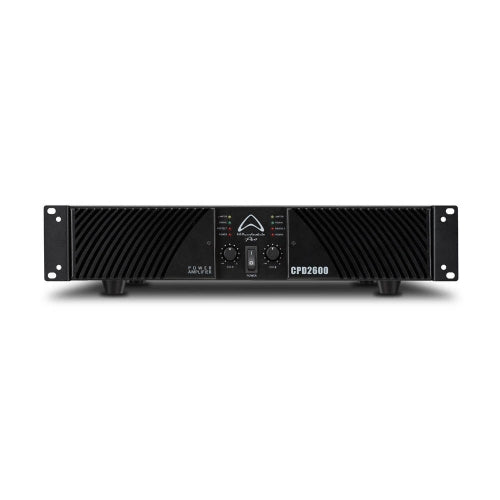

CPD 2600
The CPD2600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.
For using in stereo the amplifier delivers 650W RMS per channel at 8 Ohms and 1000W RMS per channel at 4 Ohms; a suitable power for small to large sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 2600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long throw, extremely high power audio is needed.
Key Features
|
|
Technology
Working in stereo, parallel and bridged modes CPD2600 is built for a multitude of sound system formations. Brand new class H topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.
Precision Control
Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.
Protection & Durability
The CPD2600 is rife with technology that offers complete protection for your peace of mind. A built-in switchable limiter allows over 8Vrms signal through without distortion. Additionally it is equipped with thermal, overcurrent, DC and output short protect features. Professional audio equipment is an investment. That is why the adept components of the amplifier are housed within a 2U steel chassis which is universally rack mountable. This hard wearing all-steel casing also features a removable air filter in the front bracket which can be cleaned or replaced easily.
Easy Cleaning
Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in.
Dirty cooling fans reduce efficiency and can lead to overheating.
Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.
This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.
SPECIFICATIONS
| Stereo Power Output | |
| 8 Ohms x 2 | 650W RMS |
| 4 Ohms x 2 | 1000W RMS |
| Bridged Mono Output | |
| 8 Ohms | 1940W RMS |
| 4 Ohms | 2600W RMS |
| Inputs | 2 x XLR |
| Outputs | 2 x XLR, 2 x Speakon |
| Frequency Response | 20Hz - 30KHz |
| Topology | Class H |
| Sensitivity | 0dBu (0.775Vrms) |
| Input Impedance | 20K Ohms |
| Maximum Input Level | 22dBu (9.7Vrms) |
| Slew Rate | >40V / us |
| Crosstalk | <-70dB |
| Signal to Noise | >100dB |
| Protection | Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Display | 4 segment LED |
| Cooling | Variable Speed Fan |
| Dimensions | 88 x 483 x 451mm |
| Net Weight | 21kg / 46.30lbs |
| Gross Weight | 23kg / 50.71lbs |
