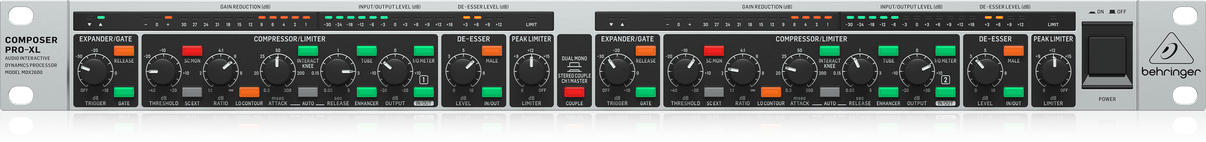

    Behringer MDX2600 V2

    Vendor: Station Vibration Type: Misc
    Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated De-Esser, Dynamic Enhancer and Tube Simulation   Product Features COMPOSER PRO-XL MDX2600 V2 The reference-class MDX2600 is a marvelous dual-channel Expander/Gate/Compressor/Peak Limiter that is...
    Regular Price R 2,900.00
    Tax Included.

    💪 Hurry up! Low Stock

    Pairs well with
    Shop Online With Nationwide Delivery
    Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa
    Shop Online & Pickup In-Store
    Payment & Security

    Your payment information is processed securely. We do not store or have access to your credit card details.

      Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated De-Esser, Dynamic Enhancer and Tube Simulation



      Product Features

      COMPOSER PRO-XL MDX2600 V2
      COMPOSER PRO-XL MDX2600 V2

      The reference-class MDX2600 is a marvelous dual-channel Expander/Gate/Compressor/Peak Limiter that is ideal for: compressing mono/stereo signals and providing virtually inaudible noise suppression, without loss of high frequencies; increasing vocal presence and energy; and limiting, or smoothing out extremely-high signal peaks. Additionally, the MDX2600 features an integrated Dynamic Enhancer, De-Esser, Low-Contour filter and our revolutionary, switchable Tube simulation – for the extra warmth and transparency of classic tube circuitry. Put simply, the MDX2600 can do amazing things for your vocals or instruments – providing virtually everything you need for studio-quality dynamics processing!

      Audio Dynamics Toolkit
      Audio Dynamics Toolkit

      THere are just a few of the MDX2600s outstanding capabilities:

      Switchable IKA (Interactive Knee Adaptation) provides program-adaptive compression, combining all the advantages of both hard and soft-knee compression

      IGC (Interactive Gain Control) combines clipper and program limiter for reliable, inaudible protection against signal peaks

      Enhancer lets you emphasize the Bass, Midrange and Hi output at selectable frequencies for maximum punch, clarity and detail without raising overall volume

      Tube Simulation provides the extra warmth and transparency of classic tube circuitry, creating a sound rich in harmonic content

      De-Esser must-have tool with switchable male/female voice recognition for reducing sibilance, while preserving natural voice timbre  often used to enhance upper-mid, to high-frequency smoothness in vocals, drum overheads, strings, etc.

      Side Chain allows insertion of graphic/parametric EQ to reduce specific frequencies  also often used to tighten up tracks using an internal or external signal to trigger compression, or gating of signal being processed (ex. using bass guitar signal to un-gate kick drum)

      Stereo Couple links both channels, allowing Channel 1 dials and switches to provide dynamics control over both channels (true stereo processing)



      Revolutionary Tube Simulation
      Revolutionary Tube Simulation

      The secret behind the COMPOSER PRO-XL MDX2600’s incredible sound is our Tube Modeling processor, which exudes the very essence of tube and compression. This amazing circuitry accurately emulates the performance characteristics of highly sought-after classic tube compressors, creating a sound that is so rich in harmonic content – you’ll wonder where we hid the tubes!



      Specification

      Audio Inputs
      Type

      XLR and 1/4" TRS connectors, servo-balanced

      Impedance
      +4 dBu

      50 kΩ balanced, 50 kΩ unbalalanced @ 1 kHz

      -10 dBV

      50 kΩ balanced, 100 kΩ unbalanced @ 1 kHz

      Operating Level

      +4 dBu / -10 dBV, switchable

      Max. input level

       +22 dBu, balanced and unbalanced

      CMRR

       Typically 60 dB @ 1 kHz

      Audio Outputs
      Type

       XLR and 1/4" TRS connectors, servo-balanced

      Impedance

       100 Ω balanced, 50 Ω unbalanced @ 1 kHz

      Max. output level

       +21 dBu, balanced and unbalanced

      Sidechain Inputs
      Type

      1/4" TS connector, unbalanced

      Impedance

      10 kΩ

      Max. input level

       +20 dBu

      Sidechain Outputs
      Type

      1/4" TS connector, unbalanced

      Impedance

       50 Ω

      Max. output level

      +21 dBu

      System Specifications
      Frequency range

       10 Hz to 70 kHz, +0/-3 dB

      S/N ratio

      115 dB, unweighted

      THD

       0.02% typ. @ +4 dBu, 1 kHz, unity gain

      Crosstalk

       -90 dB @ 1 kHz

      Expander / Gate Section
      Type

       IRC (Interactive Ratio Control) expander

      Threshold

       OFF to +10 dB, variable

      Ratio

       1:1 to 1:8, variable

      Attack

      < 1 msec / 50 dB, program-dependent

      Release

      SLOW: 100 msec/1 dB

        FAST: 100 msec/100 dB, variable

      Compressor Section
      Type

      IKA (Interactive Knee Adaptation) compressor

      Threshold

      -40 to +20 dB, variable

      Ratio

      1:1 to ∞:1, variable

      Attack / release

       Manual or automatic, variable

      Manual attack time

      0.3 msec/20 dB to 300 msec/20 dB, variable

      Manual release time

      0.05 sec/20 dB to 5 sec/20 dB, variable

      Auto characteristic

      Wave adaptive compressor

      Auto attack time

      Typically 15 msec for 10 dB, 5 msec for 20 dB, 3 msec for 30 dB


      Auto release time

       Typically 125 dB/sec, program-dependent

      Output

      -20 to +20 dB, variable

      Peak Limiter Section
      Type

      IGC (Interactive Gain Control) peak limiter

      Level

      0 dB to OFF (+21 dBu), variable

      Level 1 limiter type

      Clipper

      Attack

      “Zero”

      Release

       “Zero”

      Level 2 limiter type

       Program limiter

      Attack

       Typically <5 msec, program-dependent

      Release

      Typically 20 dB/sec, program-dependent

      Dynamic Enhancer Section
      Type

      IDE (Interactive Dynamic Enhancer)

      Filter frequency

       2.5 kHz (lower cut-off frequency)

      Characteristic

       High-pass filter (6 dB/oct.)

      Boost

      Max. 28 dB @ 7.5 kHz

      De-Esser Section
      Type

      VAD (Voice-Adaptive De-Esser)

      Filter Frequencies

       8.6 kHz (Female), 7.5 kHz (Male)

      Filter bandwidth

      Program-dependent

      Level reduction

       Max. 15 dB

      Power Supply, Voltage, Current Consumption
      Switch mode power supply

      Autorange, 100-240 V~ 50/60 Hz

      Power consumption

      15 W

      Mains connector

       Standard IEC receptacle
