Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated De-Esser, Dynamic Enhancer and Tube Simulation
Product Features

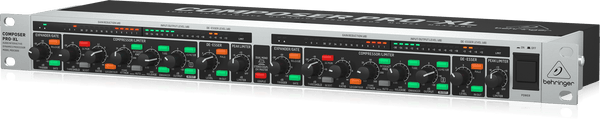

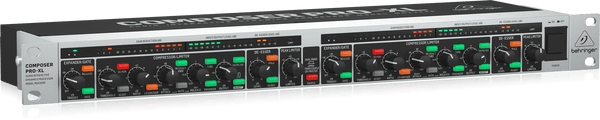

COMPOSER PRO-XL MDX2600 V2
The reference-class MDX2600 is a marvelous dual-channel Expander/Gate/Compressor/Peak Limiter that is ideal for: compressing mono/stereo signals and providing virtually inaudible noise suppression, without loss of high frequencies; increasing vocal presence and energy; and limiting, or smoothing out extremely-high signal peaks. Additionally, the MDX2600 features an integrated Dynamic Enhancer, De-Esser, Low-Contour filter and our revolutionary, switchable Tube simulation – for the extra warmth and transparency of classic tube circuitry. Put simply, the MDX2600 can do amazing things for your vocals or instruments – providing virtually everything you need for studio-quality dynamics processing!

Audio Dynamics Toolkit
THere are just a few of the MDX2600s outstanding capabilities:
Switchable IKA (Interactive Knee Adaptation) provides program-adaptive compression, combining all the advantages of both hard and soft-knee compression
IGC (Interactive Gain Control) combines clipper and program limiter for reliable, inaudible protection against signal peaks
Enhancer lets you emphasize the Bass, Midrange and Hi output at selectable frequencies for maximum punch, clarity and detail without raising overall volume
Tube Simulation provides the extra warmth and transparency of classic tube circuitry, creating a sound rich in harmonic content
De-Esser must-have tool with switchable male/female voice recognition for reducing sibilance, while preserving natural voice timbre often used to enhance upper-mid, to high-frequency smoothness in vocals, drum overheads, strings, etc.
Side Chain allows insertion of graphic/parametric EQ to reduce specific frequencies also often used to tighten up tracks using an internal or external signal to trigger compression, or gating of signal being processed (ex. using bass guitar signal to un-gate kick drum)
Stereo Couple links both channels, allowing Channel 1 dials and switches to provide dynamics control over both channels (true stereo processing)

Revolutionary Tube Simulation
The secret behind the COMPOSER PRO-XL MDX2600’s incredible sound is our Tube Modeling processor, which exudes the very essence of tube and compression. This amazing circuitry accurately emulates the performance characteristics of highly sought-after classic tube compressors, creating a sound that is so rich in harmonic content – you’ll wonder where we hid the tubes!
Specification
Audio Inputs
Type |
XLR and 1/4" TRS connectors, servo-balanced |
Impedance | |
+4 dBu |
50 kΩ balanced, 50 kΩ unbalalanced @ 1 kHz |
-10 dBV |
50 kΩ balanced, 100 kΩ unbalanced @ 1 kHz |
Operating Level |
+4 dBu / -10 dBV, switchable |
Max. input level |
+22 dBu, balanced and unbalanced |
CMRR |
Typically 60 dB @ 1 kHz |
Audio Outputs
Type |
XLR and 1/4" TRS connectors, servo-balanced |
Impedance |
100 Ω balanced, 50 Ω unbalanced @ 1 kHz |
Max. output level |
+21 dBu, balanced and unbalanced |
Sidechain Inputs
Type |
1/4" TS connector, unbalanced |
Impedance |
10 kΩ |
Max. input level |
+20 dBu |
Sidechain Outputs
Type |
1/4" TS connector, unbalanced |
Impedance |
50 Ω |
Max. output level |
+21 dBu |
System Specifications
Frequency range |
10 Hz to 70 kHz, +0/-3 dB |
S/N ratio |
115 dB, unweighted |
THD |
0.02% typ. @ +4 dBu, 1 kHz, unity gain |
Crosstalk |
-90 dB @ 1 kHz |
Expander / Gate Section
Type |
IRC (Interactive Ratio Control) expander |
Threshold |
OFF to +10 dB, variable |
Ratio |
1:1 to 1:8, variable |
Attack |
< 1 msec / 50 dB, program-dependent |
Release |
SLOW: 100 msec/1 dB FAST: 100 msec/100 dB, variable |
Compressor Section
Type |
IKA (Interactive Knee Adaptation) compressor |
Threshold |
-40 to +20 dB, variable |
Ratio |
1:1 to ∞:1, variable |
Attack / release |
Manual or automatic, variable |
Manual attack time |
0.3 msec/20 dB to 300 msec/20 dB, variable |
Manual release time |
0.05 sec/20 dB to 5 sec/20 dB, variable |
Auto characteristic |
Wave adaptive compressor |
Auto attack time |
Typically 15 msec for 10 dB, 5 msec for 20 dB, 3 msec for 30 dB |
Auto release time |
Typically 125 dB/sec, program-dependent |
Output |
-20 to +20 dB, variable |
Peak Limiter Section
Type |
IGC (Interactive Gain Control) peak limiter |
Level |
0 dB to OFF (+21 dBu), variable |
Level 1 limiter type |
Clipper |
Attack |
“Zero” |
Release |
“Zero” |
Level 2 limiter type |
Program limiter |
Attack |
Typically <5 msec, program-dependent |
Release |
Typically 20 dB/sec, program-dependent |
Dynamic Enhancer Section
Type |
IDE (Interactive Dynamic Enhancer) |
Filter frequency |
2.5 kHz (lower cut-off frequency) |
Characteristic |
High-pass filter (6 dB/oct.) |
Boost |
Max. 28 dB @ 7.5 kHz |
De-Esser Section
Type |
VAD (Voice-Adaptive De-Esser) |
Filter Frequencies |
8.6 kHz (Female), 7.5 kHz (Male) |
Filter bandwidth |
Program-dependent |
Level reduction |
Max. 15 dB |
Power Supply, Voltage, Current Consumption
Switch mode power supply |
Autorange, 100-240 V~ 50/60 Hz |
Power consumption |
15 W |
Mains connector |
Standard IEC receptacle |
