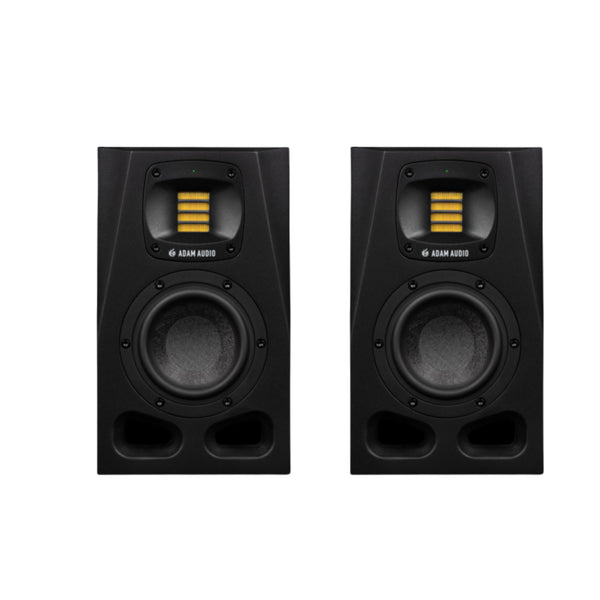

Designed for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor.
Designed for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor.
QUALITY COMPACTED

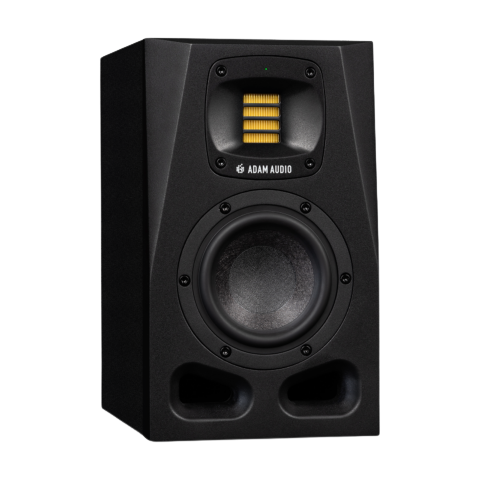

The A4V is a two-way speaker incorporating a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibers as other A Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space.
With a frequency range of 52 Hz to 45 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups.
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 4'' Woofer (Multi-Layer Mineral)
- Cumulated Amp. Power Peak: 130 W
- Frequency Response @ -6 dB: 52 Hz - 45 kHz
- Maximum SPL per speaker at 1 m: 100 dB SPL
TECHNICAL DATA
View the specifications of the ADAM Audio A4V by clicking each drop-down section.
General Data

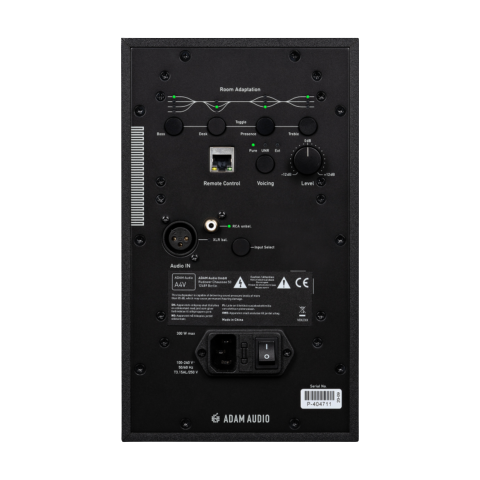

- Display: Front panel multi-color LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 5.8 kg (12 lbs 13 oz)
- Dimensions (Height x Width x Depth): 268 mm x 158 mm x 220 mm (10 1/2″ x 6 1/4″ x 8 5/8“)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A4V loudspeaker, power cable, Quick Start Guide
MEASUREMENT DATA
We are going to publish the measurement data for the ADAM Audio A4V very soon. Stay tuned!
