Hanging cardioid condenser
An easy job

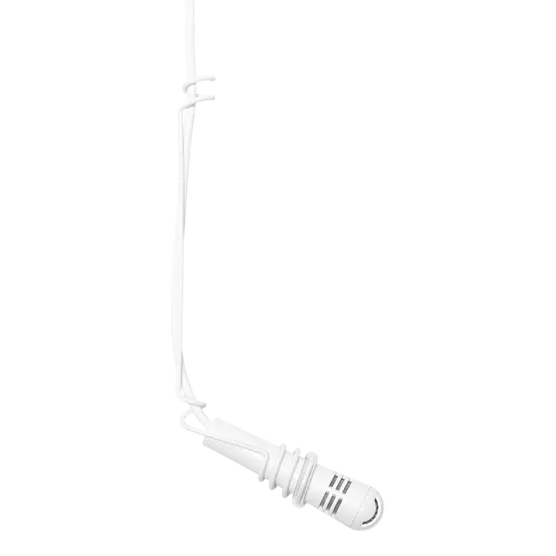

The CHM99, part of the 99ers Series, is a hanging microphone module with cardioid polar pattern, used to record music or speech in houses of worship, conference rooms or on theater stages. The CHM99 is available in black or white.
A 10m (33ft) special cable that is treated specially to reduce twisting to a minimum and a spring steel hanging clamp for precise microphone alignment keeps the microphone securely in its position. The attached phantom power adapter connects to any standard mixer input with 9V to 52V power supply.
General Specifications
Audio frequency bandwidth70 - 18000 Hz
Equivalent noise level21 dB-A
Sensitivity18 mV/Pa
Signal to Noise73 dB-A
Electrical impedance600 Ohms
Recommended load impedance2000 Ohms
Polar PatternCardioid
Dimensions
Height55 mm
Diameter13.5 mm
Net Weight20 g
Design
Finishmatte black or white
Audio Output
TypeBalanced XLR
GenderMale
Contacts3-pin
Powering Interface
Voltage9 to 52 V
Current3 mA
Application
ConferencingYes
PresentationYes
Device
Gooseneck MicrophoneYes
