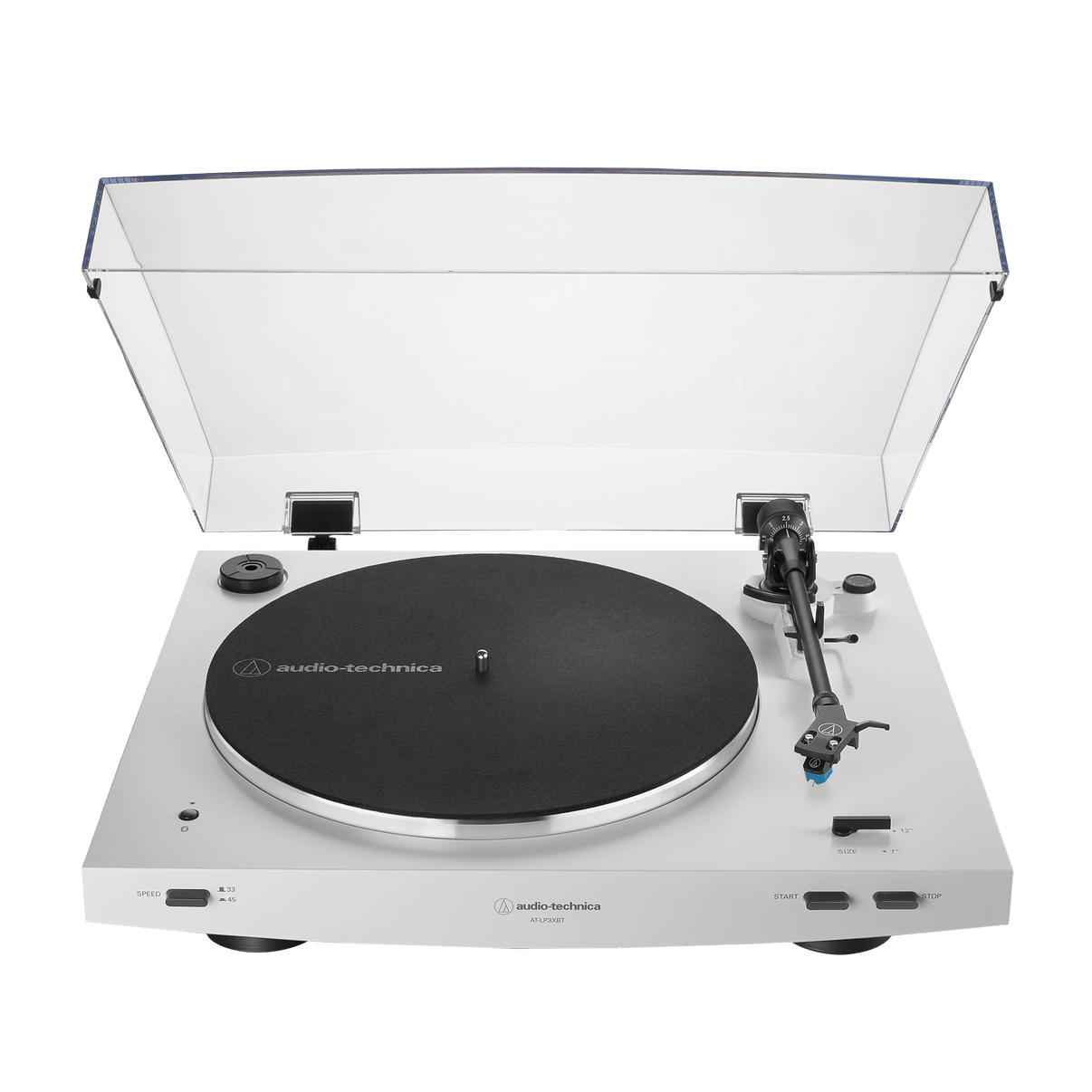

Automatic Belt-Drive Turntable (Wireless & Analog)
High-Fidelity Audio
Refine Your Sound
Style and Substance
What’s the Difference?
The LP3XBT is based on the AT-LP3, but incorporates a host of exciting new features and capabilities including:
- Bluetooth® connection
- High-quality Qualcomm® aptX™ audio codec
- The AT-VM95C cartridge, which is compatible with any of Audio-Technica‘s VM95 Series replacement styli
- An external AC adapter, which handles the AC/DC conversion outside of the chassis, reducing noise in the signal chain to produce crystal clear audio
The LP3XBT is the ideal turntable for fans of the LP3 looking to bring the convenience of Bluetooth® listening to their setup, giving you the same rich sound experience with enhanced
What’s the Difference?
A Passion for Listening
60 Years of Analogue Audio
Audio-Technica has developed cartridge and turntable technology for over 60 years. We are passionate about the art of analogue listening, and we are proud to produce some of the most critically acclaimed and popular audio products in the world.
Our Story
60 Years of Analogue Audio
Audio-Technica has developed cartridge and turntable technology for over 60 years. We are passionate about the art of analogue listening, and we are proud to produce some of the most critically acclaimed and popular audio products in the world.
Features
Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
High-fidelity audio with Bluetooth wireless technology
Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
Compatible with the high-quality Qualcomm® aptX™ audio codec
Balanced straight tonearm with hydraulically damped lift control and rest
AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Includes the AT-HS3 universal headshell
Built-in switchable phono/line pre-amplifier with detachable dual RCA output cable with grounding wire
Anti-resonance, die-cast aluminum platter with felt mat
Damped base construction for reduced low-frequency feedback coloration
Included Accessories: detachable RCA output cable (Dual RCA male to dual RCA male with ground), 45 RPM adapter, removable hinged dust cover, and detachable power cable
Specifications
| Turntable | |
|---|---|
| Type | Belt-drive, fully automatic operation |
| Motor | DC motor |
| Drive Method | Belt drive |
| Speeds | 33-1/3 RPM, 45 RPM |
| Turntable Platter | Die-cast aluminium |
| Wow and Flutter | < 0.2 % WRMS (33 RPM) at 3 kHz |
| Signal-to-Noise Ratio | > 60 dB |
| Output Level | PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 252 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
| Power Supply Requirements | 100 to 240 V, 50/60 Hz, 0.6 A Max |
| Power Consumption | 2 W |
| Dimensions | 435.6mm (17") ×374 mm (15 ") ×128 mm (5.0") (W × D × H) |
| Weight | 5.0 kg (11 lbs) |
| Accessories Included | ・Dust cover ・Felt mat ・Platter (with drive belt) ・Dust cover hinges ・Counterweight ・Headshell (AT-HS3 BK) with VM stereo cartridge (AT-VM95C) ・45-RPM adapter ・RCA audio cable (Approx. 1.0 m (3.3')) ・AC adapter (Approx. 1.5 m (4.9')) |
| Replacement Stylus | AT-VM95 (sold separately) |
| Replacement Headshell | AT-HS3 BK (sold separately) |
| Replacement Belt | AT-LP3XBT exclusive belt (sold separately) |
| Communication System | Bluetooth version 5.2 |
| Frequency Band | 2.402 GHz to 2.480 GHz |
| Maximum RF Output | 2.5 mW EIRP |
| Maximum Communication Range | Line of sight - approx. 10 m (33') |
| Modulation Method | GFSK, Pi/4DQPSK, 8DPSK |
| Compatible Bluetooth Profile | A2DP |
| Support Codec | Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ |
