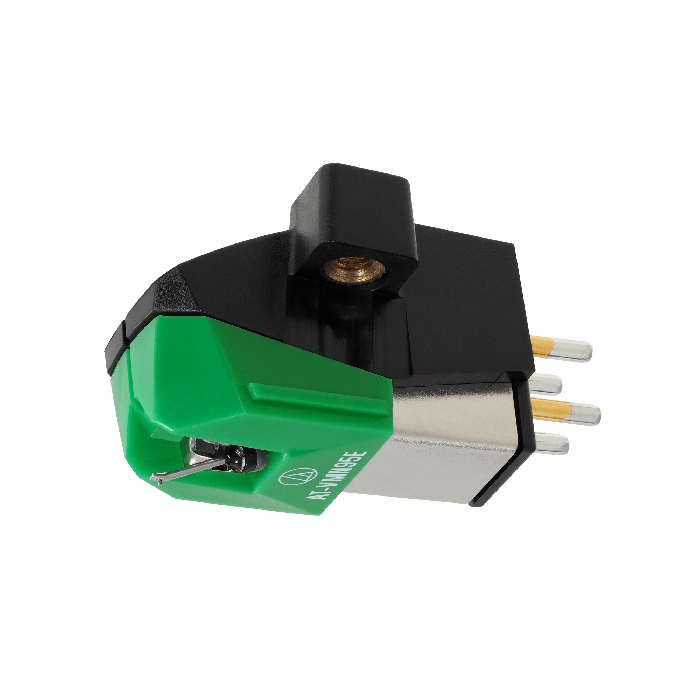

Audio Technica AT-VM95E - Dual Moving Magnet Cartridge

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

• VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
• Aluminum cantilever
• Specially wound coils increase output voltage
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
• Compatible with any AT-VMN95 replacement stylus

Specifications

Cartridge & Stylus
Frequency Response    20-22,000 Hz
Channel Separation    20 (dB at 1 kHz)
Vertical Tracking Angle    23°
Vertical Tracking Force    1.8-2.2 g (2.0 g standard)
Stylus Construction    Bonded round shank
Recommended Load Impedance    47,000 ohms
Coil Impedance    3.3 k ohms (1 kHz)
DC Resistance    485 ohms
Coil Inductance    550 mH (1 kHz)
Output Voltage    4.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance    2.0 dB (1 kHz)
Stylus Shape    0.3 x 0.7 mil elliptical
Cantilever    Aluminum pipe
Static Compliance    17 x 10 – 6 cm / dyne
Dynamic Compliance    7 x 10 – 6 cm / dyne (100 Hz)
Mounting    Half-inch
Cartridge Weight    6.1g
Dimensions    17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Accessories Included    Two 11 mm installation screws, two 8 mm installation screws, two washers
Model    AT-VM95E
Mounting Feature    Half-inch mount
Recommended Load Capacitance    100 to 200 pF
Replacement Stylus    AT-VMN95E
Stylus Size    0.3 x 0.7 mil
Type    VM Stereo Dual Magnet
Weight    6.1 g (0.22 oz)
Wire Used for Coil    T.P. Copper
