AUDIOCENTER EA515
Product Overview

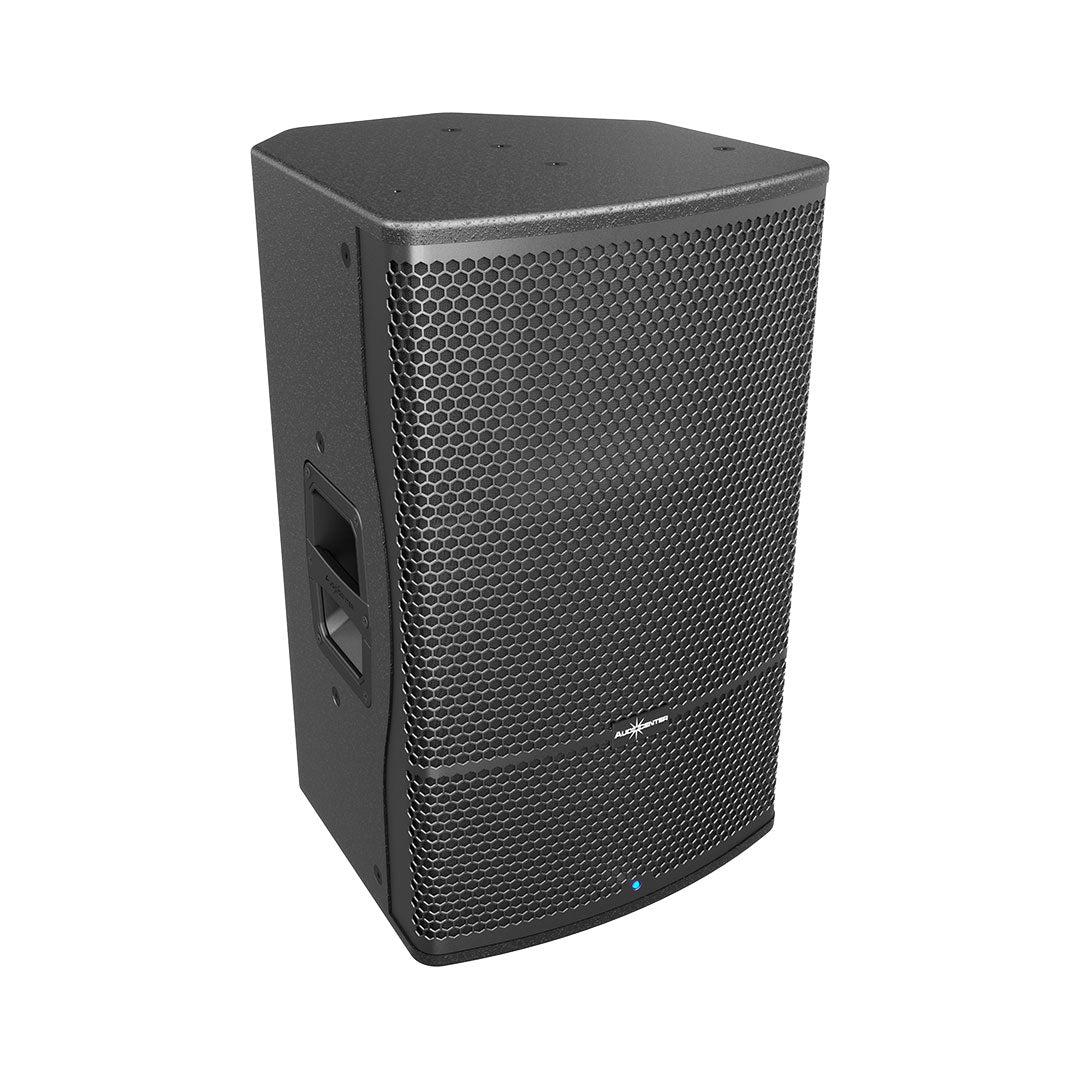

EA515 active DSP-controlled full range loudspeaker
EA515 is a multi usage plug & play active speaker with very high SPL, dynamic sound performance and fashion outlook. EA515 can work as PA speaker, and also can work as monitor, front fill, side fill, delay, etc. EA5 series targets at retail & wholesale market and mid-level installation & touring market.
Two combo inputs (2-way XLR and Mono jack 6.35) are available in EA515. CH A input can be switched between line input or microphone input. Besides, there is a RCA port for other sound resources like MP3, CD player, etc. The three different audio sources can be parallel output with one-way XRL after mixed internally, and then sent to different speakers for sound distribution.
EA515 can be installed either horizontally or vertically by steel wire or U bracket. Also, it can be ground standing by coupling bar or three-feet stand. The double mount is 0°/10°adjustable by just pushing the button. Various accessories are offered for EA515 to meet different kinds of installs.
|
Type |
Active DSP-controlled full range loudspeaker |
|
Frequency Response(-6dB anechoic chamber) |
40Hz-20KHz |
|
Maximum Calculated SPL/1M |
136dB |
|
LF Driver |
Customized Audiocenter driver, 3” voice coil |
|
HF Driver |
Customized Beyma driver, 1.0” exit, 1.75” voice coil |
|
Horizontal Coverage Angle(Symmetrical) |
60° |
|
Vertical Coverage Angle(Symmetrical) |
40° |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power(Peak) |
2000W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20KHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Cooling System |
Cooling with fans, air convection |
|
DSP |
|
|
Processor |
96KHz signal sampling frequency, 24bit precision |
|
Presets |
MAIN, F/Monitor, W/SUB |
|
Crossover |
Controlled by DSP |
|
Output / Input |
|
|
Signal Input |
2×NEUTRIK® female XLR, Mono jack 6.35, 1×RCA |
|
Signal Output |
2×NEUTRIK® male XLR |
|
Power Input |
3 pin plug |
|
Working Voltage |
100V-130V/60Hz or 220V-240V/50Hz |
|
Cabinet |
|
|
Cabinet Material |
CNC made of excellent wood |
|
Cabinet Color |
Black is standard and default color. Consult with Audiocenter sales team for other customized colors |
|
Dimension(W×H×D) |
446×700×440mm |
|
Net Weight |
30.0Kg |
