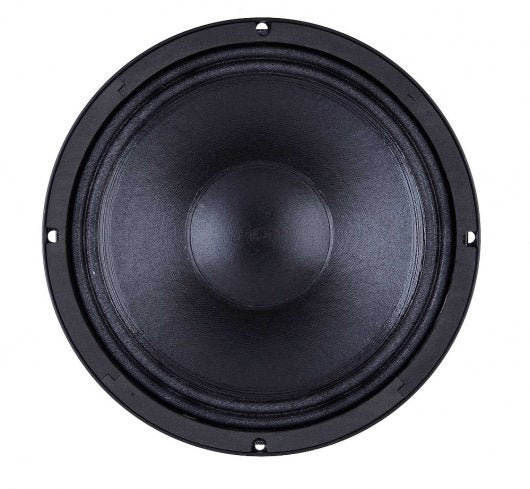

B&C 10FW64 - 10 Inch 500Watt 8-Ohm Loose Speaker

Name: B&C 10FW64 - 10 Inch 500Watt 8-Ohm Loose Speaker
Brand: B&C
SKU: B&C-10FW648OHM
Price: 3500.00 ZAR
Availability: InStock

Vendor: B&C Type: Misc

10FW64 10 inchWoofer8Ω Magnet Material Ferrite Voice Coil Diameter 64 mm (2.5 in) Continuous Power Handling 500 W Sensitivity 98 dB Features Specifications Parameters Design Mounting and Shipping Info Features 500 W continuous program power...

R 3,500.00

Tax Included.

💪 Hurry up! Low Stock

Shop Online With Nationwide Delivery

Pay & Collect In-Store At 166 Van Riebeeck Avenue Edenvale, Johannesburg, Gauteng, South Africa

Shop Online & Pickup In-Store

Payment & Security

Your payment information is processed securely. We do not store or have access to your credit card details.

View Full Details

10FW64

10 inch
Woofer
8Ω

Magnet Material

Ferrite

Voice Coil Diameter

64 mm (2.5 in)

Continuous Power Handling

500 W

Sensitivity

98 dB

Features

Specifications

Parameters

Design

Mounting and Shipping Info

Features

500 W continuous program power capacity
64 mm (2.5 in) aluminium voice coil
65 - 3000 Hz response
98 dB sensitivity

Specifications

Nominal Diameter

250 mm (10 in)

Minimum Impedance

6.4 Ω

Continuous Power Handling

500 W

Frequency Range

65 Hz - 3000 Hz

Winding Material

Aluminium

Winding Depth

14 mm (0.55 in)

Flux Density

1.25 T

Nominal Impedance

8 Ω

Nominal Power Handling

250 W

Sensitivity

98 dB

Voice Coil Diameter

64 mm (2.5 in)

Former Material

Glass Fibre

Magnetic Gap Depth

8 mm (0.31 in)

Woofer Cone Treatment

WP Waterproof Front Side

Parameters

63 Hz

Qes

0.25

Qts

0.23 320 cm² (50 in²)

Xmax

5 mm

Mms

34 g

0.9 mH

5 Ω

Qms

3.4

Vas

27 dm³ (0.95 ft³)

η0

2.6 %

Xvar

5.5 mm

16.4 Tm

EBP

252 Hz

Design

Surround Shape

Double Roll

Magnet Material

Ferrite

Pole Design

T-Pole

Recommended Enclosure

26 dm³ (0.92 ft³)

Cone Shape

Exponential

Spider

Single

Woofer Cone Treatment

WP Waterproof Front Side

Recommended Tuning

62 Hz

Mounting and Shipping Info

Overall Diameter

261 mm (10.3 in)

Baffle Cutout Diameter

233 mm (9.17 in)

Flange and Gasket Thickness

13 mm (0.5 in)

Net Weight

5.4 kg (11.9 lb)

Shipping Weight

6 kg (13.23 lb)

Bolt Circle Diameter

245 mm (9.6 in)

Depth

116 mm (4.6 in)

Air Volume Occupied by Driver

2.5 dm³ (0.09 ft³)

Shipping Units

1 pcs

Shipping Box

295x314x175 mm (11.61x12.36x6.89 in)

Service Kit

lf Recone Kit

RCK10FW648

Cone
Gasket
Centering Shims

B&C 10FW64 - 10 Inch 500Watt 8-Ohm Loose Speaker

10FW64

10 inchWoofer8Ω

Ferrite

64 mm (2.5 in)

500 W

98 dB

Features

Specifications

250 mm (10 in)

6.4 Ω

500 W

65 Hz - 3000 Hz

Aluminium

14 mm (0.55 in)

1.25 T

8 Ω

250 W

98 dB

64 mm (2.5 in)

Glass Fibre

8 mm (0.31 in)

WP Waterproof Front Side

Parameters

63 Hz

0.25

0.23

320 cm² (50 in²)

5 mm

34 g

0.9 mH

5 Ω

3.4

27 dm³ (0.95 ft³)

2.6 %

5.5 mm

16.4 Tm

252 Hz

Design

Double Roll

Ferrite

T-Pole

26 dm³ (0.92 ft³)

Exponential

Single

WP Waterproof Front Side

62 Hz

Mounting and Shipping Info

261 mm (10.3 in)

233 mm (9.17 in)

13 mm (0.5 in)

5.4 kg (11.9 lb)

6 kg (13.23 lb)

245 mm (9.6 in)

116 mm (4.6 in)

2.5 dm³ (0.09 ft³)

1 pcs

295x314x175 mm (11.61x12.36x6.89 in)

Service Kit

lf Recone Kit

RCK10FW648
